PS9122-F3-N-AX specifications -Ameya360 electronic components purchase network

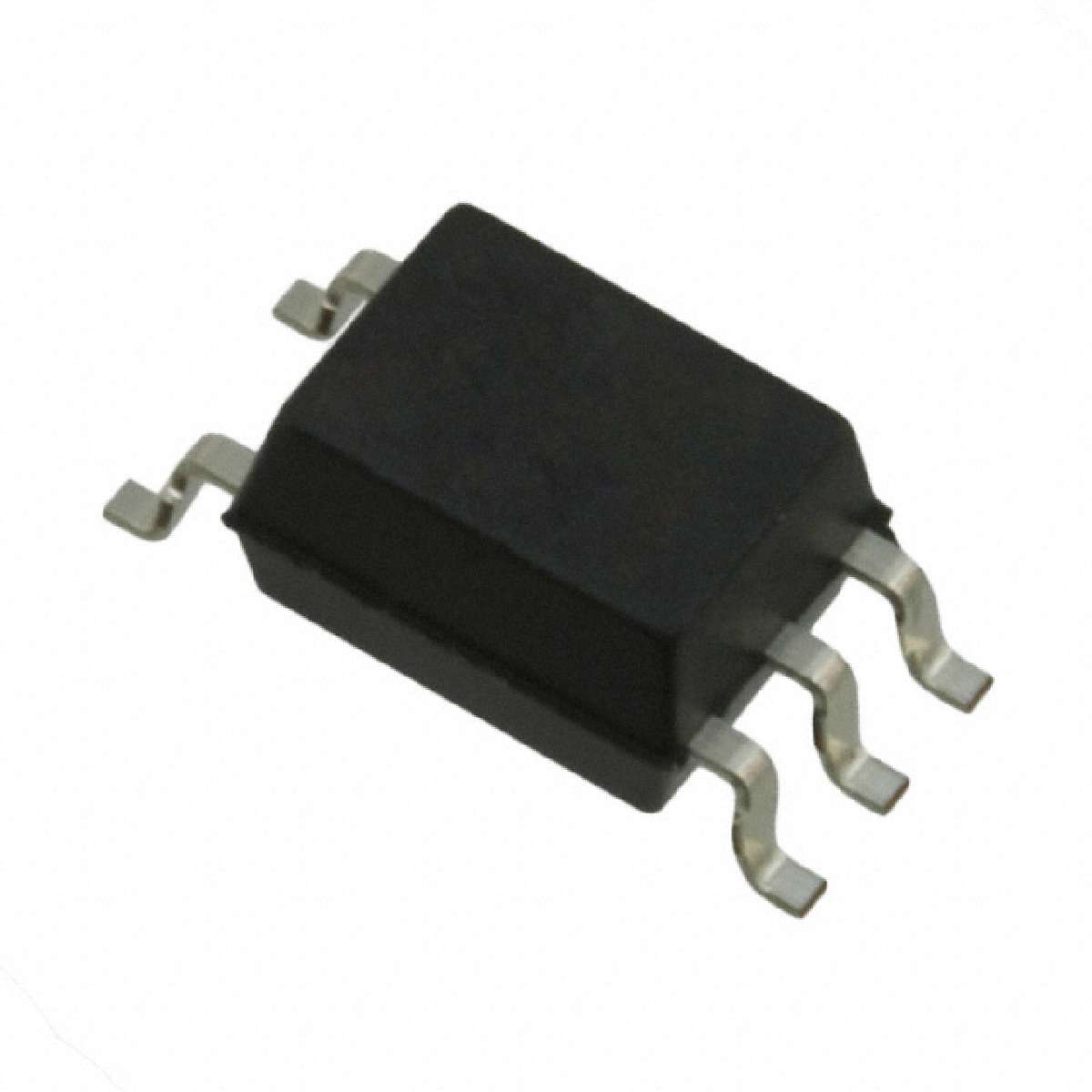

PS9122-F3-N-AX

ACTIVE 5-SO
Product description : OPTOISO 3.75KV OPN COLLECTOR 5SO
SPQ：2500
Datasheet : PS9122-F3-N-AX.pdf

Voltage - Isolation	3750Vrms
Data Rate	1Mbps
Rise / Fall Time (Typ)	60ns, 70ns
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	1/0
Current - Output / Channel	20mA
Standard Package	2,500
Number of Channels	1
Online Catalog	PS9122 Series
Series	NEPOC
Propagation Delay tpLH / tpHL (Max)	700ns, 500ns
Voltage - Supply	2.7 V ~ 3.6 V
Common Mode Transient Immunity (Min)	15kV/µs
Current - DC Forward (If) (Max)	25mA
Input Type	DC
Package / Case	6-SOIC (0.173", 4.40mm Width) 5 Leads
Supplier Device Package	5-SO
Packaging	Tape & Reel (TR)
Output Type	Open Collector
Voltage - Forward (Vf) (Typ)	1.6V
Family	Optoisolators - Logic Output
Operating Temperature	-40°C ~ 100°C

Datasheet： PS9122-F3-N-AX.pdf
