| 28-650000-11-RC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

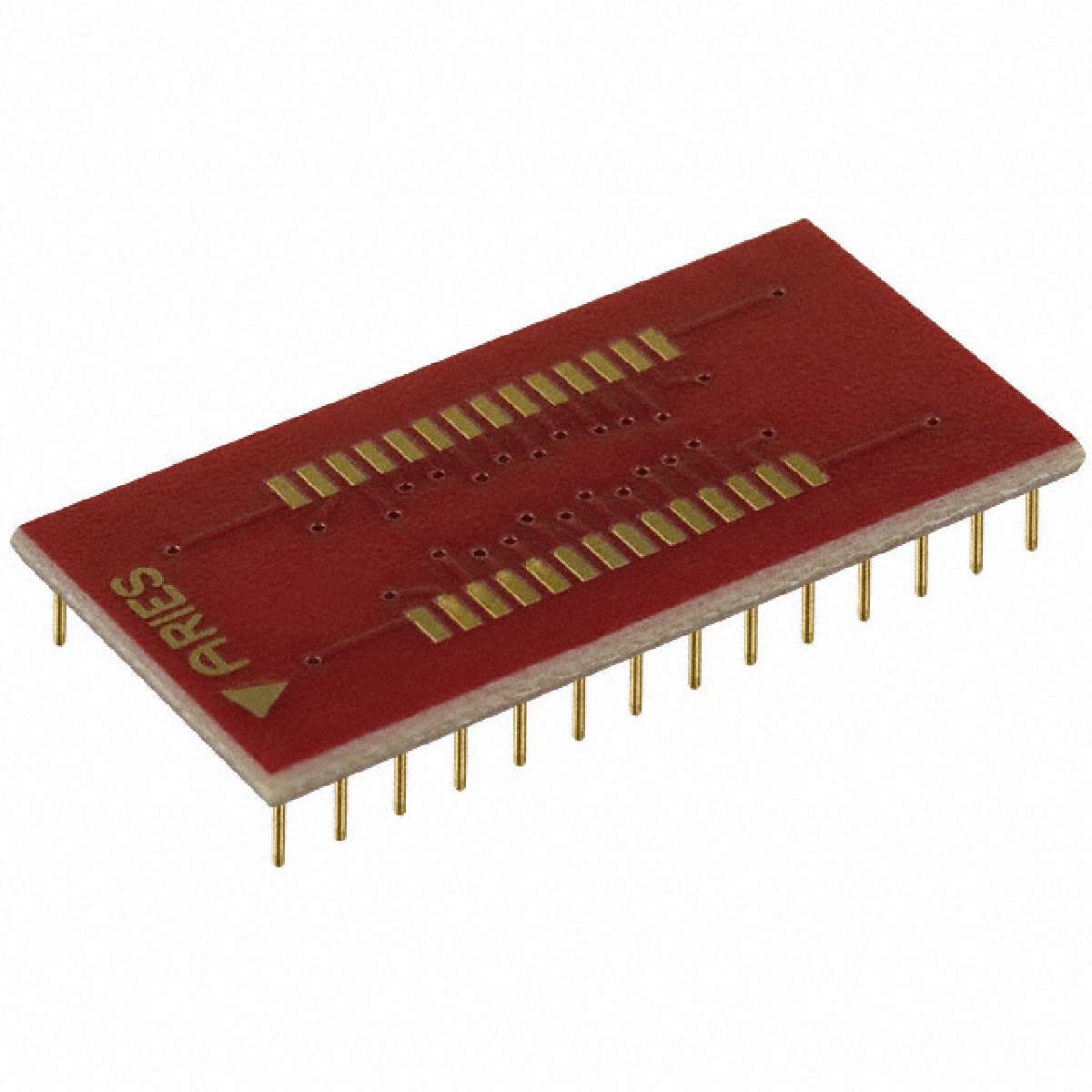

650000 Series 28 Pin 15.24mm Pitch DIP Socket Adapter
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder |
|---|---|
| Termination Post Length | 0.125" (3.18mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 10µin (0.25µm) |
| Manufacturer | Aries Electronics |
| Contact Finish - Mating | Gold |
| Series | Correct-A-Chip® 650000 |
| Family | Sockets for ICs, Transistors - Adapters |
| Convert From (Adapter End) | SOIC |
| ECCN | EAR99 |
| Pitch - Post | 0.100" (2.54mm) |
| Convert To (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing |
| Part Status | Active |
| Number of Pins | 28 |
| Category | Connectors, Interconnects |
| Contact Material - Post | Brass |
| Pitch - Mating | 0.050" (1.27mm) |
| Mounting Type | Through Hole |
| Board Material | FR4 Epoxy Glass |
