| 280390-1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

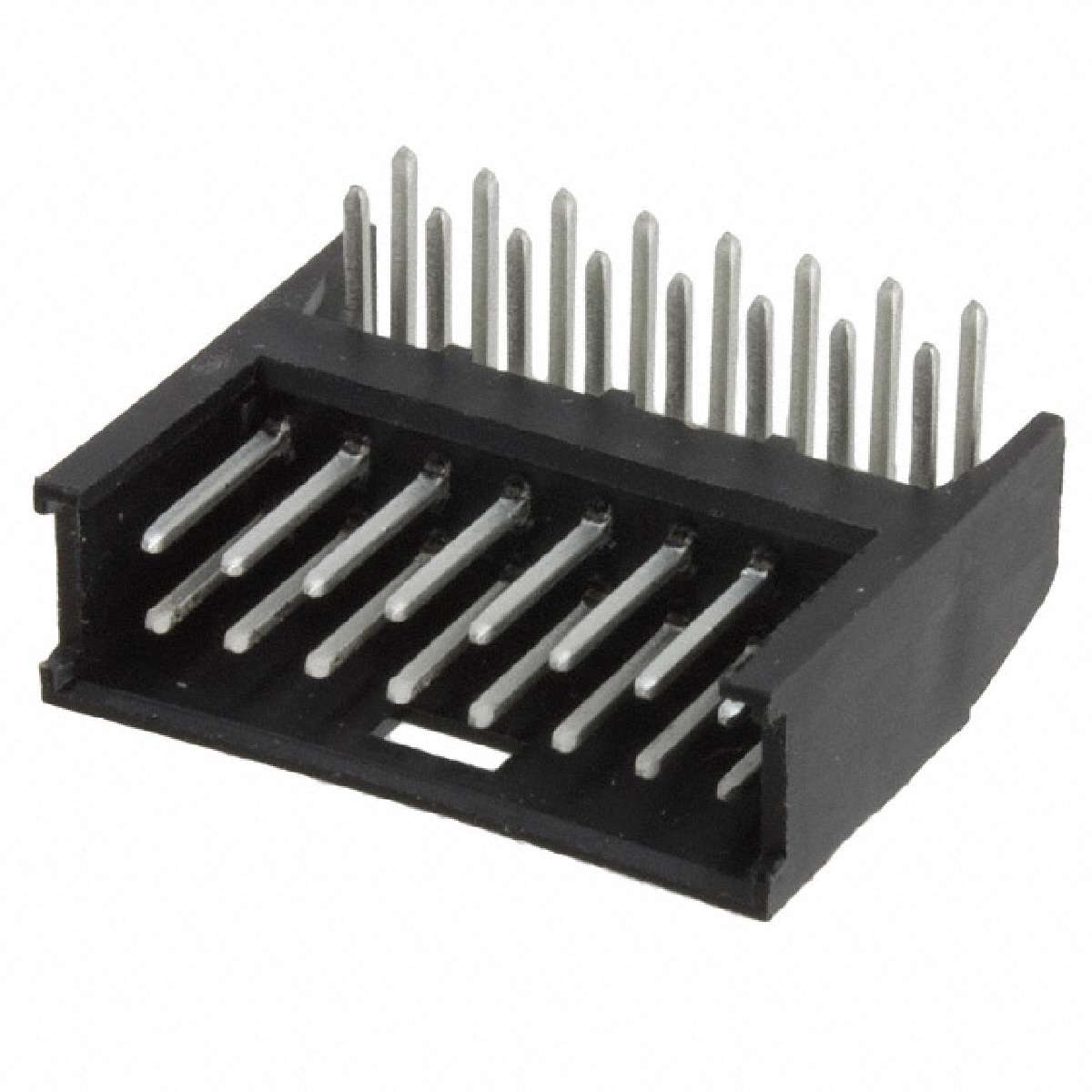

Socket; wire-board; male; AMPMODU MOD II; 2.54mm; PIN: 16; THT
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Bulk |
|---|---|
| Product: | Headers |
| Mating Post Length: | 6.6 mm |
| Tradename: | AMPMODU |
| Pitch: | 2.54 mm |
| Number of Rows: | 2 Row |
| Mounting Angle: | Right |
| Latching Type: | Detent Windows |
| Series: | AMPMODU MOD II |
| Brand: | TE Connectivity / AMP |
| Termination Style: | Through Hole |
| Product Category: | Headers & Wire Housings |
| Type: | Shrouded |
| Row Spacing: | 2.54 mm |
| Housing Material: | Thermoplastic |
| Operating Temperature Range: | - 55 C to + 105 C |
| Number of Positions: | 16 Position |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Termination Post Length: | 3.5 mm |
| Manufacturer: | TE Connectivity |
| Factory Pack Quantity: | 500 |
| RoHS: | Details |
| Flammability Rating: | UL 94 V-0 |
| Contact Gender: | Pin (Male) |
登录之后就可发表评论
Availability5Request Stock Notification
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.47965
￥12.289450023675982
| 130+ | $1.47965 |
|---|---|
| 250+ | $1.45005 |
| stock | 140 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/130 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.58057
￥13.127659971588821
| 500+ | $1.58057 |
|---|---|
| 1000+ | $1.51732 |
| 2000+ | $1.48702 |
| stock | 140 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/500 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.50982
￥12.540030041755823
| 10+ | $1.50982 |
|---|---|
| 130+ | $1.47965 |
| 250+ | $1.45005 |
| stock | 10 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/10 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.36732
￥19.662129951356619
See more prices
| 33+ | $2.36732 |
|---|---|
| 100+ | $2.11498 |
| 500+ | $1.76251 |
| 1000+ | $1.51063 |
| 5000+ | $1.33951 |
| 10000+ | $1.30929 |
| stock | 5371 | Update On 2022-11-30 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/33 | |
| Location | -- | |
| DateCode | 2239 |
