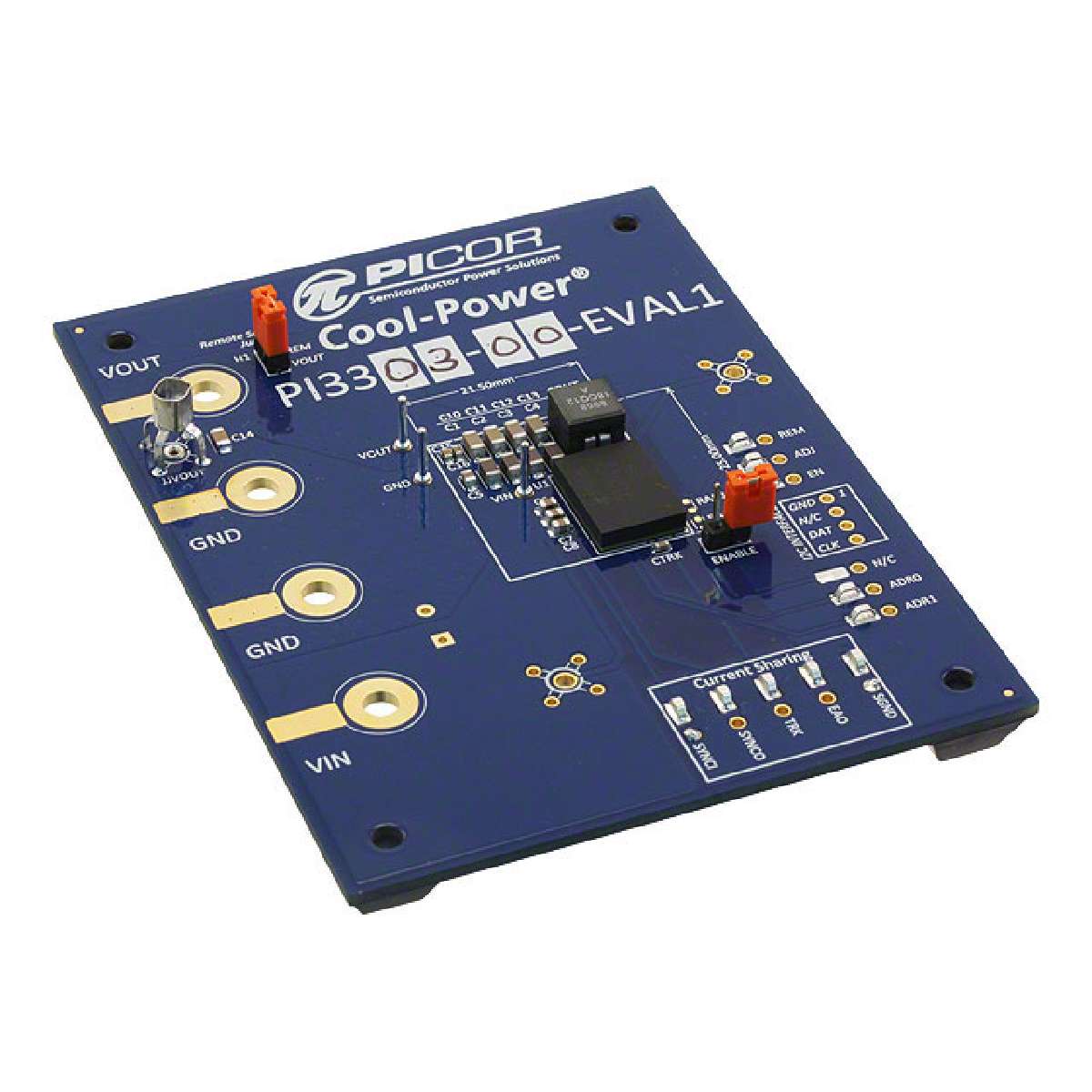

| PI3303-00-EVAL1 | ||
|---|---|---|
|
|
||
|
||
| Product description : Cool-Power Evaluation Board for PI3303-00 Series | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Mfg Application Notes | PI33xx White Paper |
|---|---|
| Regulator Topology | Buck |
| Current - Output | 8A |
| Voltage - Output | 12V |
| Product Training Modules | Cool-Power® ZVS Buck Regulator - point-of-load regulation |
| Online Catalog | PI33xx Series Evaluation Boards |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Frequency - Switching | 1.4MHz |
| ECCN | EAR99 |
| Board Type | Fully Populated |
| Voltage - Input | 15.5 V ~ 36 V |
| Standard Package | 1 |
| Supplied Contents | Board |
| Utilized IC / Part | PI3303-00 |
| Series | Picor® Cool-Power® |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
