| 2908-05WB-MG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

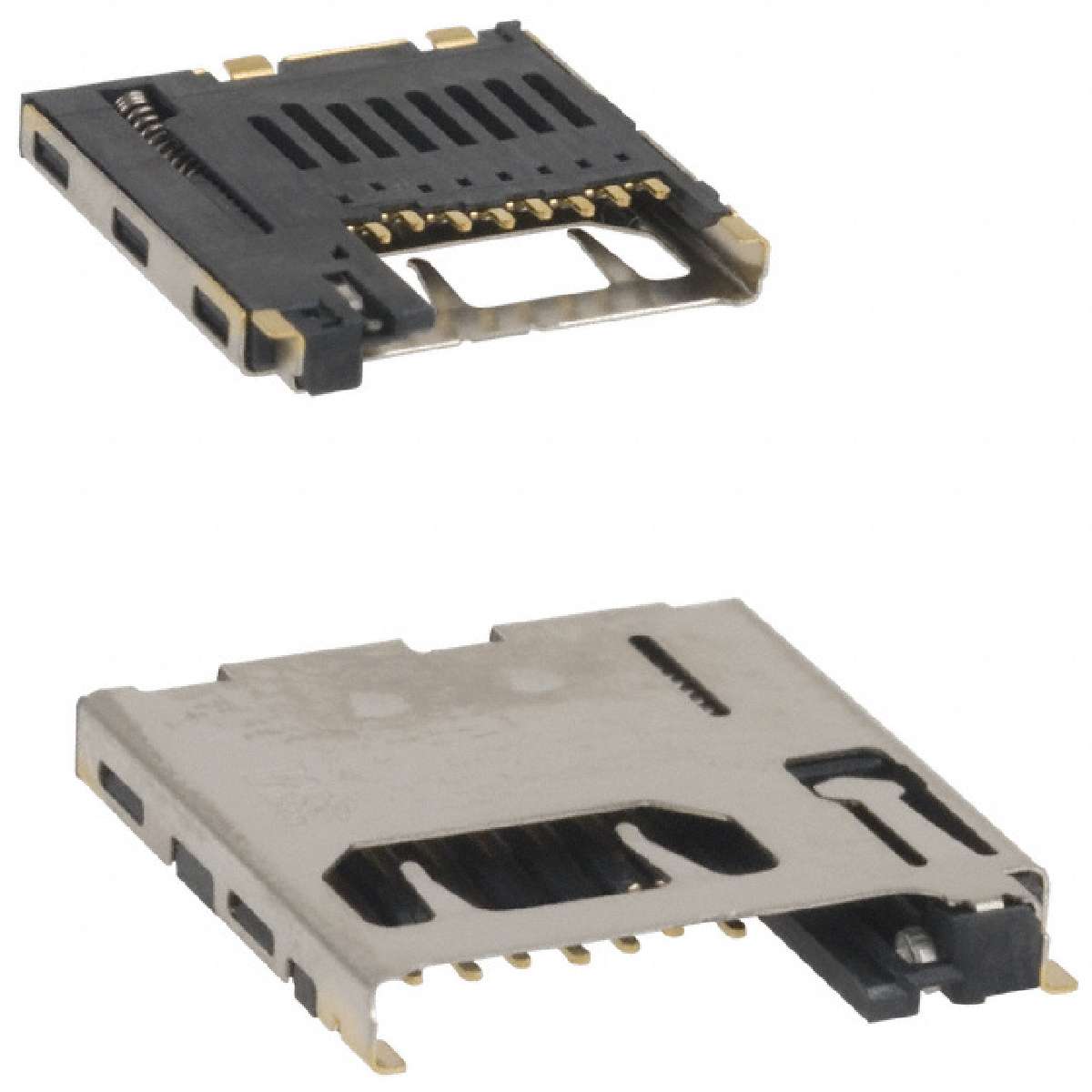

CARD CONNECTOR MICRO-SD
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Reel |
|---|---|
| Product: | Card Connectors |
| Features: | Low profile, card polarization, metal-shielded cover |
| Factory Pack Quantity: | 3000 |
| Brand: | 3M Electronic Solutions Division |
| Pitch: | 2.54 mm |
| Contact Material: | Copper Alloy |
| Flammability Rating: | UL 94 V-0 |
| Current Rating: | 500 mA |
| Contact Plating: | Gold |
| Orientation: | Right Angle |
| Manufacturer: | 3M |
| Card Type: | microSD |
| Part # Aliases: | 05111174537 XE004225126 |
| RoHS: | Details |
| Termination Style: | SMD |
| Product Category: | Memory Card Connectors |
| Number of Contacts: | 8 |
| Number of Rows: | 1 Row |
| 数据手册： |
|---|
