| 2N4398 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

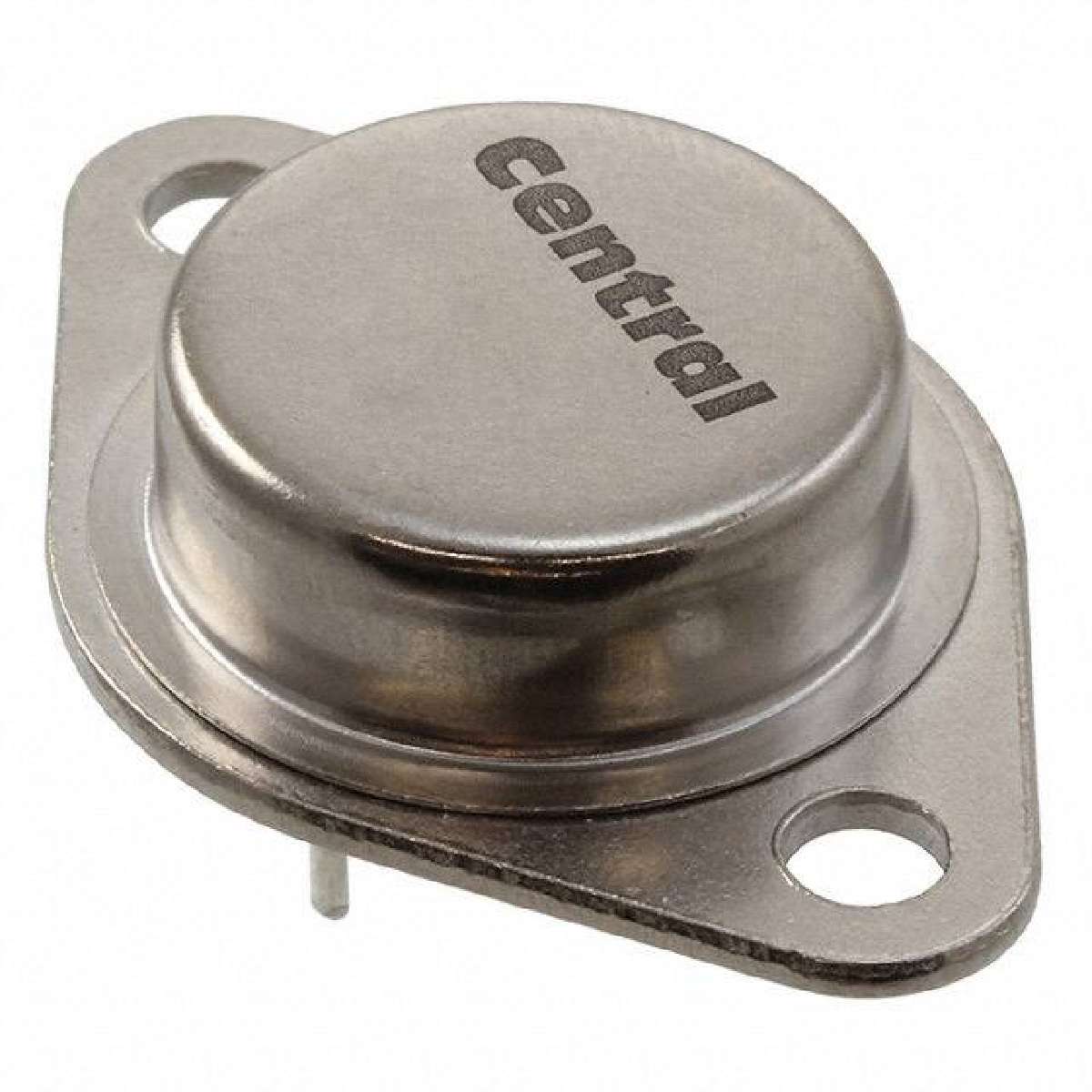

2N4398 Series 40 V 30 A PNP Through Hole Silicon Transistor - TO-3
|
||
| 标准包装：20 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Tube |
|---|---|
| Maximum DC Collector Current: | 30 A |
| Continuous Collector Current: | 10 A |
| Manufacturer: | Central Semiconductor |
| Pd - Power Dissipation: | 200 W |
| Factory Pack Quantity: | 20 |
| RoHS: | Details |
| Product Category: | Bipolar Transistors - BJT |
| Gain Bandwidth Product fT: | 4 MHz |
| Mounting Style: | Through Hole |
| Collector-Emitter Saturation Voltage: | 4 V |
| Collector- Base Voltage VCBO: | 40 V |
| DC Collector/Base Gain hfe Min: | 15 at 15 A |
| Series: | 2N4398 |
| Transistor Polarity: | PNP |
| Brand: | Central Semiconductor |
| Package / Case: | TO-3 |
| Collector- Emitter Voltage VCEO Max: | 40 V |
| Unit Weight: | 0.225789 oz |
| ECCN | EAR99 |
