| 2N4424 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

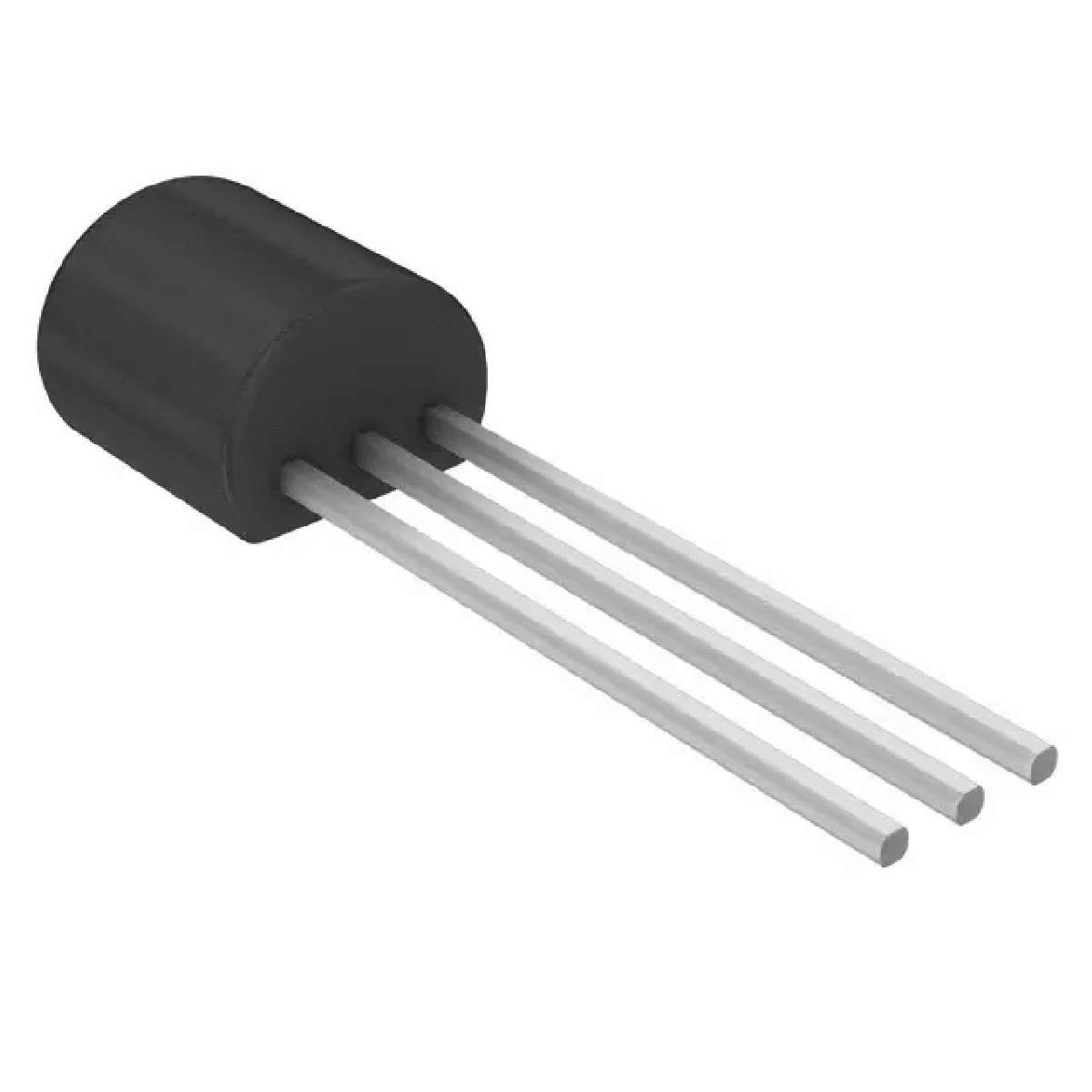

2N Series 40 V 500 mA NPN Through Hole Silicon Transistor - TO-92
|
||
| 标准包装：2500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 3mA, 50mA |
|---|---|
| Power - Max | 625mW |
| Supplier Device Package | TO-92 |
| Part Status | Active |
| Manufacturer | Central Semiconductor Corp |
| Family | Transistors - Bipolar (BJT) - Single |
| Current - Collector Cutoff (Max) | 30nA |
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 500mA |
| Category | Discrete Semiconductor Products |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Mounting Type | Through Hole |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 2mA, 4.5V |
| ECCN | EAR99 |
