2SC5646A-TL-H specifications -Ameya360 electronic components purchase network

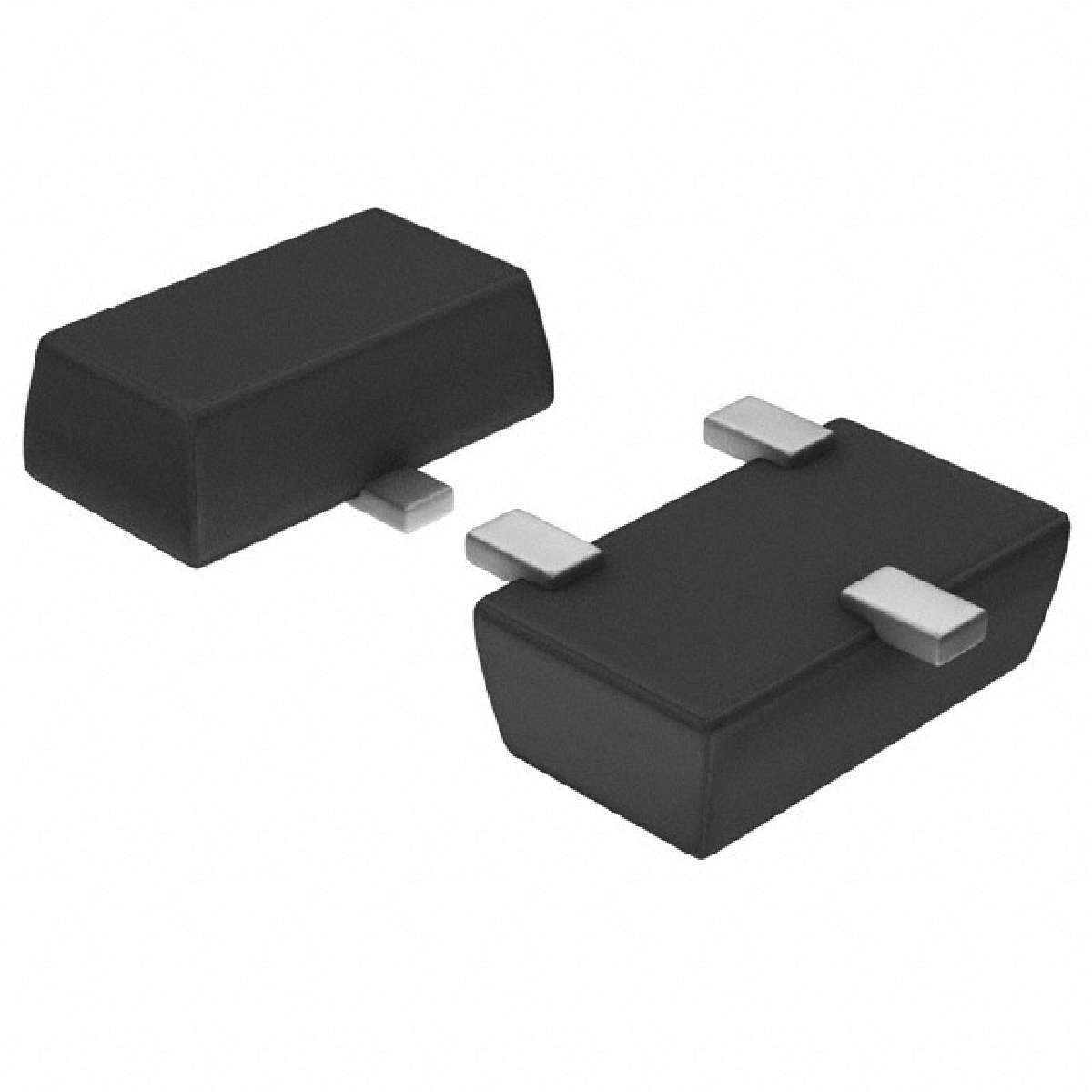

2SC5646A-TL-H

ACTIVE 3-SSFP
Product description : 2SC5646A-TL-H , NPN 射频双极晶体管, 30 mA, Vce=4 V, HFE:100, 330 MHz, 3针 SSFP封装
SPQ：8000
Datasheet : 2SC5646A-TL-H.pdf

Package / Case	SC-81
Noise Figure (dB Typ @ f)	1.5dB @ 2GHz
Gain	9.5dB ~ 10.5dB @ 2GHz
Supplier Device Package	3-SSFP
Part Status	Active
Manufacturer	ON Semiconductor
Family	Transistors - Bipolar (BJT) - RF
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 5mA, 1V
Frequency - Transition	10GHz ~ 12.5GHz
Power - Max	100mW
Transistor Type	NPN
Current - Collector (Ic) (Max)	30mA
Category	Discrete Semiconductor Products
Voltage - Collector Emitter Breakdown (Max)	4V
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)

Datasheet： 2SC5646A-TL-H.pdf
