| 30-601 RED | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

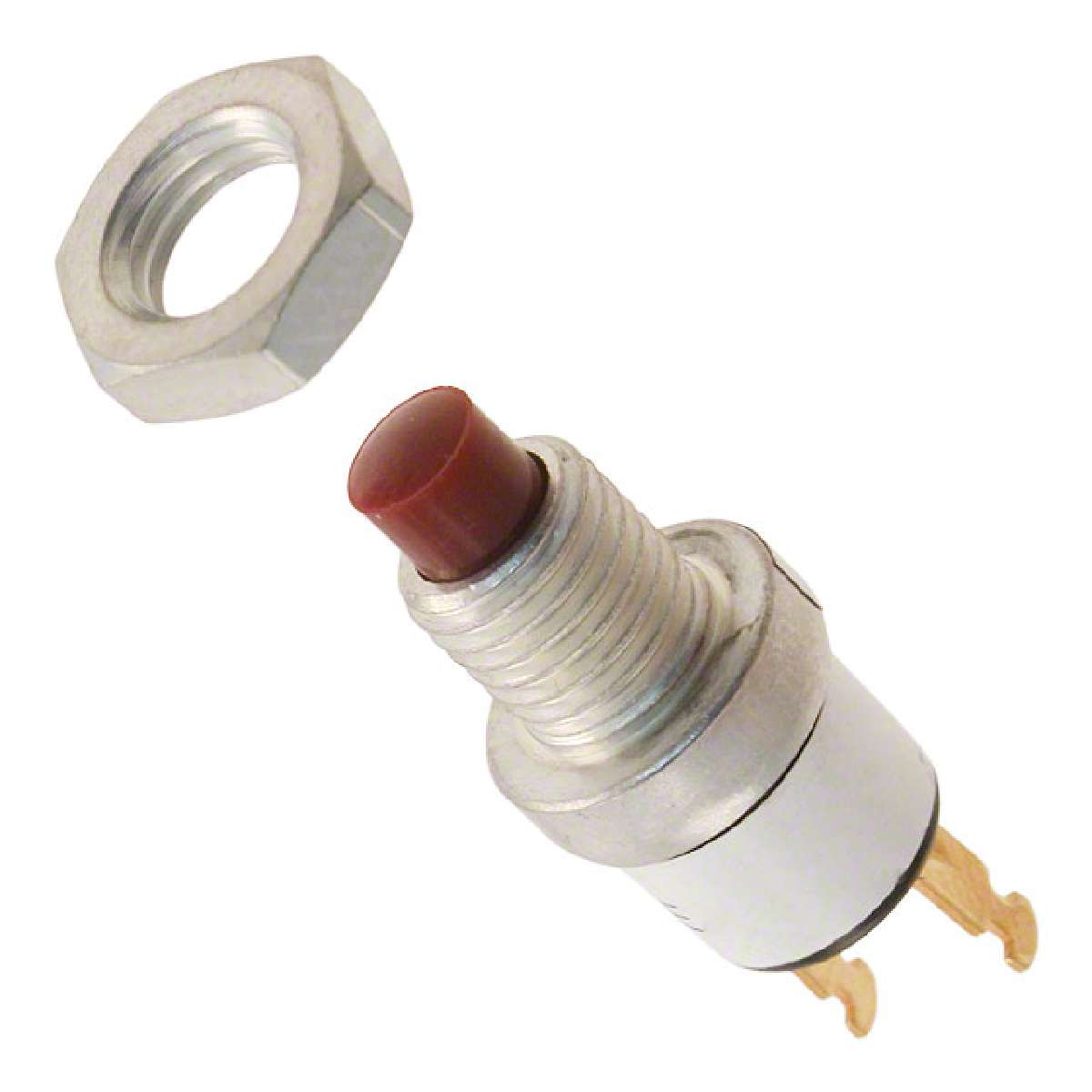

30 Series Momentary SPST Red Panel Mount Solder Lug Pushbutton Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Color: | Red |
|---|---|
| Cap Color: | Red |
| Packaging: | Bulk |
| Switch Function: | OFF - (ON) |
| Actuator: | Round |
| Voltage Rating DC: | 20 VDC |
| Contact Form: | SPST |
| Brand: | Grayhill |
| Termination Style: | Solder Lug |
| Current Rating: | 150 mA |
| Contact Plating: | Gold over Nickel |
| Life: | 1000000 Cycles |
| ECCN | EAR99 |
| Product: | Standard Switches |
| Width: | 9.53 mm |
| Housing Material: | Thermoset Plastic |
| Length: | 9.53 mm |
| Manufacturer: | Grayhill |
| Mounting Type: | Bushing |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Product Category: | Pushbutton Switches |
| Material: | Polycarbonate |
| Height: | 19.56 mm |
| Mounting Style: | Panel |
| 数据手册： |
|---|
