| EEU-EE2W100U | ||
|---|---|---|
|
|
||
|
||

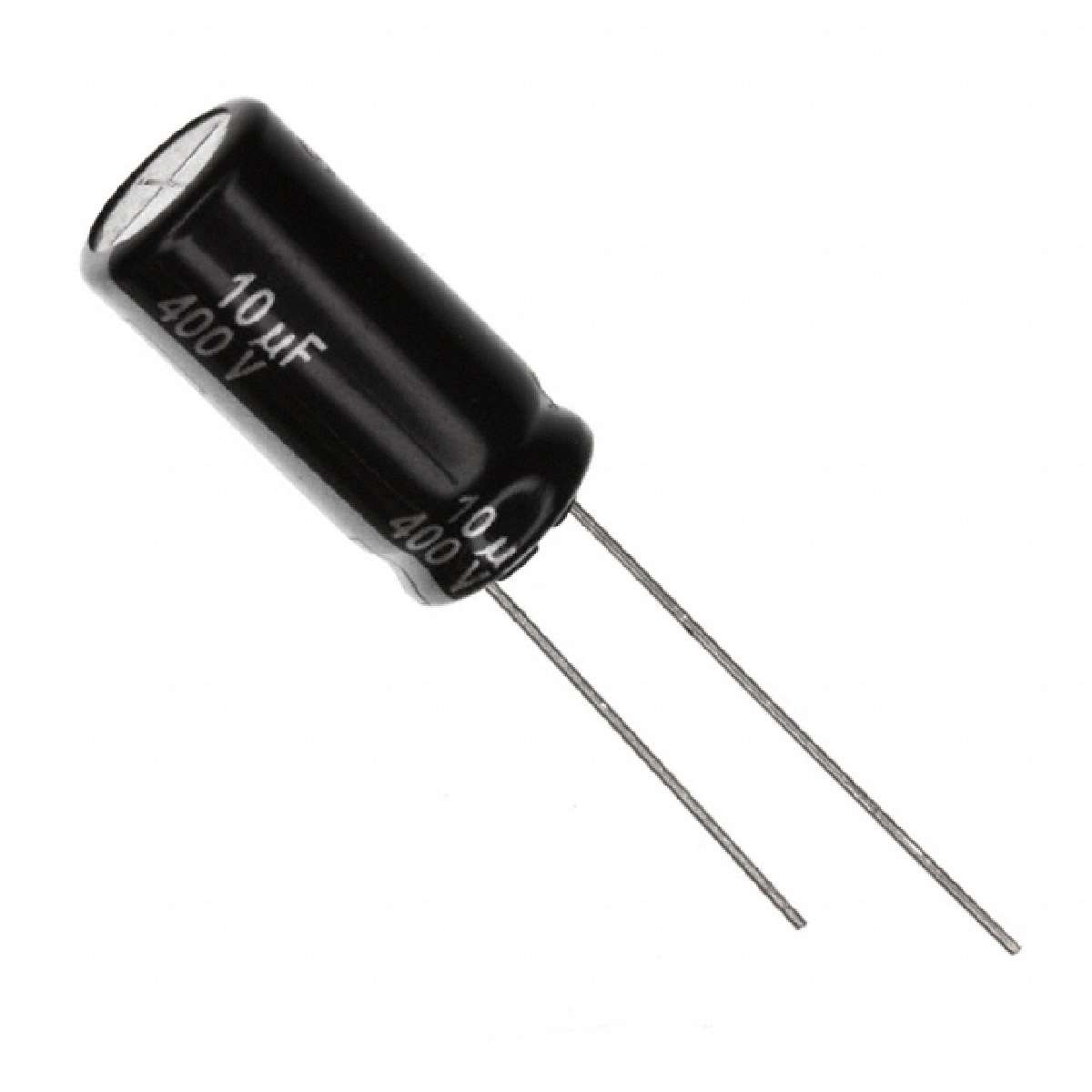

| Product description : EEU-EE Series 450 V 10 uF Ø 10 x 20 mm LS=5 mm 105 °C High Ripple Electrolytic | ||
| SPQ：200 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 450V |
|---|---|
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Applications | General Purpose |
| Packaging | Bulk |
| Capacitance | 10µF |
| Ripple Current | 330mA |
| Series | EE |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| RoHS | Lead free / RoHS Compliant |
| Tolerance | ±20% |
| Product Training Modules | LED Lighting Components |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Catalog Drawings | EE Series_20 x 0.6 EE Series_10 x 5.0 (2) |
| Online Catalog | EE Series |
| Family | Aluminum Capacitors |
| Operating Temperature | -25°C ~ 105°C |
