| OD6010-12HB01A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

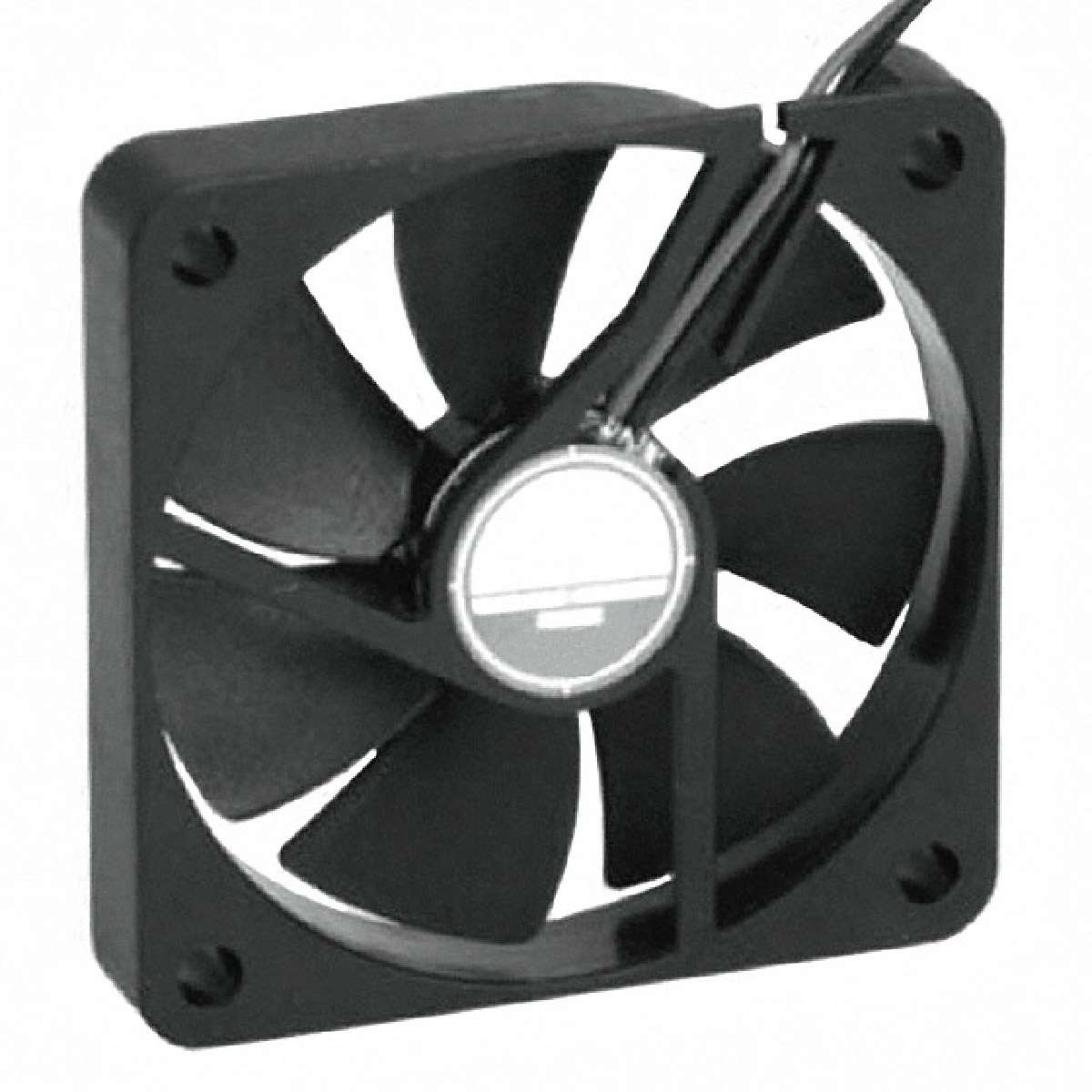

OD6010 Series 4600 RPM 60 x 60 x 10 mm 21 CFM 12 V Ball Bearing DC Fan
|
||
| 标准包装：80 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Size / Dimension | Square - 60mm L x 60mm H x 10mm W |
|---|---|
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Fan Type | Tubeaxial |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Features | Speed Sensor (Tach) |
| Series | OD6010 |
| ECCN | EAR99 |
| Other Related Documents | Standard Wire Colors For Fans |
| Bearing Type | Ball |
| Termination | 3 Wire Leads |
| Standard Package | 40 |
| Voltage - Rated | 12VDC |
| Family | DC Fans |
