| OD4028-12HB01A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

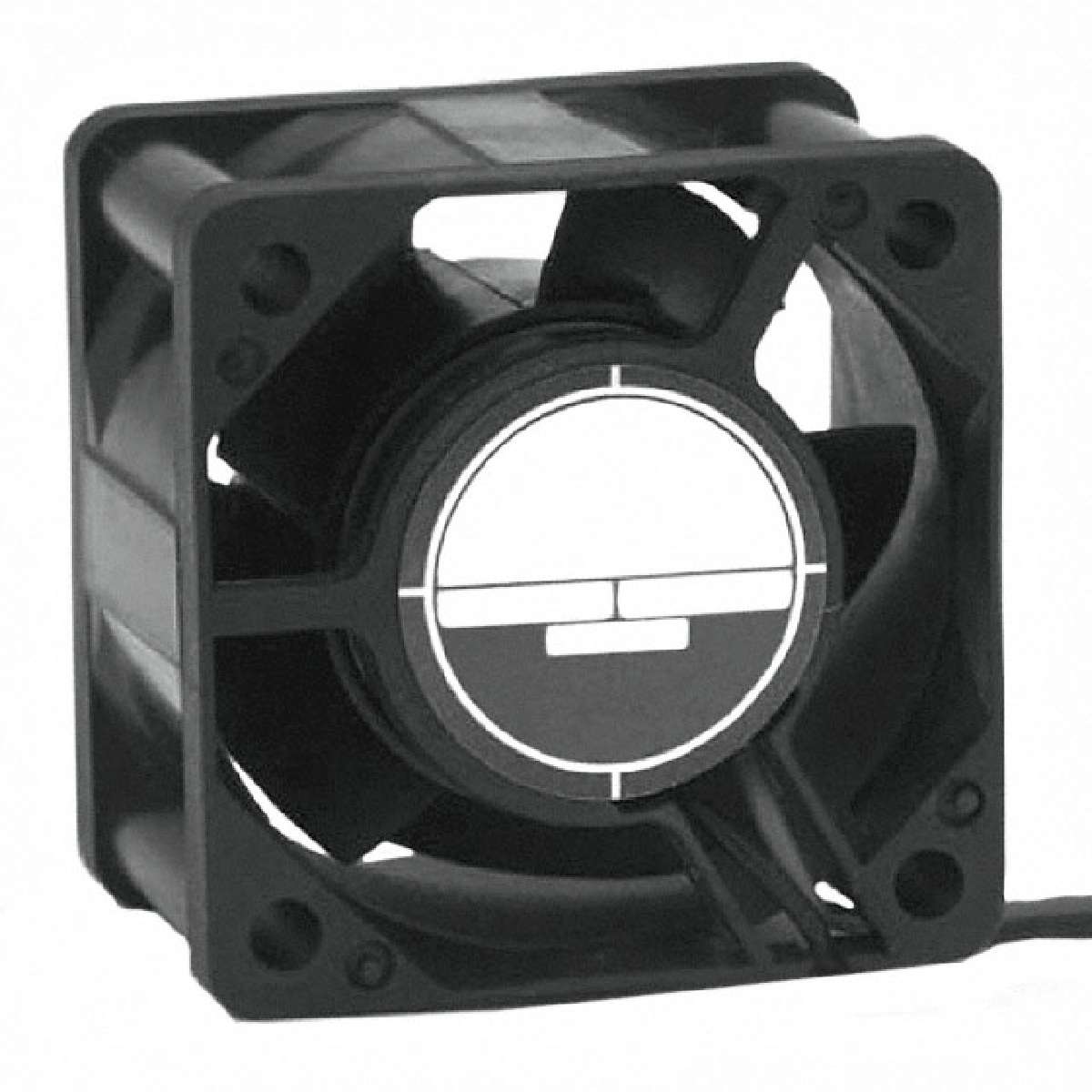

OD4028 Series 8800 RPM 40 x 40 x 28 mm 12 CFM 12 V Ball Bearing DC Fan
|
||
| 标准包装：20 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Size / Dimension | Square - 40mm L x 40mm H x 28mm W |
|---|---|
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Life Expectancy | 60000 hrs @ 45掳C |
| Fan Type | Tubeaxial |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Standard Package | 40 |
| Voltage Range | 7 ~ 14VDC |
| Noise | 37 dB |
| Family | DC Fans |
| Operating Temperature | -4 ~ 176掳F (-20 ~ 80掳C) |
| ECCN | EAR99 |
| Other Related Documents | Standard Wire Colors For Fans |
| Air Flow | 12.0 CFM (0.340m鲁/min) |
| Bearing Type | Ball |
| Termination | 3 Wire Leads |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Features | Speed Sensor (Tach) |
| Voltage - Rated | 12VDC |
| Series | OD4028 |
| RPM | 8800 RPM |
| Current Rating | 0.200A |
