| OD172SAPL-12HB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

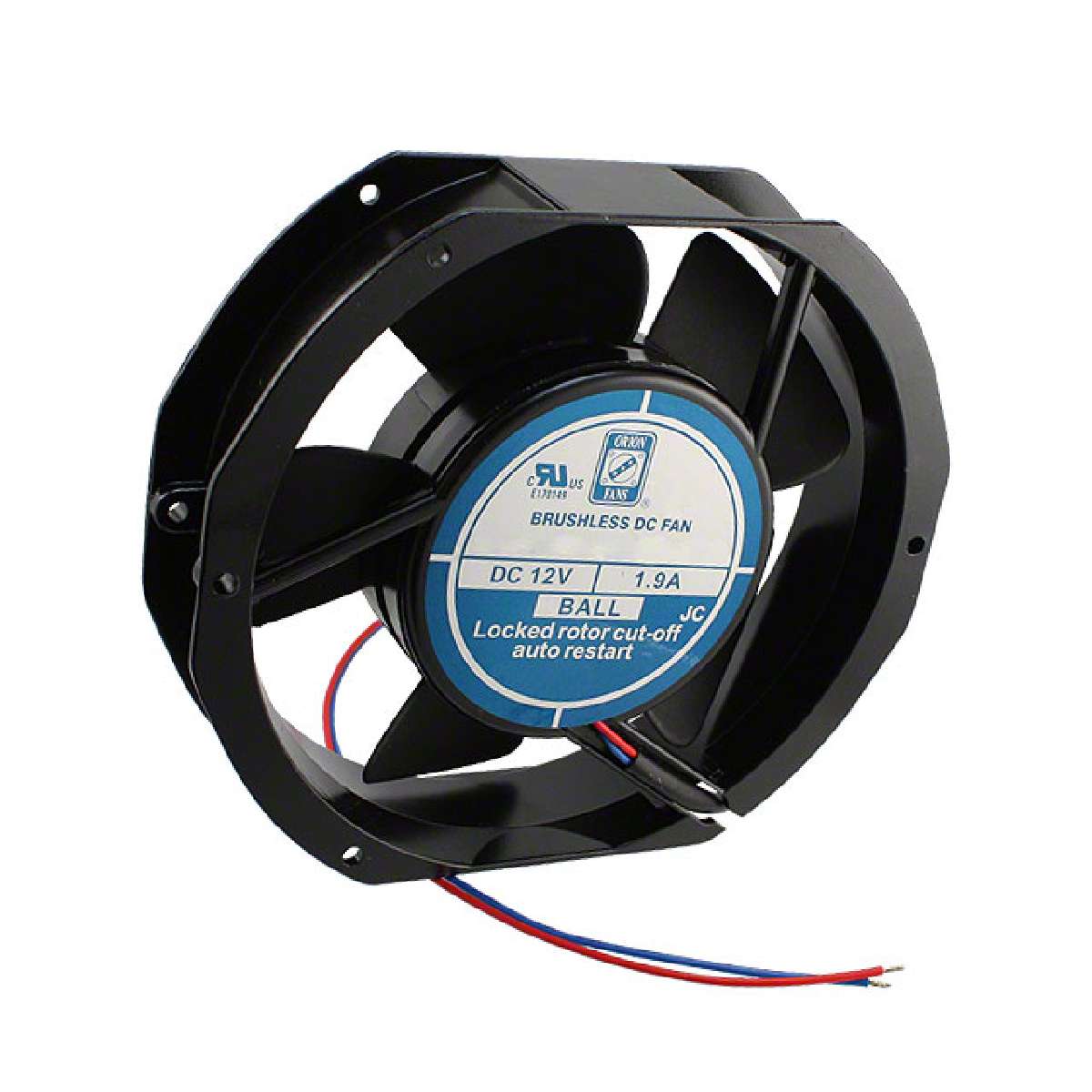

OD172 Series 4000 RPM Ø 172 x 150 x 38 mm 225 CFM 12 V Dual Ball Bearing DC Fan
|
||
| 标准包装：10 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product Training Modules | DC Fans |
|---|---|
| Other Related Documents | Selection Guide Standard Wire Colors For Fans |
| Air Flow | 225.0 CFM (6.37m鲁/min) |
| Bearing Type | Ball |
| Termination | 2 Wire Leads |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 8 ~ 14VDC |
| Noise | 55 dB |
| Family | DC Fans |
| Operating Temperature | -4 ~ 176掳F (-20 ~ 80掳C) |
| ECCN | EAR99 |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H x 38.5mm W |
| Material - Frame | Aluminum |
| Life Expectancy | 60000 hrs @ 45掳C |
| Fan Type | Tubeaxial |
| Static Pressure | 0.730 in H2O (181.8 Pa) |
| Standard Package | 1 |
| Voltage - Rated | 12VDC |
| Series | OD172SAPL |
| RPM | 4000 RPM |
| Current Rating | 2A |
| 数据手册： |
|---|
