| OD1232-48MB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

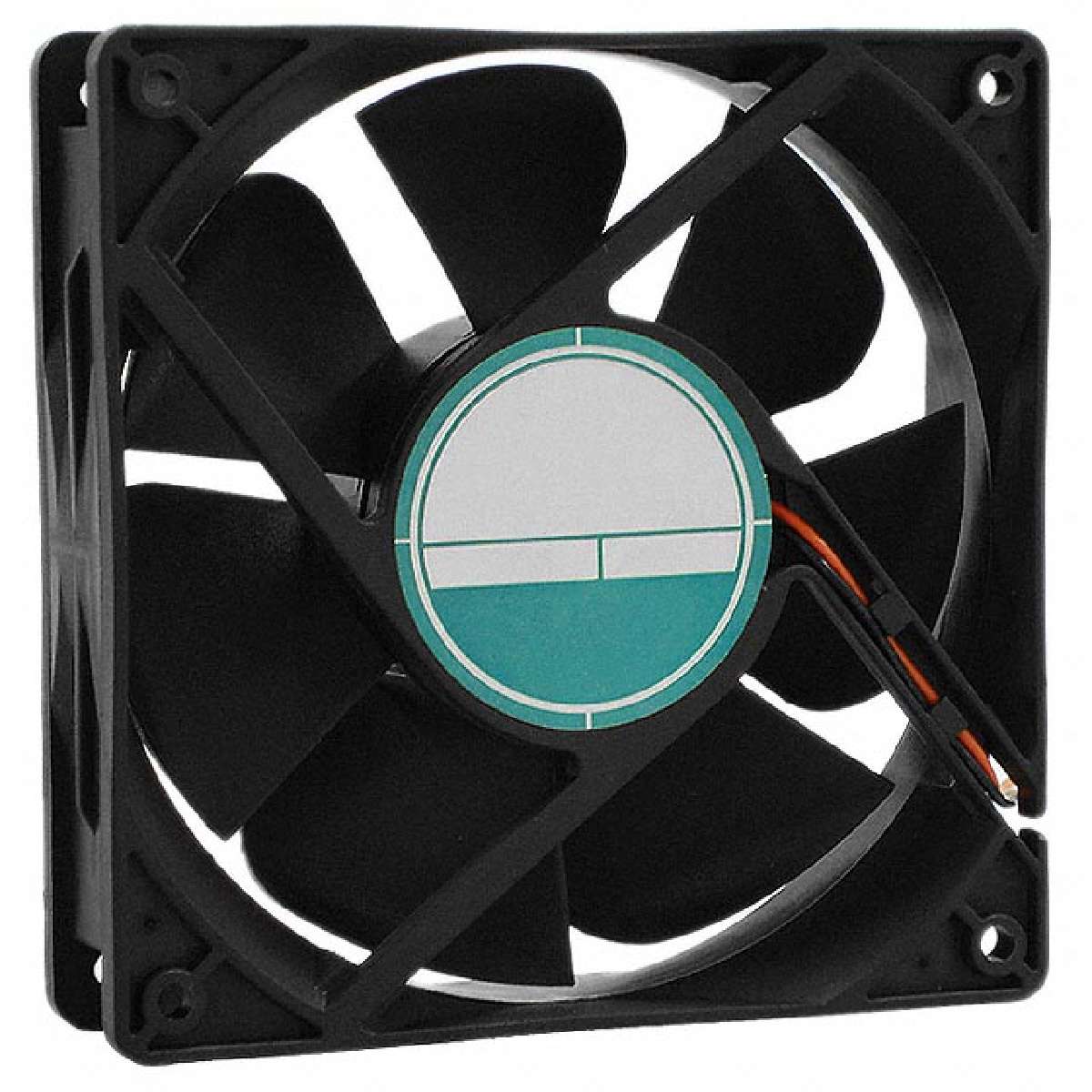

OD1232 Series 3300 RPM 120 x 120 x 32 mm 107 CFM 48 V Dual Ball Bearing DC Fan
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Size / Dimension | Square - 120mm L x 120mm H x 32mm W |
|---|---|
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Life Expectancy | 60000 hrs @ 40°C |
| Fan Type | Tubeaxial |
| Termination | 2 Wire Leads |
| Standard Package | 40 |
| Voltage - Rated | 48VDC |
| Series | OD1232 |
| RPM | 3300 RPM |
| Current Rating | 0.150A |
| Other Related Documents | Standard Wire Colors For Fans |
| Air Flow | 107.0 CFM (3.03m³/min) |
| Bearing Type | Ball |
| Static Pressure | 0.330 in H2O (82.2 Pa) |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 24 ~ 55.2VDC |
| Noise | 48 dB |
| Family | DC Fans |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| ECCN | EAR99 |
