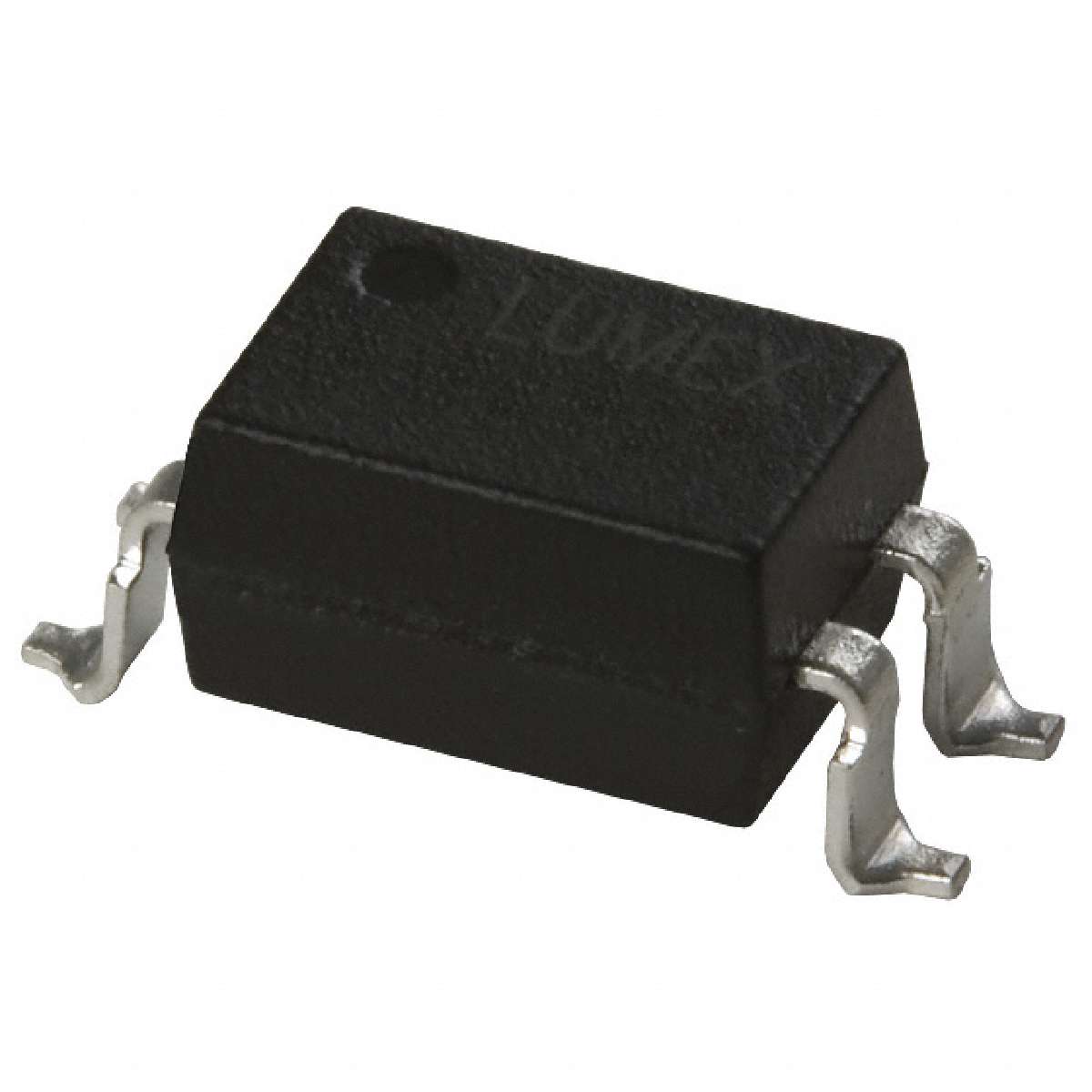

| OCP-PCT114/E-TR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
OptoIsolator Transistor Output 5000Vrms 1 Channel 4-SMD
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 5000Vrms |
|---|---|
| Voltage - Output (Max) | 60V |
| Rise / Fall Time (Typ) | 5µs, 4µs |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Standard Package | 2,000 |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| RoHS Information | RoHS Cert of Compliance |
| Vce Saturation (Max) | 300mV |
| Current Transfer Ratio (Min) | 60% @ 2mA |
| Current Transfer Ratio (Max) | 600% @ 2mA |
| Current - DC Forward (If) (Max) | 50mA |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Catalog Drawings | OCP-PCT114 Circuit |
| Packaging | Tape & Reel (TR) |
| Output Type | Transistor |
| Family | Optoisolators - Transistor, Photovoltaic Output |
| Operating Temperature | -30°C ~ 100°C |
| ECCN | EAR99 |
