| NVD4806NT4G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MOSFET N-CH 30V 76A DPAK
|
||
| 标准包装：2500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Standard |
|---|---|

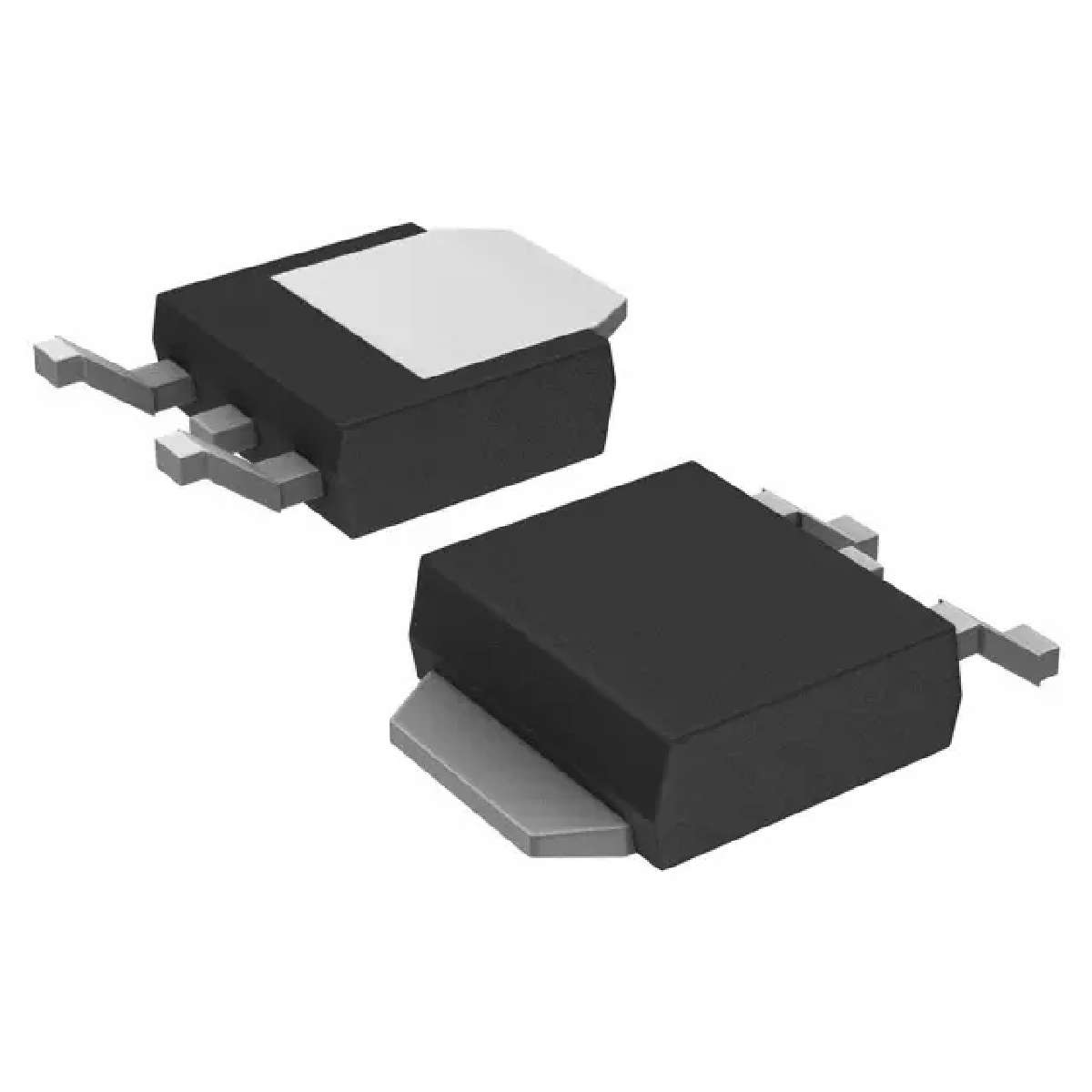

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 11.3A (Ta), 79A (Tc) |
| Part Status | Active |
| Manufacturer | ON Semiconductor |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 2142pF @ 12V |
| ECCN | EAR99 |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 30A, 10V |
| Power - Max | 1.4W |
| Supplier Device Package | DPAK-3 |
| Gate Charge (Qg) @ Vgs | 23nC @ 4.5V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Packaging | Tape & Reel (TR) |
