98424-G52-12ALF

ACTIVE

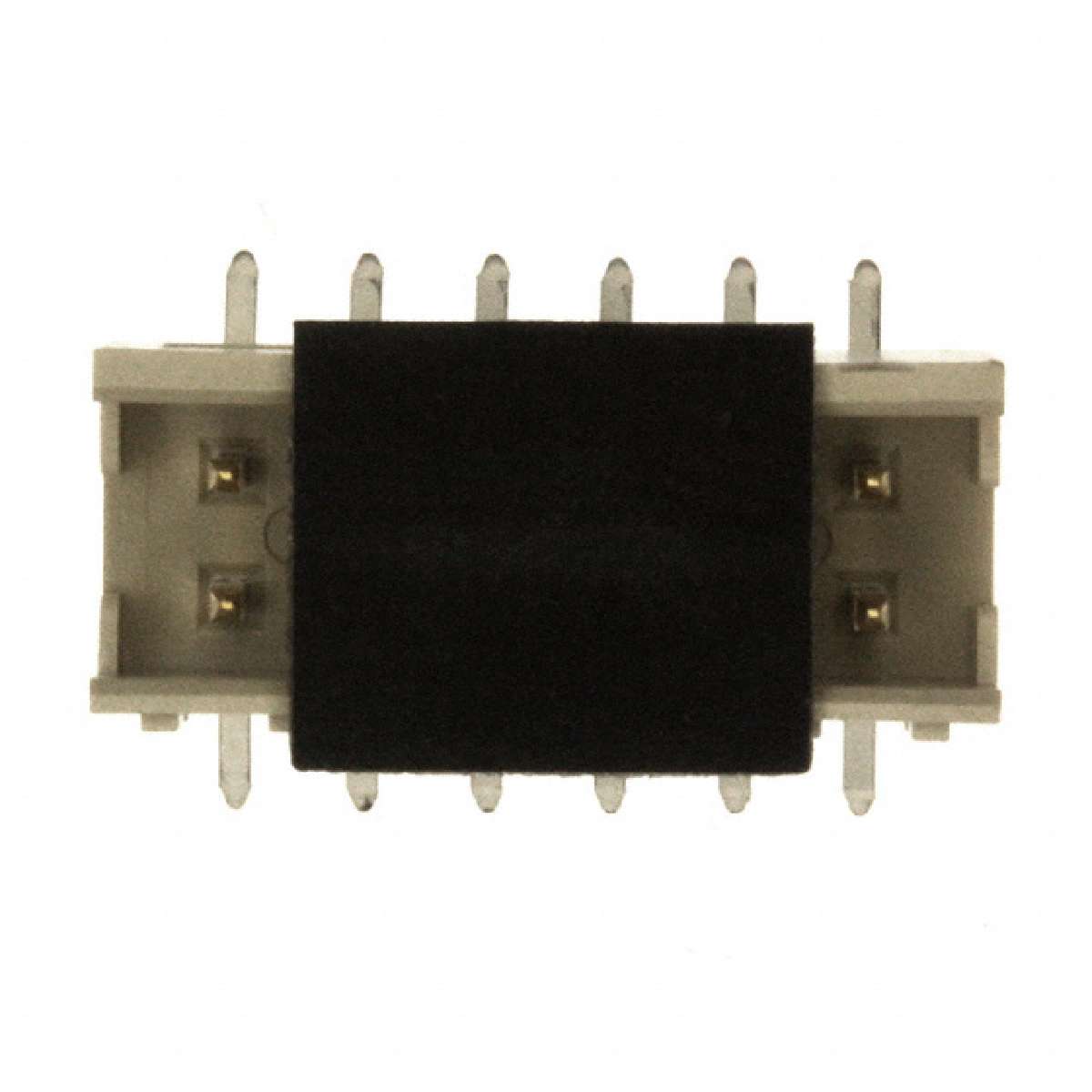

Product description : 12P SHROUDED STRAIGHT HEADERS RoHSconf
SPQ：600
Datasheet : 98424-G52-12ALF.pdf

Number of Positions Loaded	All
Mating	609-2797-ND - CONN HOUSING 12POS 2MM W/KEY 609-2754-ND - CONN HOUSING 12POS 2MM W/O KEY 609-2673-ND - CONN RECEPT 12POS 2MM STR DL SMD 55510-112TR-ND - LPVCC 4.5 T.E SMT ASSY 55510-112TRLF-ND - CONN RECEPT 12POS 2MM STR DL SMD 55510-312-ND - LPVCC 4.5 T.
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Termination	Solder
Catalog Drawings	98424 Series Top 98424 Series Front
Online Catalog	Minitek™ MezzSelect™, Basics+ Series
Number of Positions	12
Contact Mating Length	0.157" (4.00mm)
Pitch	0.079" (2.00mm)
RoHS	Lead free / RoHS Compliant
Contact Finish	Gold, GXT™
Video File	Mezzselect Tool - Another Geek Moment
Contact Finish Thickness	30µin (0.76µm)
Row Spacing	0.079" (2.00mm)
Contact Type	Male Pin
Color	Cream
Series	Minitek™ MezzSelect™, Basics+
Family	Rectangular Connectors - Headers, Male Pins
Connector Type	Header, Shrouded
Number of Rows	2

Datasheet： 98424-G52-12ALF.pdf
