32-C182-10

ACTIVE EAR99

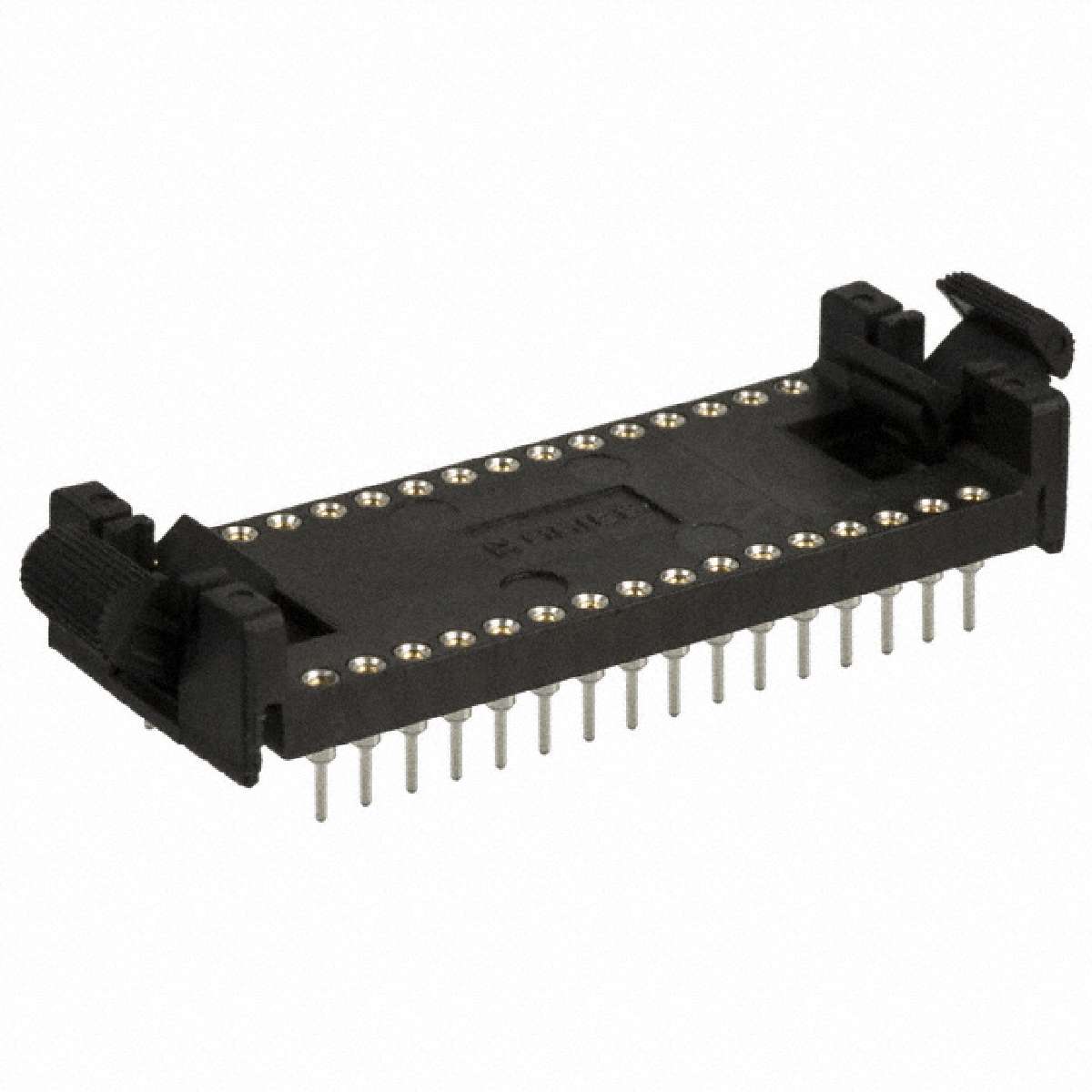

Product description : EJECT-A-DIP Series 32 Position 15.24 Row Spacing Solder Tail pin socket
SPQ：1
Datasheet : 32-C182-10.pdf

Termination	Solder
Termination Post Length	0.125" (3.18mm)
Contact Finish - Post	Tin
Part Status	Active
Number of Positions or Pins (Grid)	32 (2 x 16)
Category	Connectors, Interconnects
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Finish Thickness - Mating	10µin (0.25µm)
Series	EJECT-A-DIP™
Family	Sockets for ICs, Transistors
Operating Temperature	-55°C ~ 105°C
Packaging	Bulk
ECCN	EAR99
Pitch - Post	0.100" (2.54mm)
Type	DIP, 0.6" (15.24mm) Row Spacing
Features	Closed Frame
Contact Finish Thickness - Post	200µin (5.08µm)
Manufacturer	Aries Electronics
Contact Finish - Mating	Gold
Contact Material - Post	Brass
Contact Material - Mating	Beryllium Copper
Pitch - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Material Flammability Rating	UL94 V-0
Current Rating	3A
