| 381LQ471M350A022 | ||
|---|---|---|
|
|
||
|
||

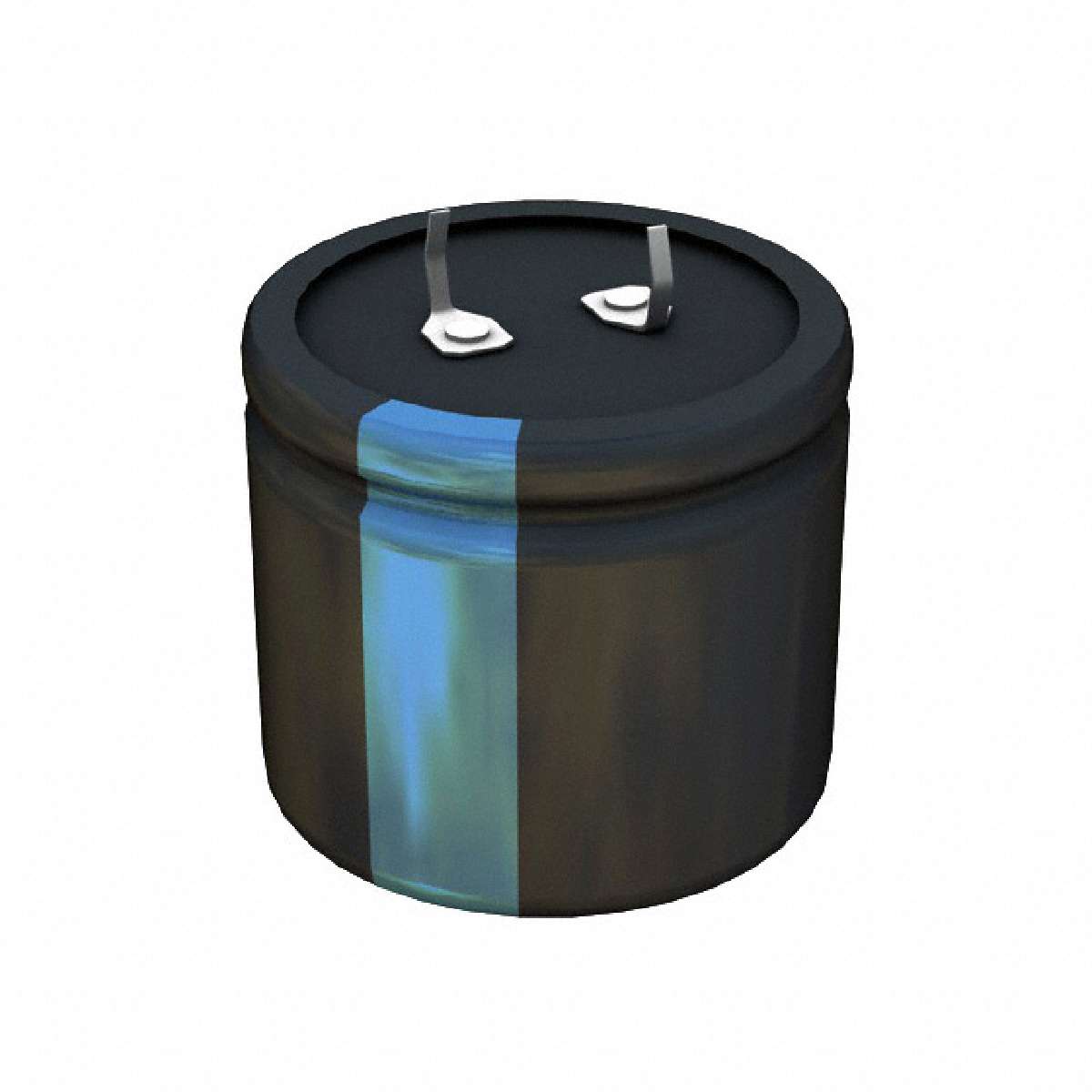

| Product description : 381L Series 470 uF 350 V 35x30mm 105°C Snap in Aluminum Electrolytic Capacitor | ||
| SPQ：80 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 350V |
|---|---|
| Package / Case | Radial, Can - Snap-In |
| Capacitance | 470µF |
| ESR (Equivalent Series Resistance) | 353 mOhm @ 120Hz |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Ripple Current | 1.4A @ 120Hz |
| Manufacturer | Cornell Dubilier Electronics (CDE) |
| Series | 381LQ |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Bulk |
