MG1275S-BA1MM specifications -Ameya360 electronic components purchase network

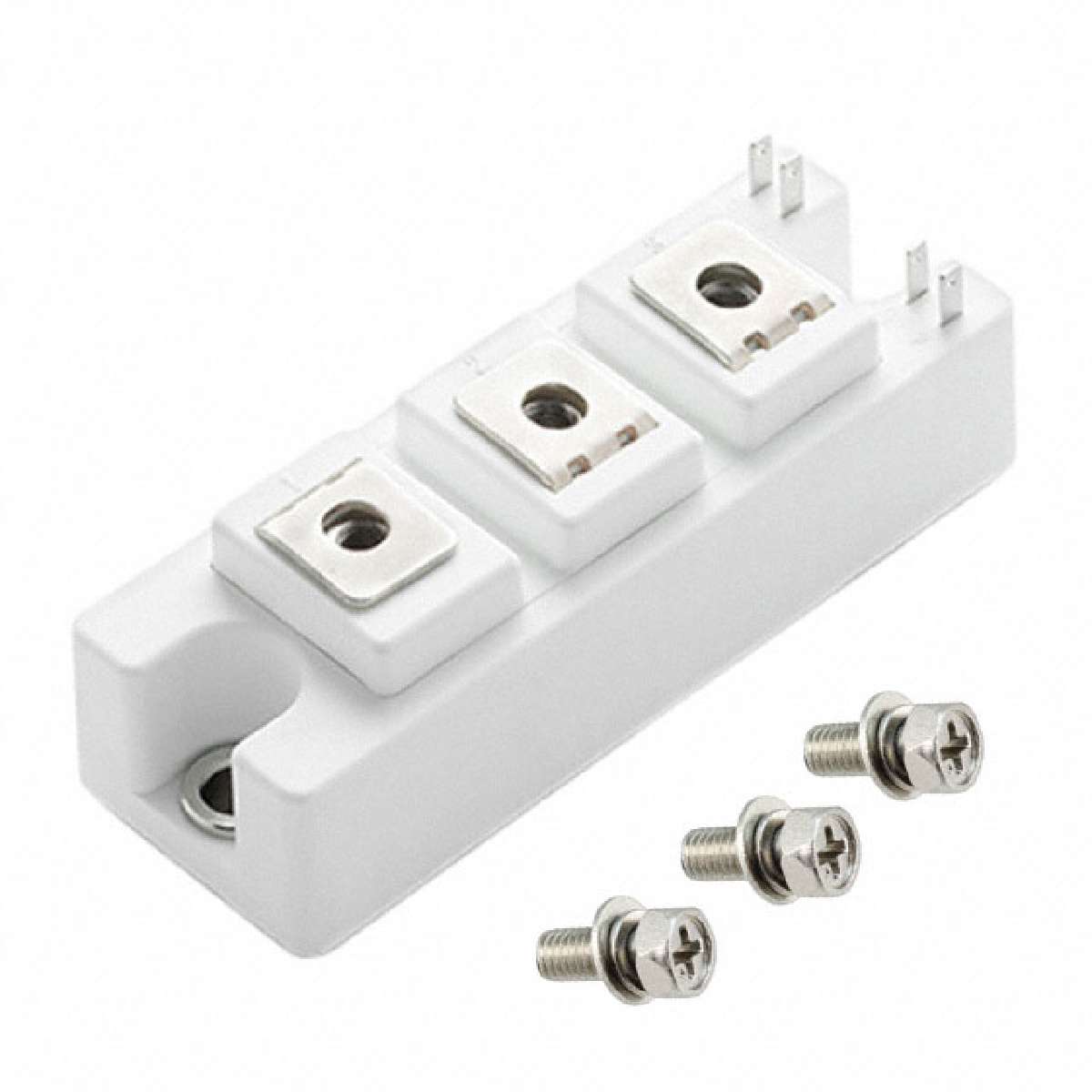

MG1275S-BA1MM

ACTIVE S3
Product description : IGBT 1200V 105A 630W PKG S
SPQ：1
Datasheet : MG1275S-BA1MM.pdf

Input	Standard
Power - Max	630W
Configuration	Half Bridge
Current - Collector (Ic) (Max)	105A
Manufacturer	Littelfuse Inc.
Voltage - Collector Emitter Breakdown (Max)	1200V
Mounting Type	Chassis Mount
Current - Collector Cutoff (Max)	500µA
Package / Case	S-3 Module
Supplier Device Package	S3
Part Status	Active
Category	Discrete Semiconductor Products
Input Capacitance (Cies) @ Vce	5.52nF @ 25V
Family	Transistors - IGBTs - Modules
Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 75A (Typ)
NTC Thermistor	No

Datasheet： MG1275S-BA1MM.pdf
