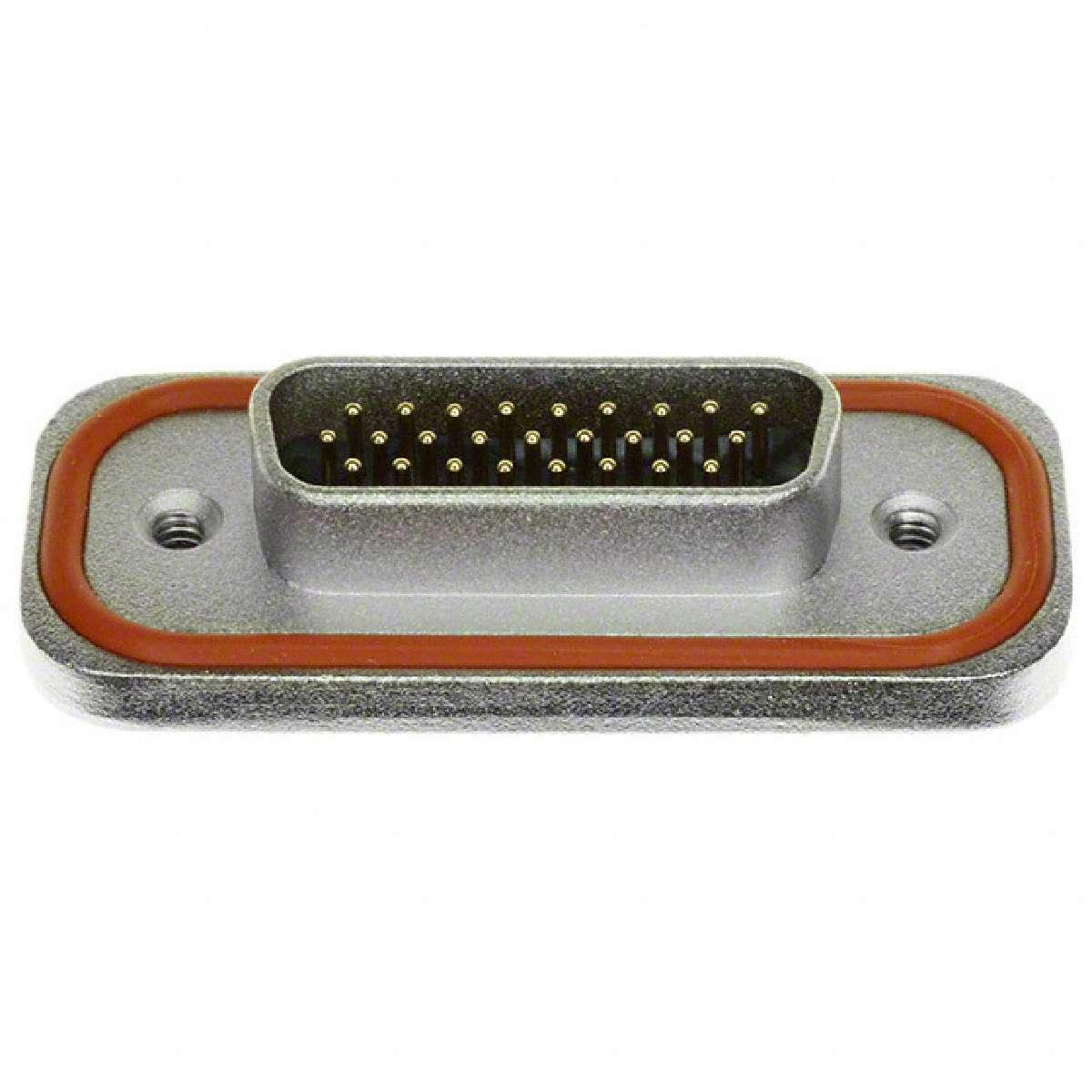

| MDBA26PE860 | ||
|---|---|---|
|
|
||
|
||
| Product description : Amphenol MDBA 系列 2.3mm 节距 26 路 直向 通孔安装, 防水印刷电路板 D-Sub 连接器 插头 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 125V |
|---|---|
| Contact Finish | Gold |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Housing Material | Polyester |
| Contact Finish Thickness | 30µin (0.76µm) |
| Contact Type | Signal |
| Features | Board Lock |
| Packaging | Tray |
| Series | MDB |
| Operating Temperature | -40°C ~ 105°C |
| 3D Model | MDBA26PE860.igs MDBA26PE860.stp |
| Number of Rows | 3 |
| Connector Style | D-Sub, High Density |
| Shell Material, Finish | Zinc, Nickel Plated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole |
| Termination | Solder |
| Standard Package | 48 |
| Flange Feature | Board Side (4-40) |
| Number of Positions | 26 |
| Family | D-Sub Connectors |
| Connector Type | Plug, Male Pins |
| Current Rating | 2A |
