| MAN6640 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

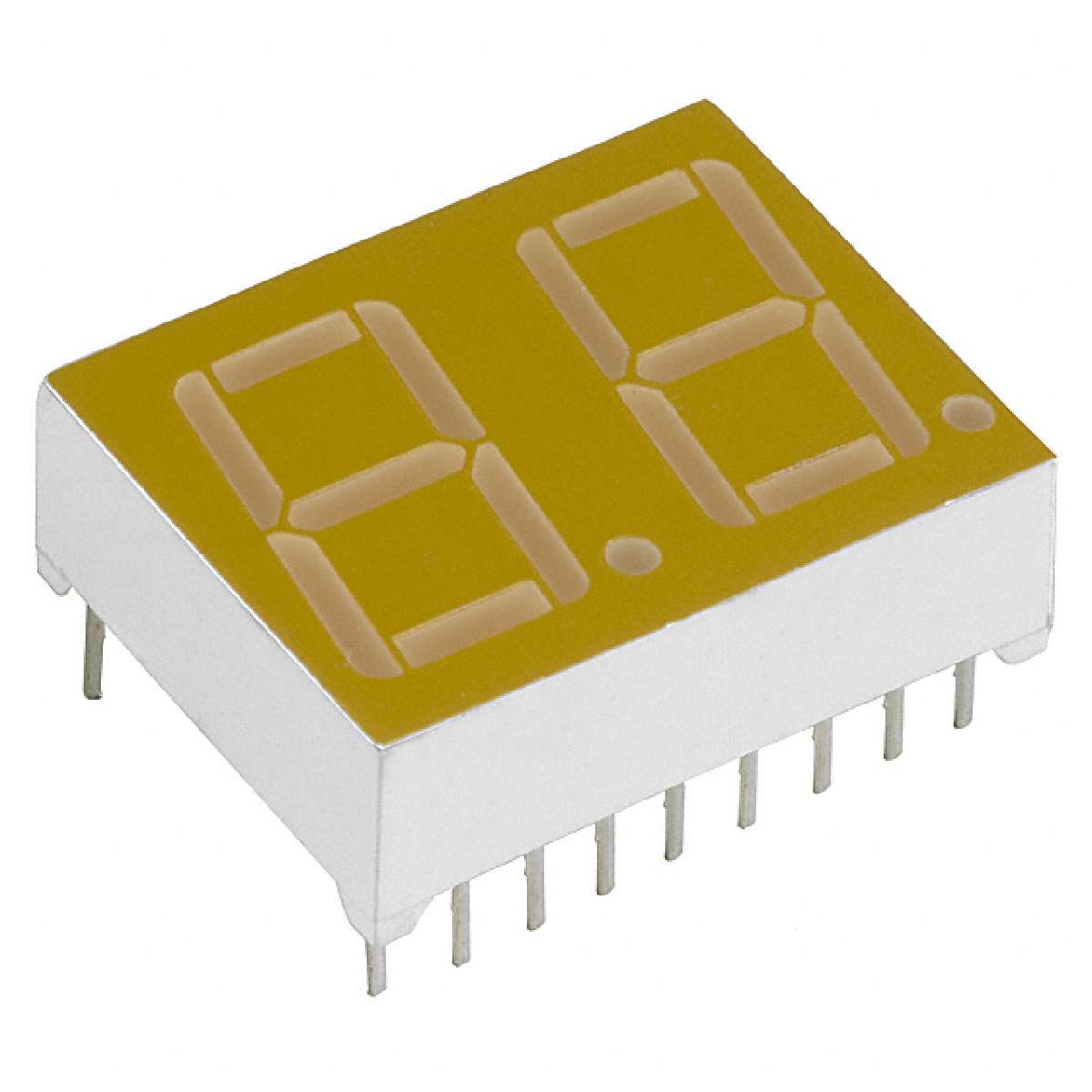

Orange 0.56 inch Dual Digit Common Cathode Seven Segment Display
|
||
| 标准包装：20 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Characters | 2 |
|---|---|
| Package / Case | 18-DIP |
| Color | Orange |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) |
| Wavelength - Peak | 630nm |
| Common Pin | Common Cathode |
| ECCN | EAR99 |
| Power Dissipation (Max) | 1.2W |
| Standard Package | 20 |
| Size / Dimension | 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) |
| Display Type | 7-Segment |
| Current - Test | 20mA |
| Family | Display Modules - LED Character and Numeric |
| Millicandela Rating | 2.2mcd |
