4N32SM specifications -Ameya360 electronic components purchase network

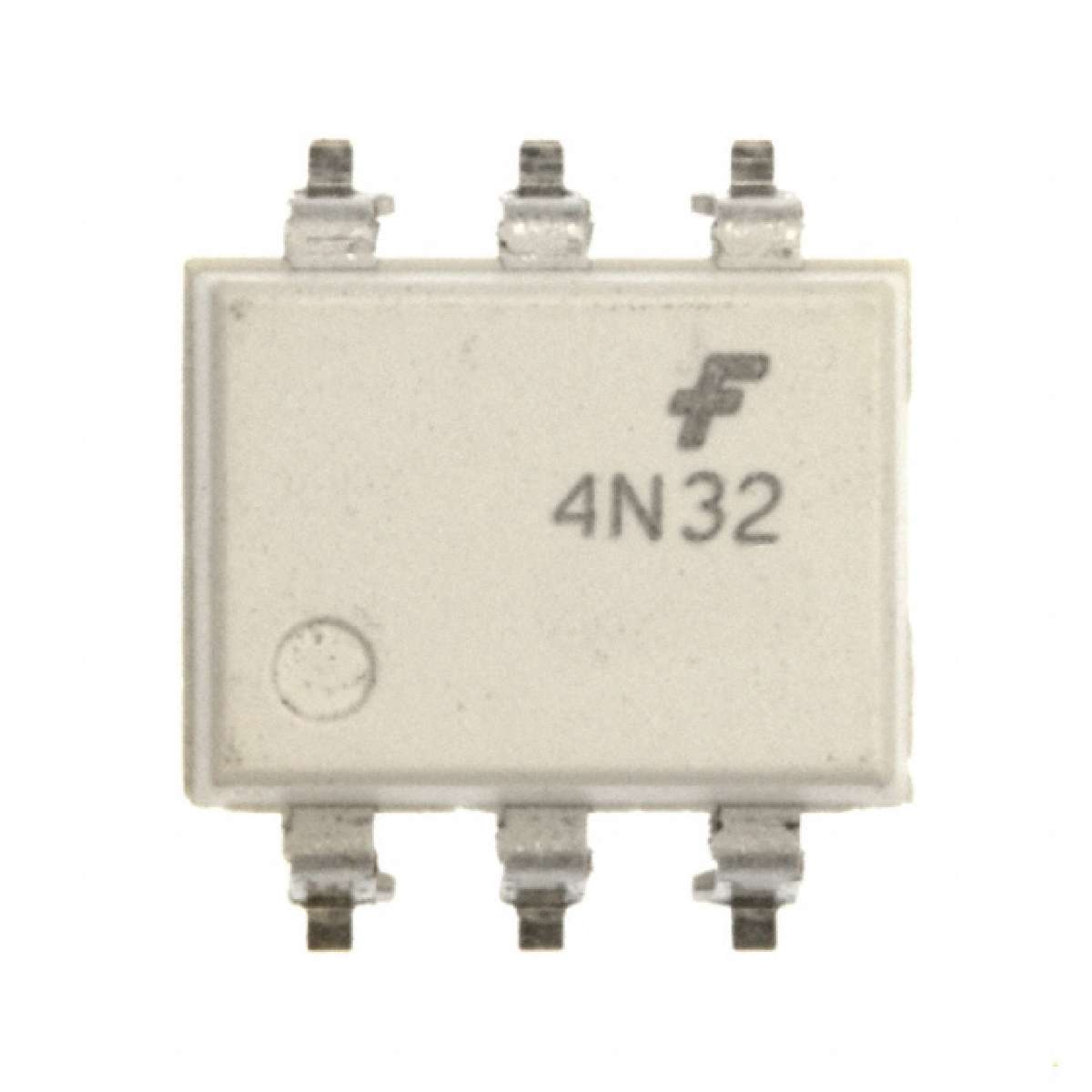

4N32SM

ACTIVE 6-SMD EAR99
Product description : DIP6 SMT Single Channel 30 V 4170 Viso Photo Darlington Optocoupler
SPQ：1
Datasheet : 4N32SM.pdf

Current - Output / Channel	150mA
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	500% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 100µs (Max)
Manufacturer	Fairchild Semiconductor
Number of Channels	1
Voltage - Forward (Vf) (Typ)	1.2V
Family	Optoisolators - Transistor, Photovoltaic Output
Vce Saturation (Max)	1V
Packaging	Tube
ECCN	EAR99
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
Part Status	Active
Category	Isolators
Voltage - Output (Max)	30V
Output Type	Darlington with Base
Current - DC Forward (If) (Max)	80mA
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 100°C
Input Type	DC

Datasheet： 4N32SM.pdf
