4N36SR2M specifications -Ameya360 electronic components purchase network


4N36SR2M

ACTIVE 6-SMD EAR99

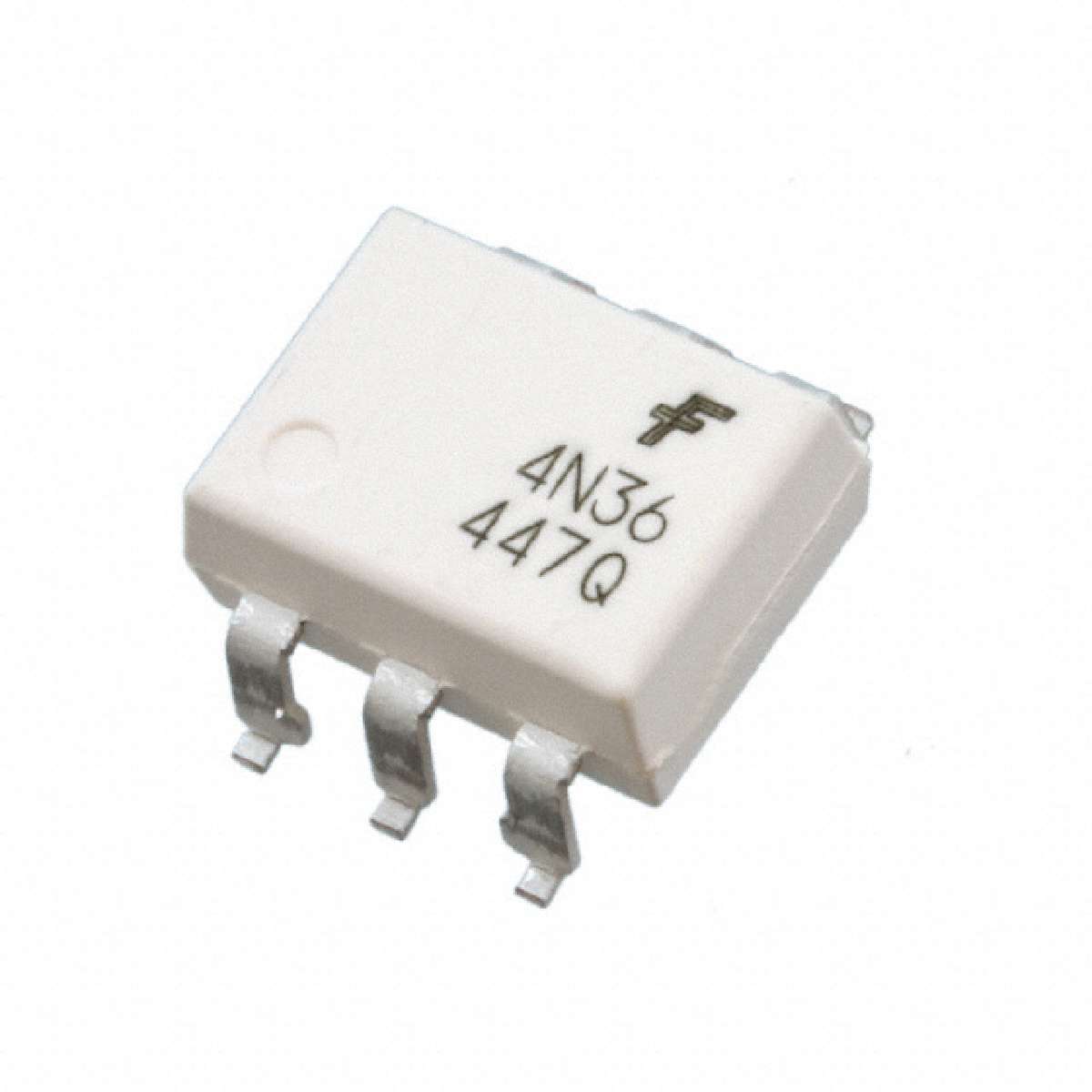

Product description : White Single Channel 30 V 4170 V SMT Phototransistor Optocoupler-DIP-6
SPQ：1000
Datasheet : 4N36SR2M.pdf

Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
Part Status	Active
Category	Isolators
Voltage - Output (Max)	30V
Output Type	Transistor with Base
Current - DC Forward (If) (Max)	60mA
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 100°C
Input Type	DC
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	40% @ 10mA
Turn On / Turn Off Time (Typ)	2µs, 2µs
Manufacturer	Fairchild Semiconductor
Number of Channels	1
Voltage - Forward (Vf) (Typ)	1.18V
Family	Optoisolators - Transistor, Photovoltaic Output
Vce Saturation (Max)	300mV
Packaging	Tape & Reel (TR)
ECCN	EAR99

Datasheet： 4N36SR2M.pdf
