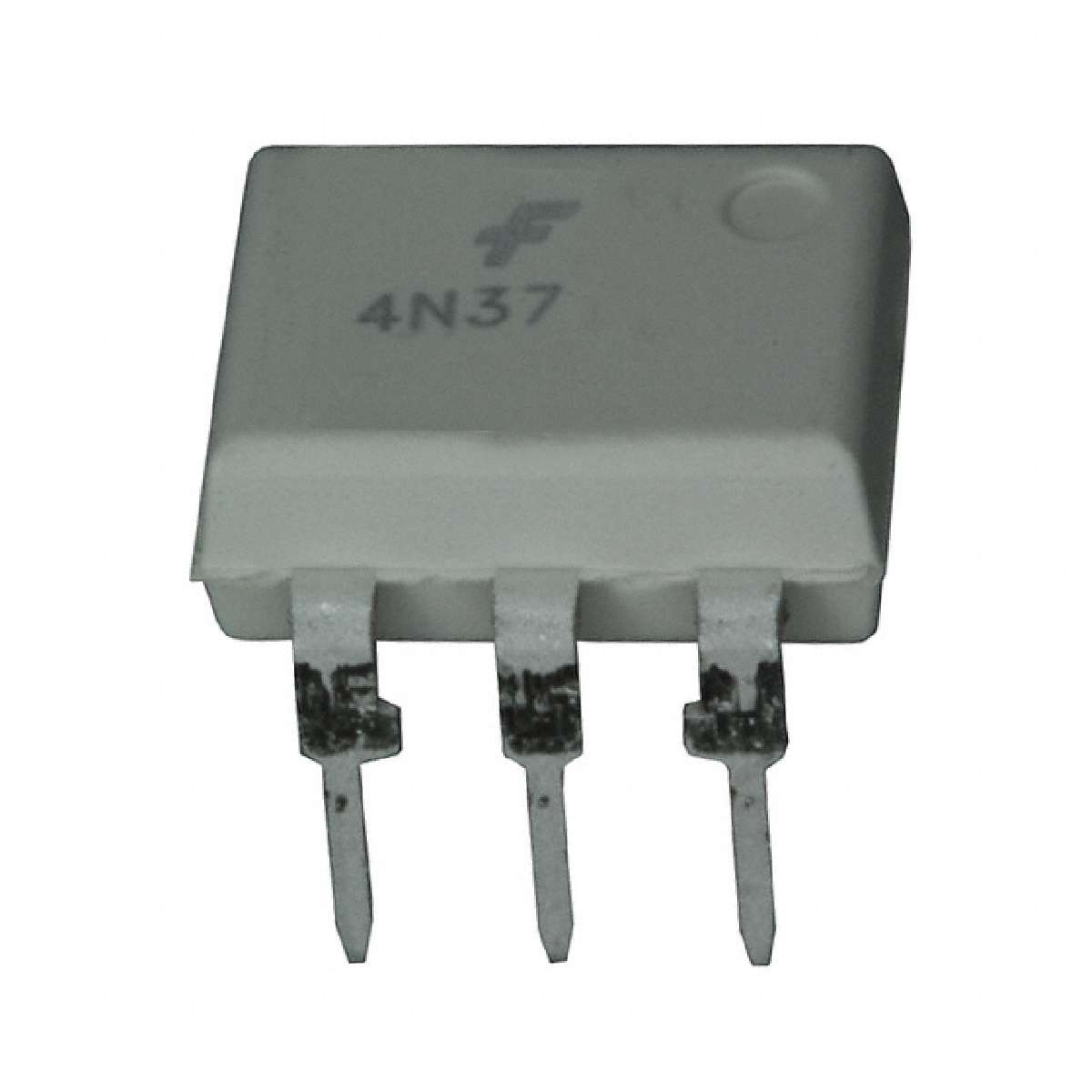

| 4N37M | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
DIP6 Through Hole Single Channel 30 V 4170 VAC (RMS) Phototransistor Optocoupler
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Fall Time: | 10 us |
|---|---|
| Maximum Collector Current: | 100 mA |
| Width: | 6.5 mm |
| Maximum Collector Emitter Saturation Voltage: | 0.3 V |
| Length: | 7.3 mm |
| Manufacturer: | Lite-On |
| Vr - Reverse Voltage: | 6 V |
| Minimum Operating Temperature: | - 55 C |
| Brand: | Lite-On |
| Package / Case: | PDIP-6 |
| Height: | 3.5 mm |
| Vf - Forward Voltage: | 1.5 V |
| ECCN | EAR99 |
| Number of Channels: | 1 Channel |
| Maximum Collector Emitter Voltage: | 30 V |
| Packaging: | Tube |
| Isolation Voltage: | 1500 Vrms |
| If - Forward Current: | 60 mA |
| Output Type: | NPN Phototransistor |
| Pd - Power Dissipation: | 350 mW |
| Factory Pack Quantity: | 65 |
| RoHS: | Details |
| Product Category: | Transistor Output Optocouplers |
| Rise Time: | 10 us |
| Maximum Operating Temperature: | + 100 C |
