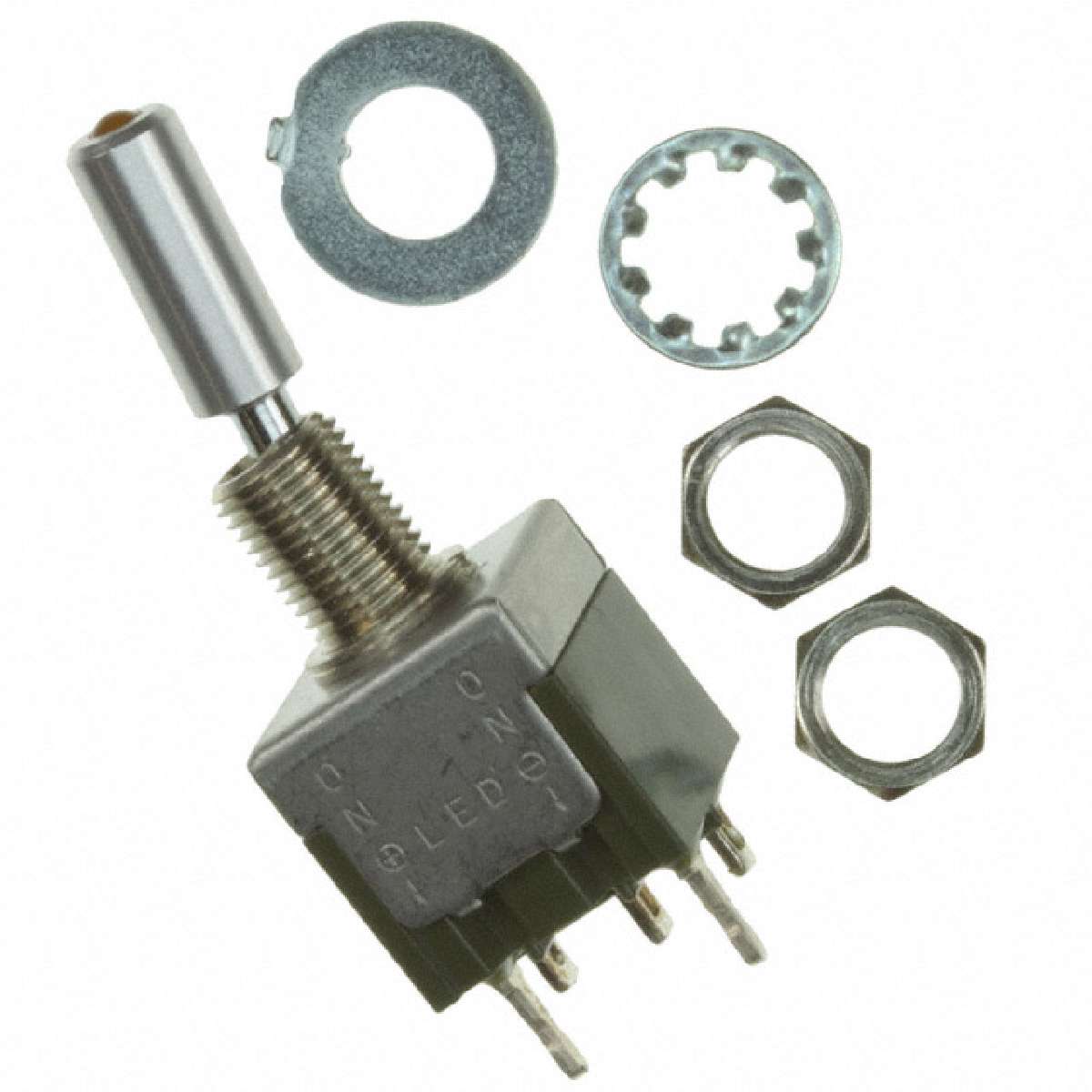

| M2112TEW01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MINIATURE TOGGLE/ILLUMINATED/SOLDER LUG & PC
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Illumination Voltage (Nominal) | 2.1 VDC |
|---|---|
| Termination Style | Solder Lug |
| Illumination Type, Color | LED, Yellow |
| Electrical Life | 25,000 Cycles |
| Circuit | SPDT |
| Actuator Length | 14.70mm |
| Bushing Thread | 1/4-40 |
| Packaging | Bulk |
| Series | M2100 |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Operating Temperature | -10°C ~ 55°C |
| Current Rating | 6A (AC), 3A (DC) |
| Switch Function | On-On |
| Voltage Rating - DC | 30V |
| Product Training Modules | Switch Basics 3D CAD Models |
| Mounting Type | Panel Mount |
| Actuator Type | Standard Round |
| Voltage Rating - AC | 125V |
| Features | Epoxy Sealed Terminals |
| Illumination | Illuminated |
| Family | Toggle Switches |
| RoHS Information | M21 Series, Cert of Compliance |
| 3D Model | M2112TEW01 |
| ECCN | EAR99 |
