| M2023BB1W01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

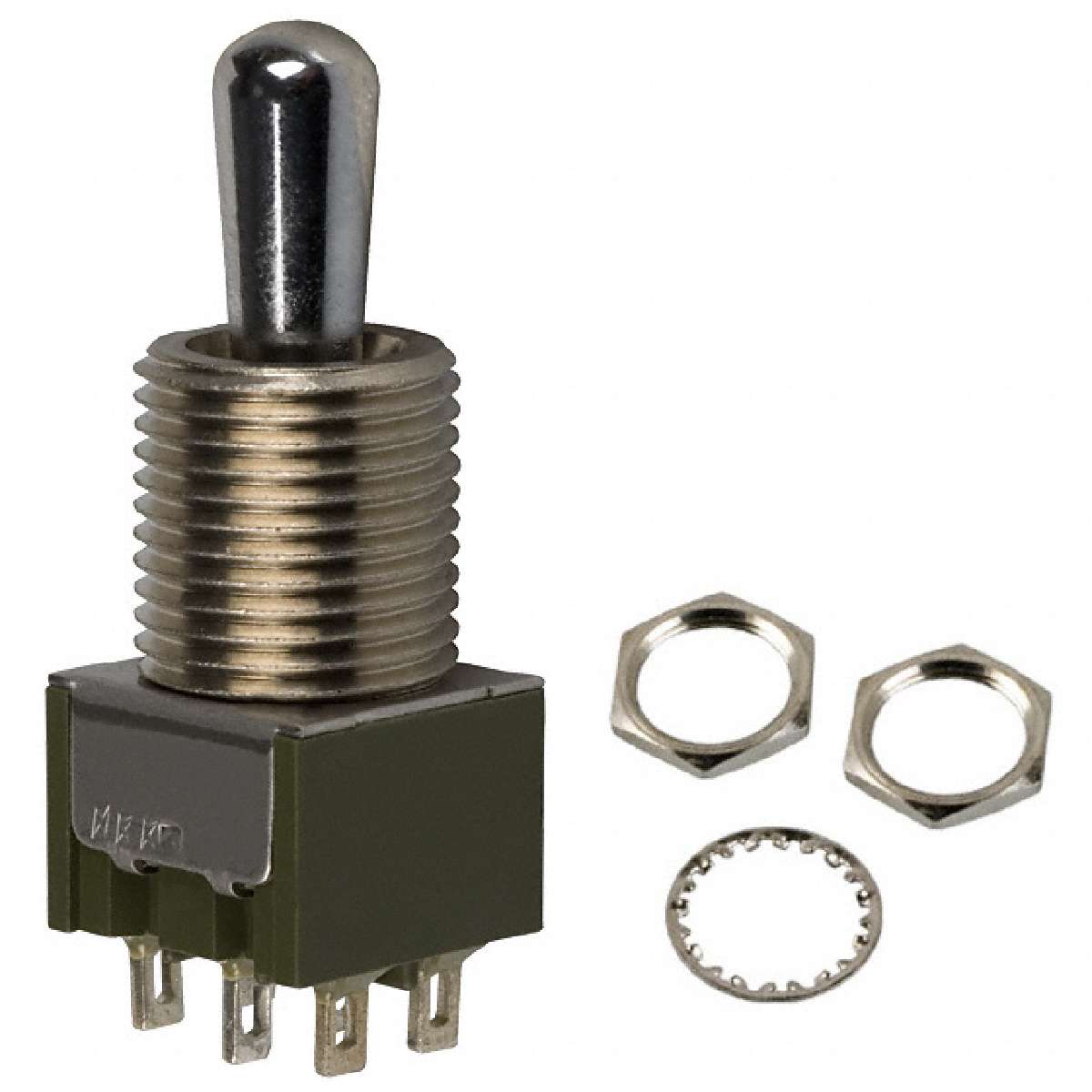

M Series 6 A Mini DPDT On-Off-On Solder Lug Panel Mount Toggle Switch
|
||
| 标准包装：50 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-Off-On |
|---|---|
| Voltage Rating - DC | 30V |
| Electrical Life | 25,000 Cycles |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Catalog Drawings | DPDT Toggle Footprint B1 Bushing |
| Voltage Rating - AC | 125V |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Online Catalog | M Series |
| Family | Toggle Switches |
| RoHS Information | Series, Cert of Compliance |
| 3D Model | M2023BB1W01 |
| ECCN | EAR99 |
| Termination Style | Solder Lug |
| Product Training Modules | Switch Basics 3D CAD Models |
| Mounting Type | Panel Mount |
| Circuit | DPDT |
| Actuator Length | 11.50mm |
| Standard Package | 1 |
| Bushing Thread | M12 x 1 |
| PCN Design/Specification | Multiple Devices O-ring 30/Jun/2011 |
| Illumination | Non-Illuminated |
| Series | M |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Operating Temperature | -30°C ~ 85°C |
| Current Rating | 6A (AC), 3A (DC) |
