| LVSP0030T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

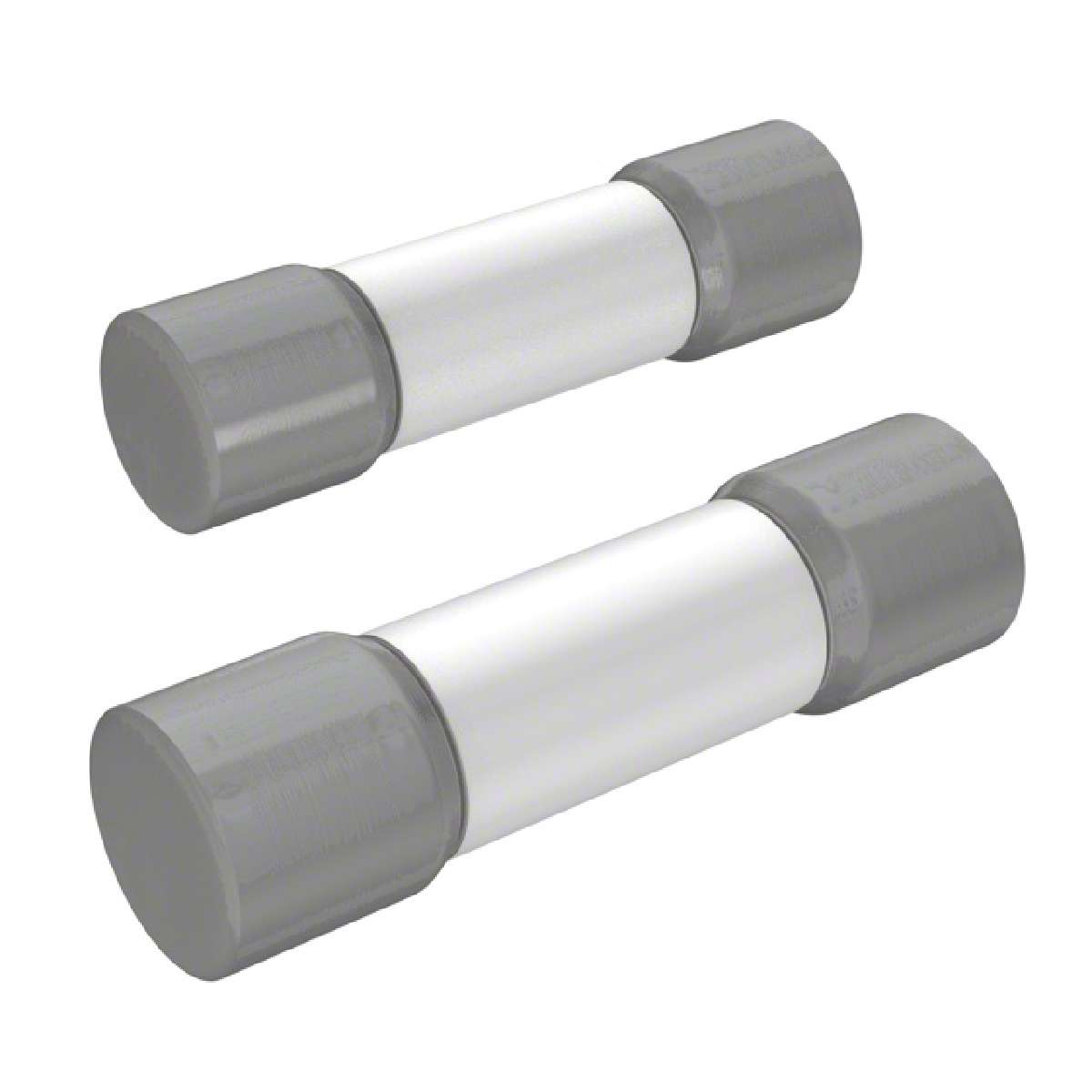

LVSP Series Slow Blow 600 V AC 30 A Surge Fuse For TVSS Protection
|
||
| 标准包装：10 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
|---|---|
| Approvals | UR |
| Part Status | Active |
| Response Time | Slow |
| DC Cold Resistance | 0.00117 Ohm |
| Series | POWR-GARD® LVSP |
| Mounting Type | Bolt Mount |
| Melting I²t | 11950 |
| Packaging | Bulk |
| ECCN | EAR99 |
| Voltage Rating - AC | 600V |
| Size / Dimension | 0.816" Dia x 3.590" L (20.73mm x 91.19mm) |
| Fuse Type | Cartridge |
| Category | Circuit Protection |
| Manufacturer | Littelfuse Inc. |
| Family | Electrical, Specialty Fuses |
| Applications | TVSS Protection |
| Breaking Capacity @ Rated Voltage | 200kA |
| Current Rating | 30A |
