| 5200.0643.1 | ||
|---|---|---|
|
|
||
|
||

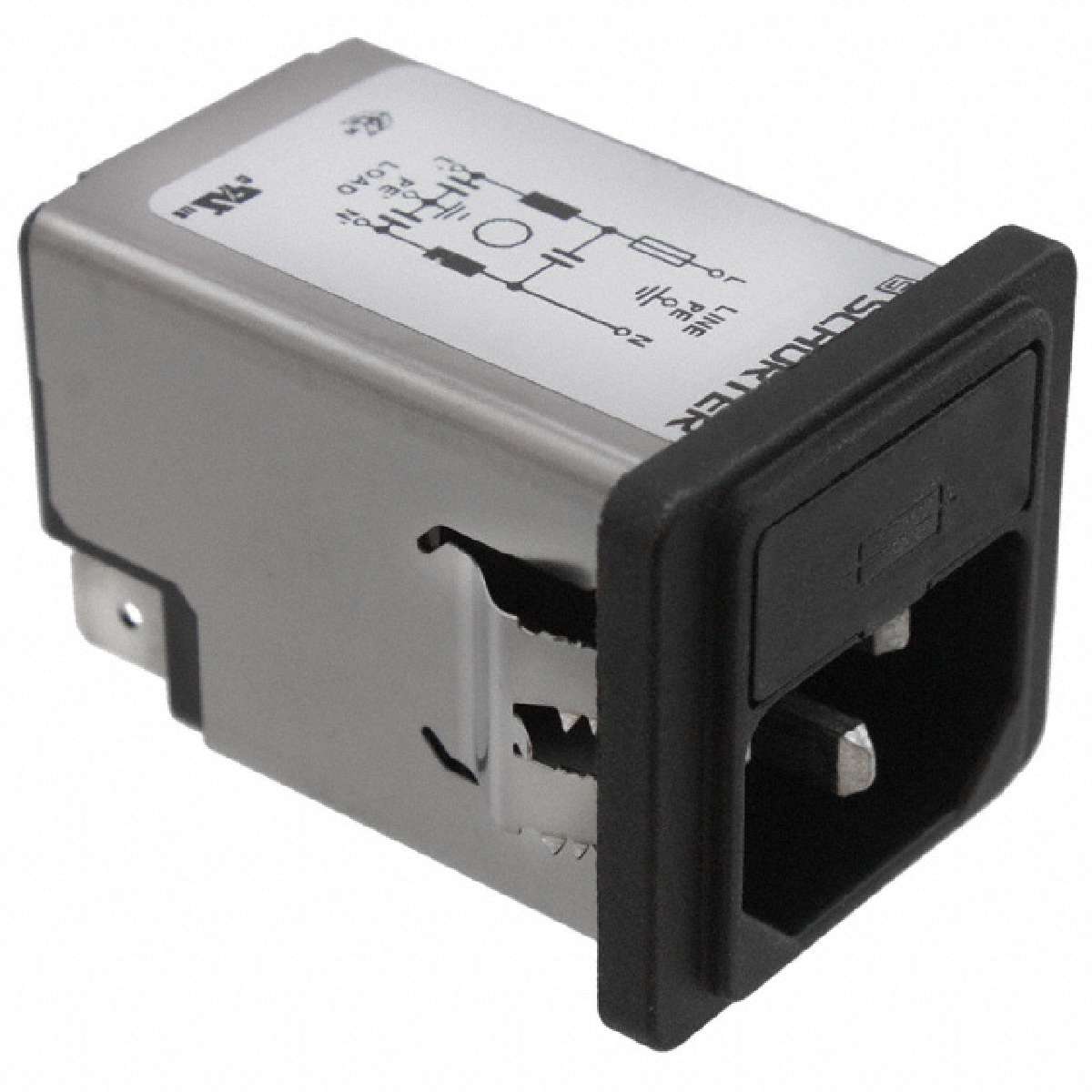

| Product description : IEC Inlet C14 with Filter+1-pole Fuseholder(to be ordered separately); 6A/250VAC; Panel Mount/Snap-in; Quick connect terminals 6.3x0.8mm; -25°C~85°C | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Housing Material: | Thermoplastic |
|---|---|
| Width: | 36 mm |
| Switch Function: | Not Switched |
| Manufacturer: | Schurter |
| Voltage Rating: | 125 V / 250 V |
| Operating Temperature Range: | - 25 C to + 85 C |
| Brand: | Schurter |
| RoHS: | Details |
| Connector Type: | IEC-320 C-14 |
| Product Category: | AC Power Entry Modules |
| Current Rating: | 6 A |
| Unit Weight: | 2.045890 oz |
| ECCN | EAR99 |
| Packaging: | Bulk |
| Product: | Inlets |
| Length: | 43.7 mm |
| Filter Type: | Standard |
| Series: | 5200 |
| Factory Pack Quantity: | 10 |
| Filtered: | Filtered |
| Termination Style: | Quick Connect |
| Fused: | Yes |
| Flammability Rating: | UL 94 V-0 |
| Height: | 34 mm |
| Mounting Style: | Snap In |
