| 5536272-9 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

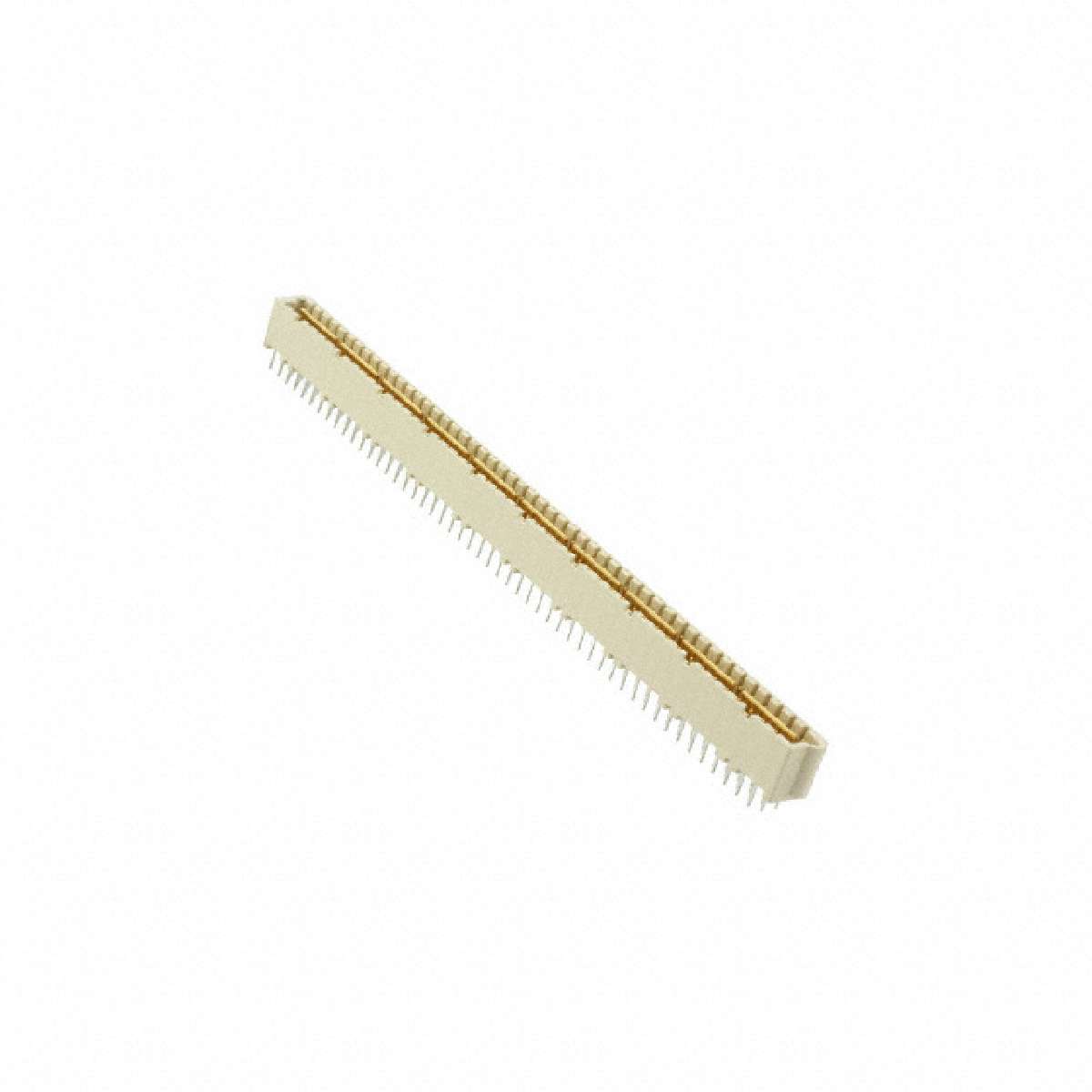

200 Position 1.27 mm Plug Solder Tail Through Hole Micro-Strip Connector
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Positions Loaded | All |
|---|---|
| Row Spacing | 0.100" (2.54mm) |
| Height Stacking (Mating) | 0.430" (10.92mm) |
| Features | Ground Bus (Plane) |
| Category | Connectors, Interconnects |
| Series | Micro-Strip |
| Family | Rectangular - Board to Board Connectors - Headers, Male Pins |
| Connector Type | Shrouded |
| Pitch | 0.050" (1.27mm) |
| Number of Rows | 2 |
| ECCN | EAR99 |
| Termination | Solder |
| Contact Finish | Gold |
| Color | Natural |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Number of Positions | 200 |
| Mounting Type | Through Hole |
| Contact Finish Thickness | 30µin (0.76µm) |
| Packaging | Tray |
| Molding Height Above Board | 0.340" (8.64mm) |
