| LCM1500W-T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

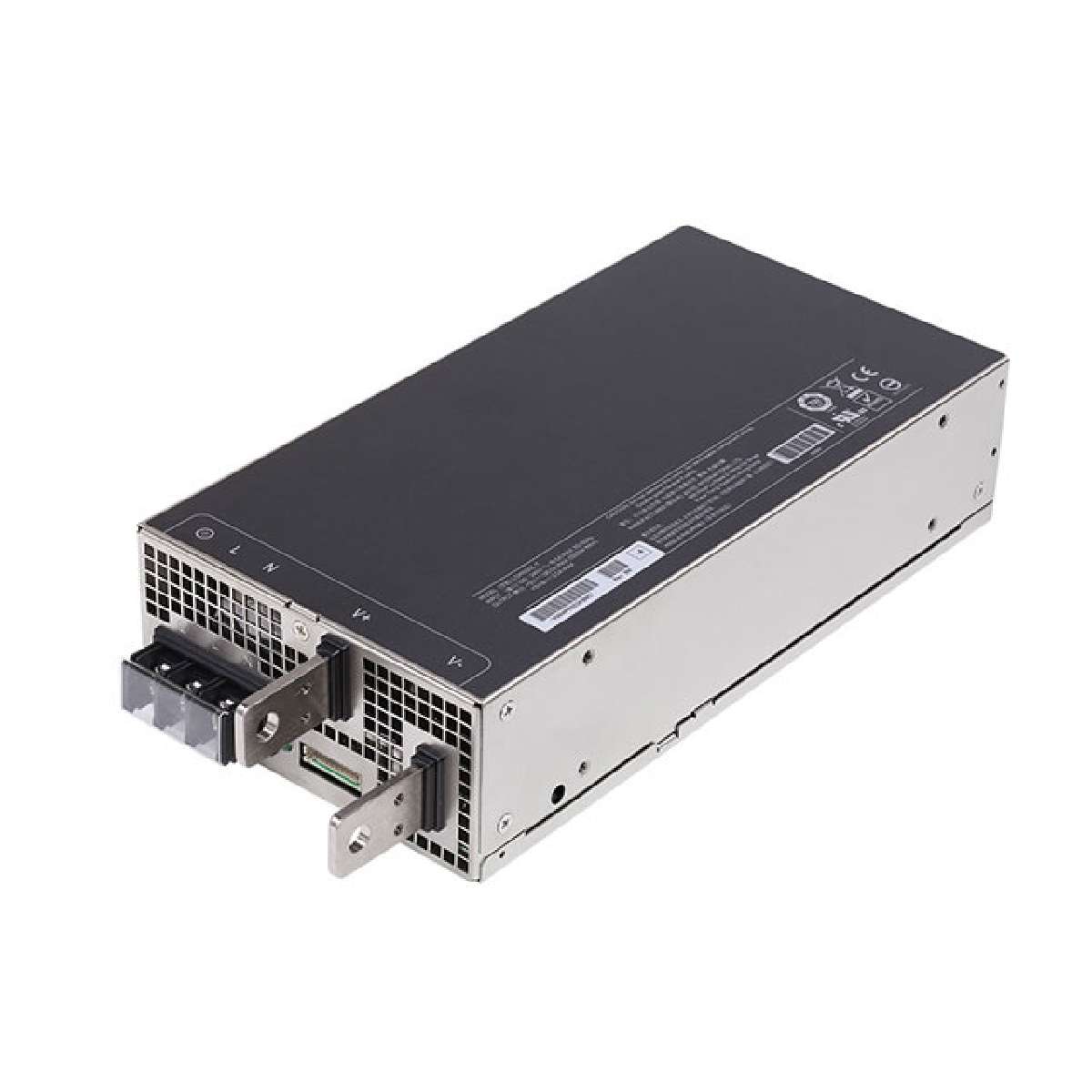

AC/DC CONVERTER 48V 1500W
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 2.5kV (2500V) |
|---|---|
| Type | Enclosed |
| PCN Packaging | CSA Marking 20/Sep/2013 |
| Minimum Load Required | No |
| Efficiency | 91% |
| Mounting Type | Chassis Mount |
| Power (Watts) - Max | 1500W |
| Standard Package | 50 |
| PCN Design/Specification | LCM Series 30/Sep/2013 |
| Series | LCM1500 |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Number of Outputs | 1 |
| Current - Output (Max) | 33A |
| Approvals | CB |
| Size / Dimension | 10.00" L x 5.20" W x 2.40" H (254.0mm x 132.0mm x 61.0mm) |
| Power (Watts) | 1500W |
| Applications | ITE (Commercial), Medical |
| Voltage - Input | 90 ~ 264 VAC |
| Features | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input |
| Voltage - Output 1 | 48V |
| Family | AC DC Converters |
