| L2C2-35901203E0900 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

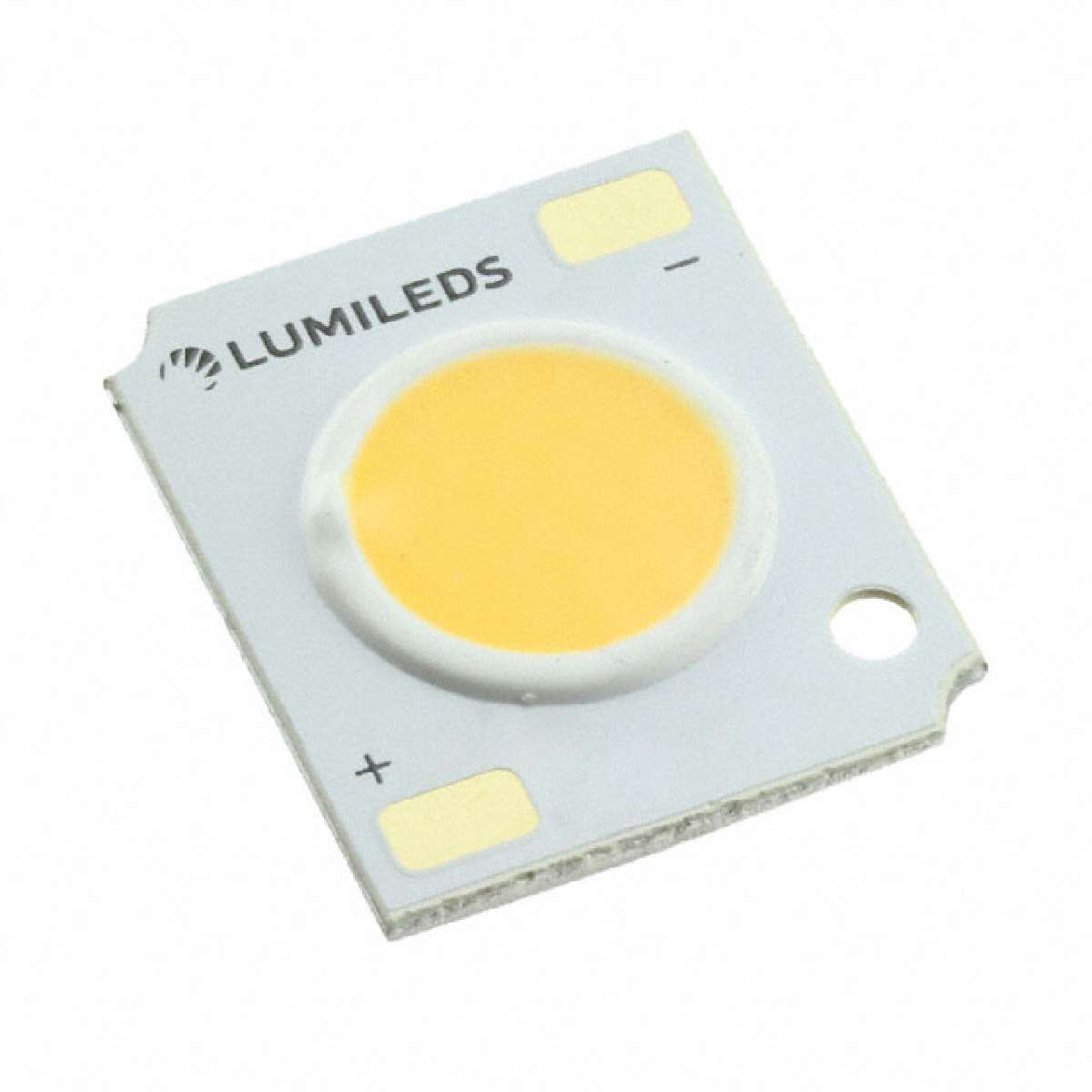

LUXEON CoB G2 High Power LED Emitter Warm White 3500K CCT 90 CRI min 1200 lm Typ
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 90 |
|---|---|
| Viewing Angle | 115° |
| Height | 1.50mm |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Size / Dimension | 16.00mm L x 19.00mm W |
| Light Emitting Surface (LES) | 9.00mm Diameter |
| Manufacturer | Lumileds |
| Voltage - Forward (Vf) (Typ) | 34.5V |
| Series | LUXEON CoB Core Range |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 116 lm/W |
| ECCN | EAR99 |
| Lens Type | Flat |
| Type | Chip On Board (COB) |
| Configuration | Rectangle |
| Color | White, Warm |
| Part Status | Active |
| Temperature - Test | 85°C |
| Category | Optoelectronics |
| Current - Test | 300mA |
| Current - Max | 600mA |
| Flux @ Current/Temperature - Test | 1200 lm (Typ) |
| Packaging | Tube |
