| L101121MS02Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

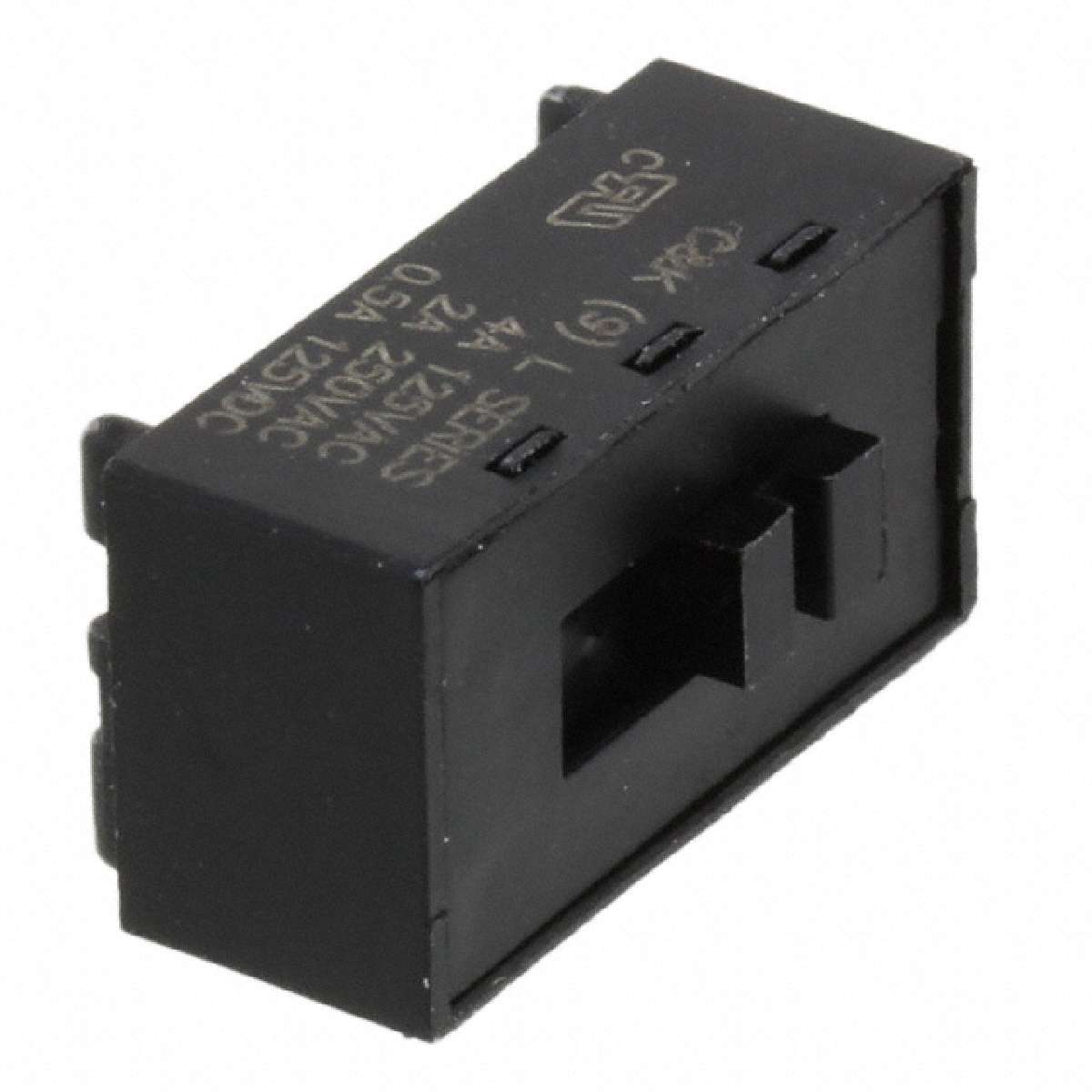

L Series SPST 4 A Screw Driver Slot PC Through Hole Miniature Slide Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-Off |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 10,000 Cycles |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Screwdriver Slot |
| Voltage Rating - AC | 125V |
| Contact Material | Copper |
| Series | L |
| Operating Temperature | -30°C ~ 65°C |
| Current Rating | 4A (AC/DC) |
| Contact Finish | Silver |
| Voltage Rating - DC | 28V |
| Mounting Type | Through Hole |
| Circuit | SPST |
| Actuator Length | 1.65mm |
| Packaging | Bulk |
| Switch Travel | 3.81mm |
| Family | Slide Switches |
| Contact Timing | Not Specified |
| ECCN | EAR99 |
