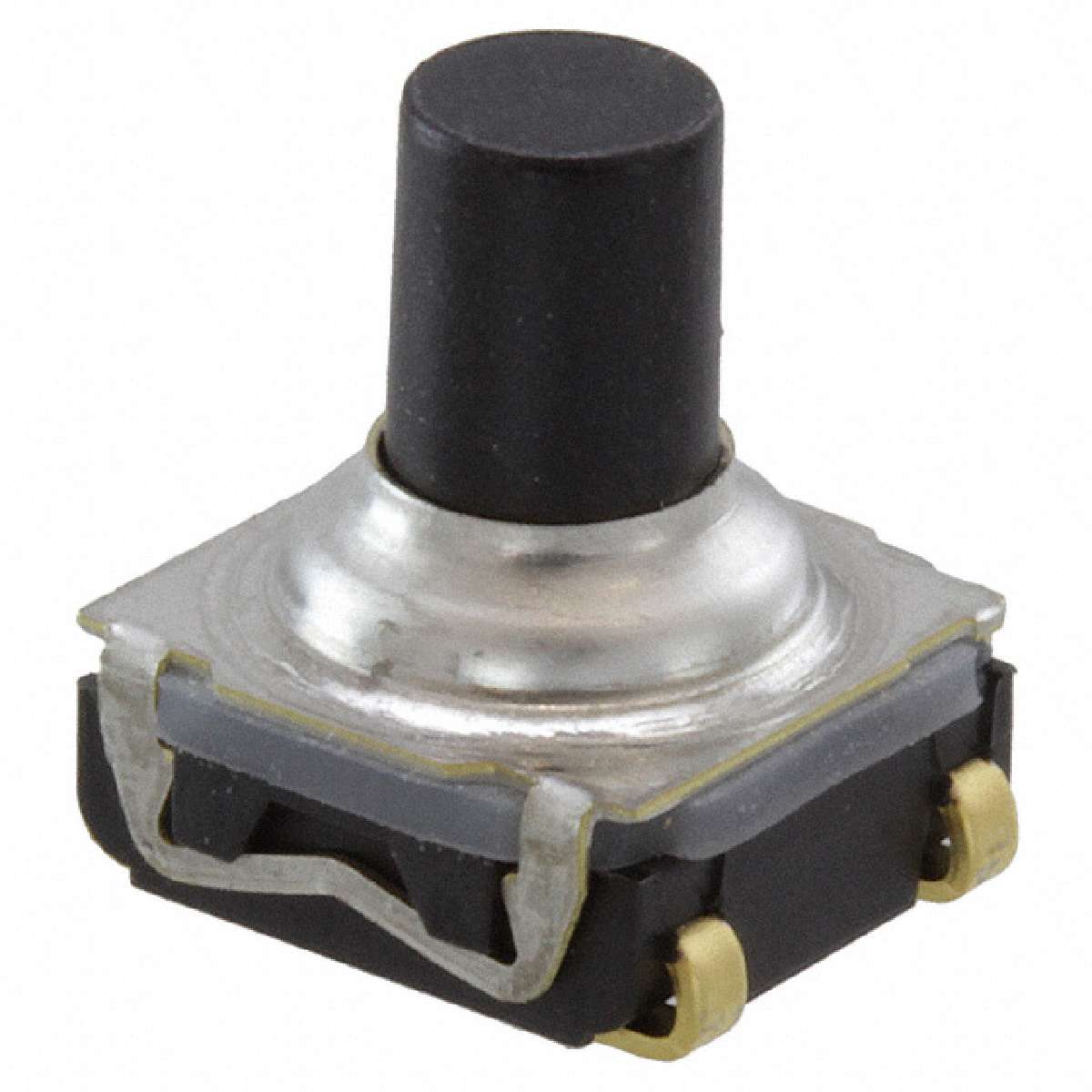

| KSC643JLFG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
KSC Series Sealed Tactile Switch
|
||
| 标准包装：950 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | Off-Mom |
|---|---|
| Actuator Height off PCB, from Pins | 7.70mm |
| Termination Style | J Lead |
| Mounting Type | Surface Mount |
| Actuator Type | Standard |
| Standard Package | 750 |
| Packaging | Tape & Reel (TR) |
| Switch Travel | 0.40mm |
| Mechanical Life | 300,000 Cycles |
| Outline | 6.20mm x 6.20mm |
| Operating Temperature | -40°C ~ 125°C |
| Actuator Orientation | Top Actuated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Force | 330gf |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.01A @ 32VDC |
| PCN Design/Specification | KSC6 Series 21/Jun/2013 KSC Series Marking 19/Sep/2014 |
| Illumination | Non-Illuminated |
| Series | KSC |
| Family | Tactile Switches |
| RoHS Information | RoHS Cert of Compliance |
| ECCN | EAR99 |
