| 576602B00000G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

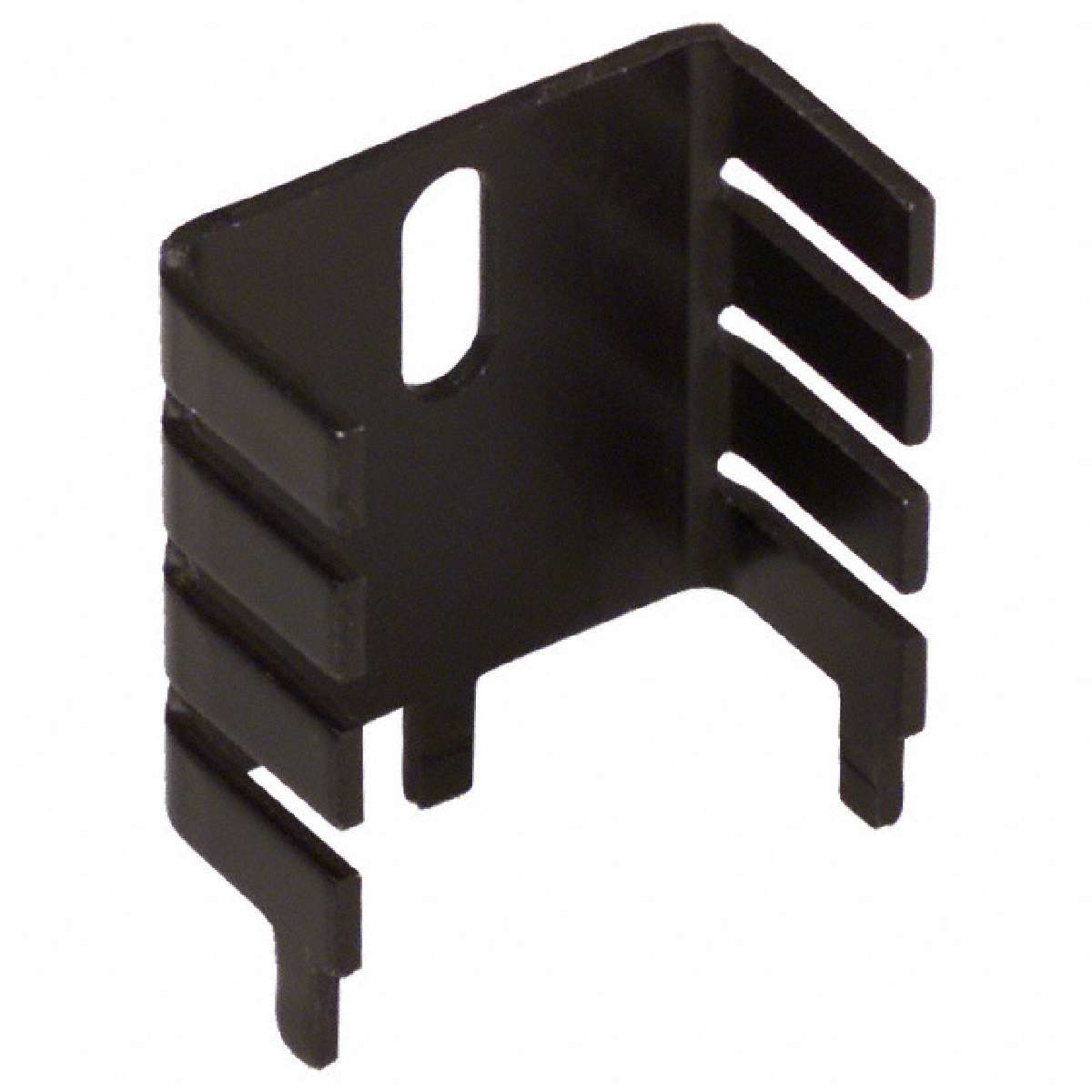

TO-220 Package 16.6 C/W Thermal Resistance 3 Integrated Tab Heat Sink
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | Board Level, Vertical |
|---|---|
| Package Cooled | TO-220 |
| Part Status | Active |
| Category | Fans, Thermal Management |
| Power Dissipation @ Temperature Rise | 1W @ 20°C |
| Length | 0.950" (24.13mm) |
| Family | Thermal - Heat Sinks |
| Width | 1.000" (25.40mm) |
| ECCN | EAR99 |
| Attachment Method | Bolt On and PC Pin |
| Material | Aluminum |
| Shape | Rectangular, Fins |
| Manufacturer | Aavid Thermalloy |
| Material Finish | Black Anodized |
| Thermal Resistance @ Forced Air Flow | 9.0°C/W @ 200 LFM |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) |
| Thermal Resistance @ Natural | 16.6°C/W |
