LB11685VH-TLM-H specifications -Ameya360 electronic components purchase network

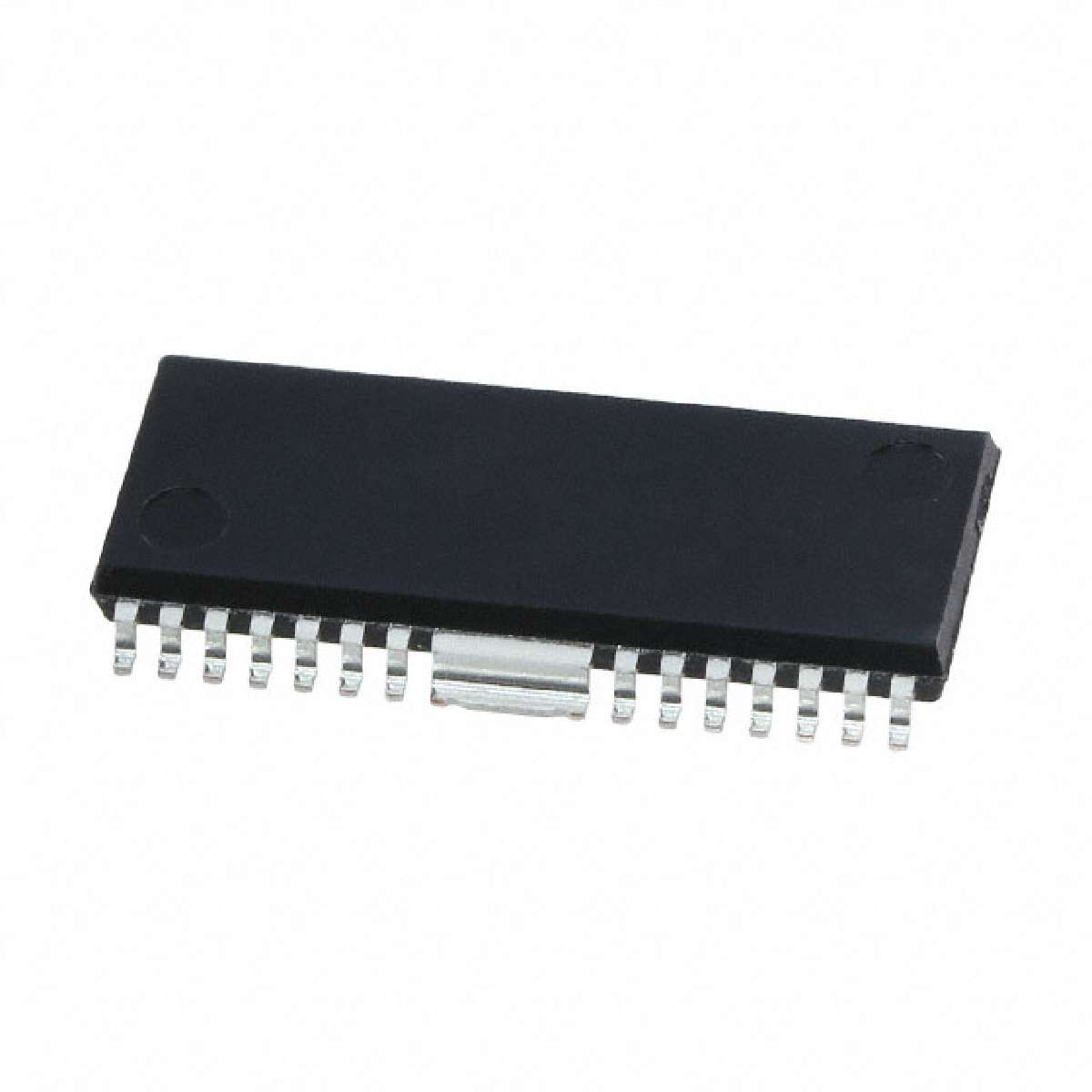

LB11685VH-TLM-H

ACTIVE 28-HSOP
Product description : Three-Phase Brushless DC Sensor-less Motor Driver
SPQ：1
Datasheet : --

Voltage - Supply	4.5 V ~ 18 V
Package / Case	28-SOP + 2 Wings Exposed Pad
Supplier Device Package	28-HSOP
Product Training Modules	Cooling Fan Motor Drivers
Voltage - Load	4.5 V ~ 18 V
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
Motor Type - AC, DC	Brushless DC (BLDC)
Output Configuration	3-Phase Bridge, (1) Single
Function	Driver - Fully Integrated, Control and Power Stage
Current - Output	1.2A
Interface	Parallel
Family	PMIC - Motor, Bridge Drivers
Applications	General Purpose
Packaging	Tape & Reel (TR)
RoHS	Lead free / RoHS Compliant
