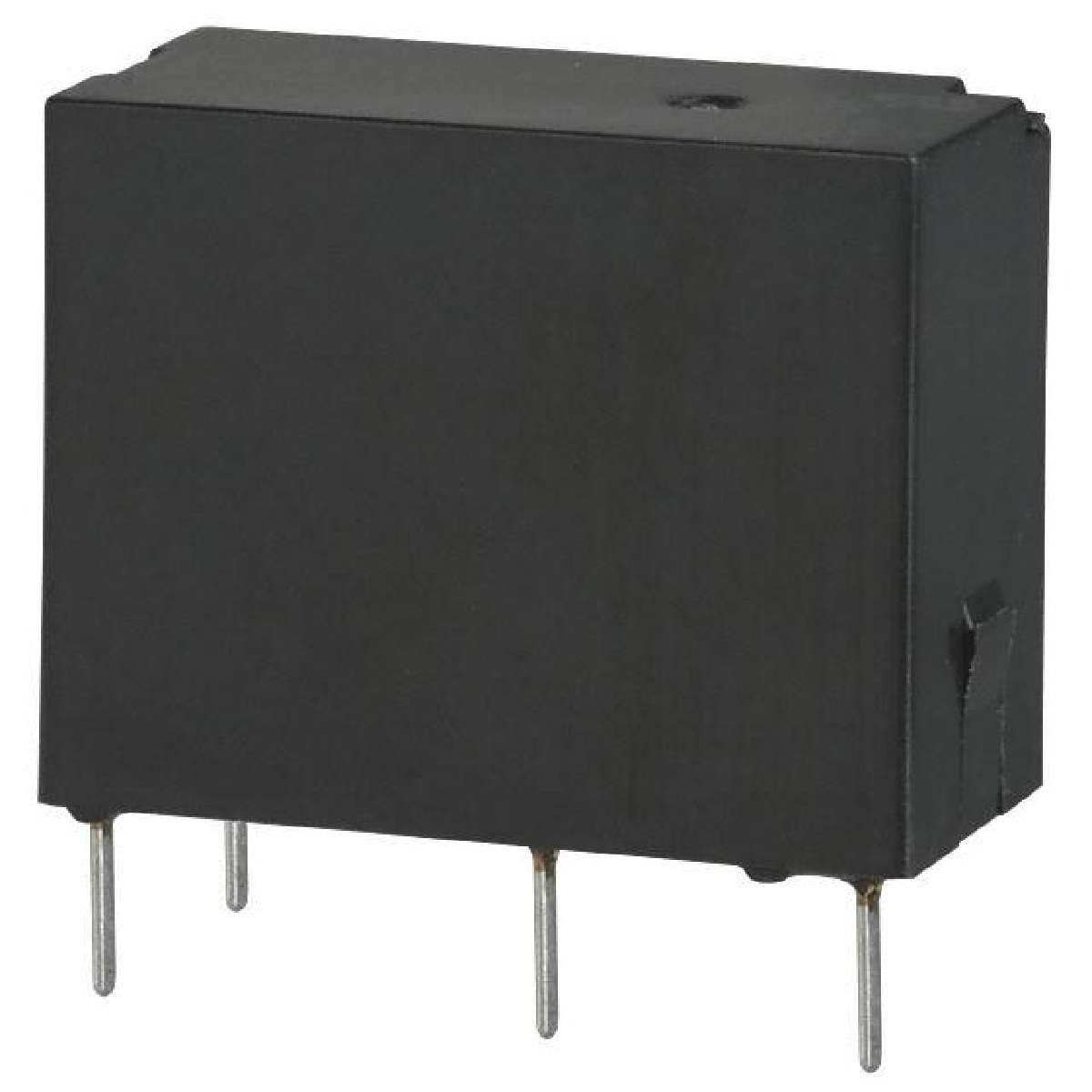

| JQ1AP-5V | ||
|---|---|---|
|
|
||
|
||
| Product description : JQ Series 10 A SPST 5 VDC Through Hole High Capacity Noise Immune Power Relay | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | SPST-NO (1 Form A) |
|---|---|
| Termination Style | PC Pin |
| Coil Type | Non Latching |
| Switching Voltage | 250VAC, 110VDC - Max |
| Coil Voltage | 5VDC |
| Contact Rating (Current) | 10A |
| Turn Off Voltage (Min) | 0.25 VDC |
| Operate Time | 5ms |
| Packaging | Bulk |
| Release Time | 2ms |
| Relay Type | General Purpose |
| Family | Power Relays, Over 2 Amps |
| ECCN | EAR99 |
| Coil Power | 200 mW |
| Turn On Voltage (Max) | 4 VDC |
| Other Related Documents | Standards Chart How to Read Date Codes |
| Coil Resistance | 125 Ohms |
| Mounting Type | Through Hole |
| Catalog Drawings | JQ Series PCB JQ1A Series Circuit JQ1A Series Footprint |
| Standard Package | 100 |
| Features | Insulation - Class E |
| Coil Current | 40mA |
| Contact Material | Silver Alloy |
| Series | JQ |
| Operating Temperature | -40掳C ~ 70掳C |
