| 6.3SEV220M6.3X5.5 | ||
|---|---|---|
|
|
||
|
||

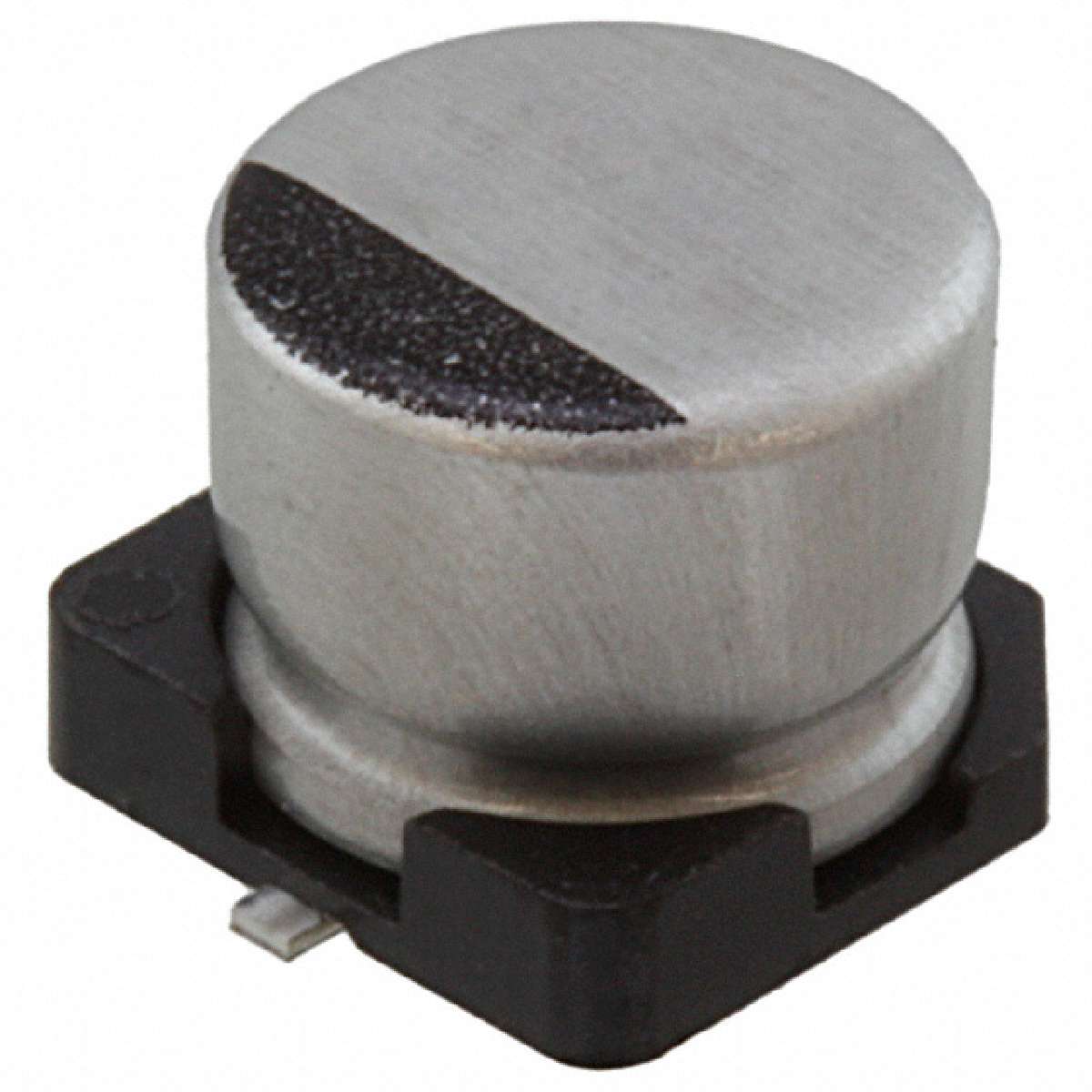

| Product description : CAP ALUM 220UF 20% 6.3V SMD | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Series | SEV |
| Applications | Automotive |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Digi-Reel® |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
| Voltage Rating | 6.3V |
| Capacitance | 220µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 96mA |
| Manufacturer | Rubycon |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
