| 6162.0159 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

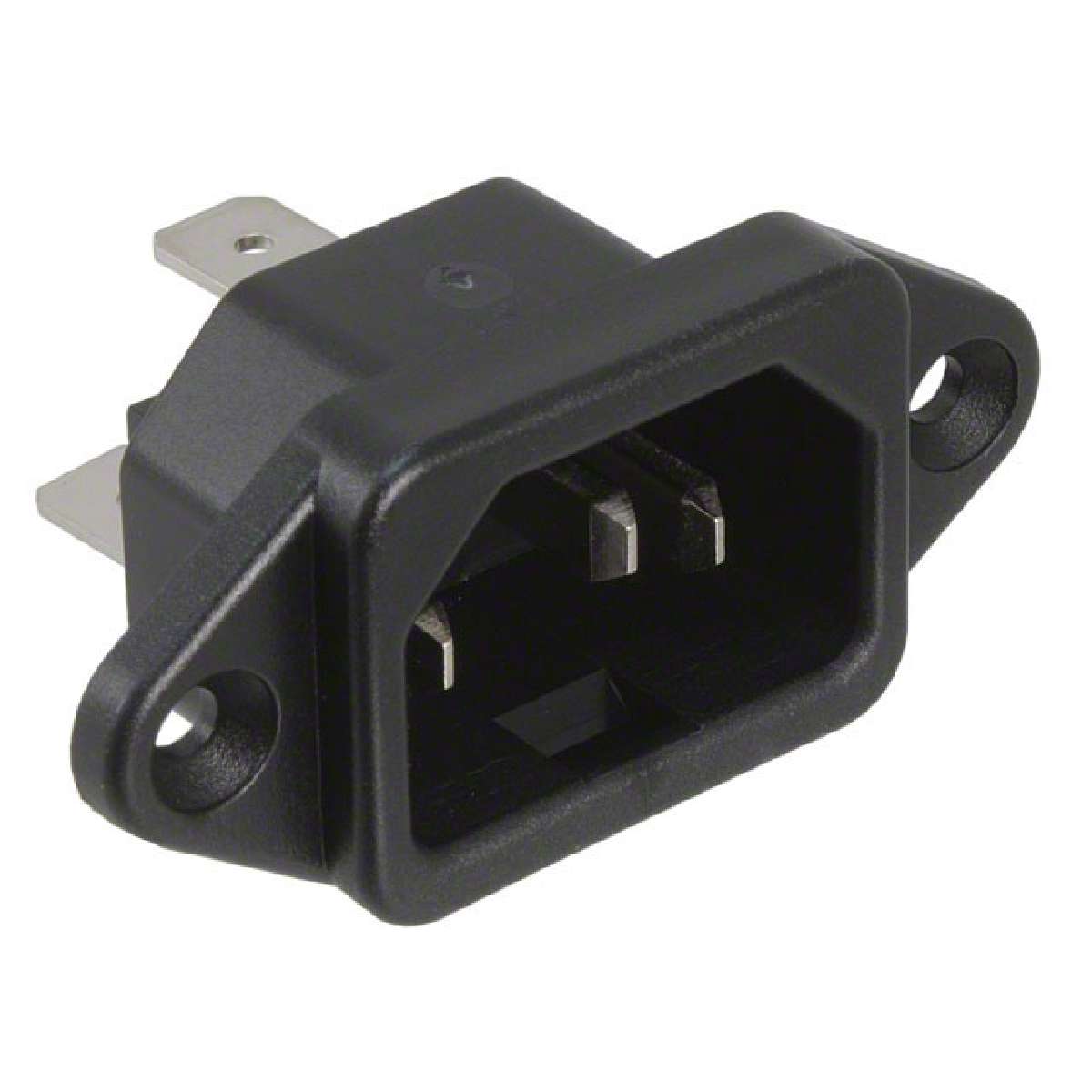

Connector: AC supply; socket; male; 10A; 250VAC; IEC 60320
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Quick Connect - 0.250" (6.3mm) |
|---|---|
| Fuse | No |
| Approvals | cCSAus, ENEC, UL |
| Features | V-Lock Notch |
| Manufacturer | Schurter Inc. |
| Voltage - UL | 250VAC |
| Number of Positions | 3 |
| Panel Cutout Dimensions | Rectangular - 27.60mm x 19.90mm |
| Voltage - IEC | 250VAC |
| Connector Type | Receptacle, Male Blades |
| Material Flammability Rating | UL94 V-0 |
| ECCN | EAR99 |
| Connector Style | IEC 320-C14 |
| Ingress Protection | IP20 |
| Current - IEC | 10A |
| Part Status | Active |
| Category | Connectors, Interconnects |
| Series | 6061 |
| Family | Power Entry Connectors - Inlets, Outlets, Modules |
| Mounting Type | Panel Mount, Flange |
| Filter Type | Unfiltered - Commercial |
| Current - UL | 15A |
| Packaging | Bulk |
