| IL4118-X017T | ||
|---|---|---|
|
|
||
|
||

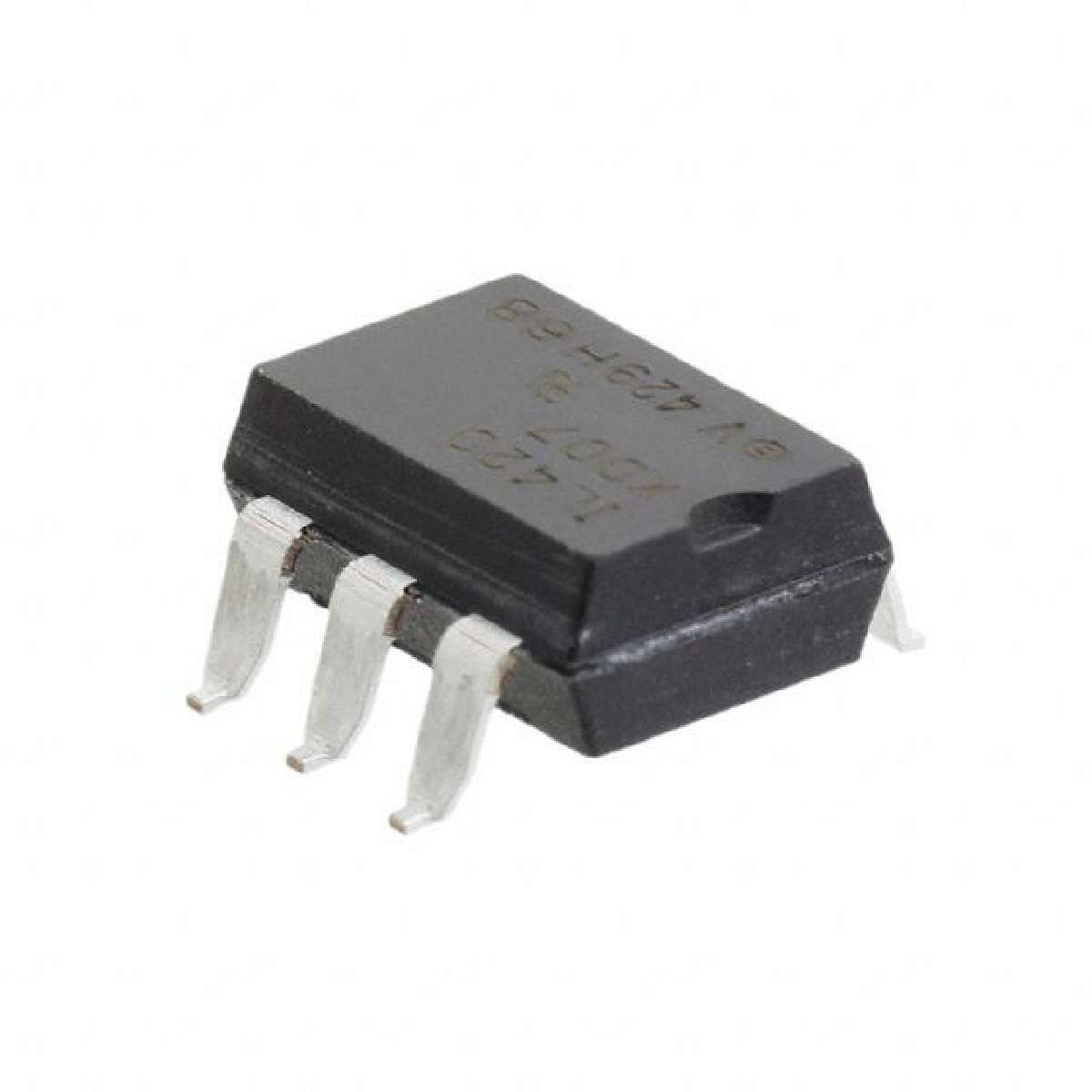

| Product description : OPTOISOLATOR 5.3KV TRIAC | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 5300Vrms |
|---|---|
| Supplier Device Package | * |
| Standard Package | 1,000 |
| Approvals | BSI, cUR, FIMKO, UR, VDE |
| Current - Hold (Ih) | 200µA |
| Output Type | Triac |
| Current - On State (It (RMS)) (Max) | 300mA |
| Family | Optoisolators - Triac, SCR Output |
| Operating Temperature | -55°C ~ 100°C |
| Static dV/dt (Min) | 10kV/µs |
| ECCN | EAR99 |
| Package / Case | 6-SMD |
| Zero Crossing Circuit | Yes |
| Turn On Time | 35µs |
| Packaging | Tape & Reel (TR) |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Current - DC Forward (If) (Max) | 60mA |
| Mounting Type | Surface Mount |
| Current - LED Trigger (Ift) (Max) | 1.3mA |
| Voltage - Off State | 800V |
