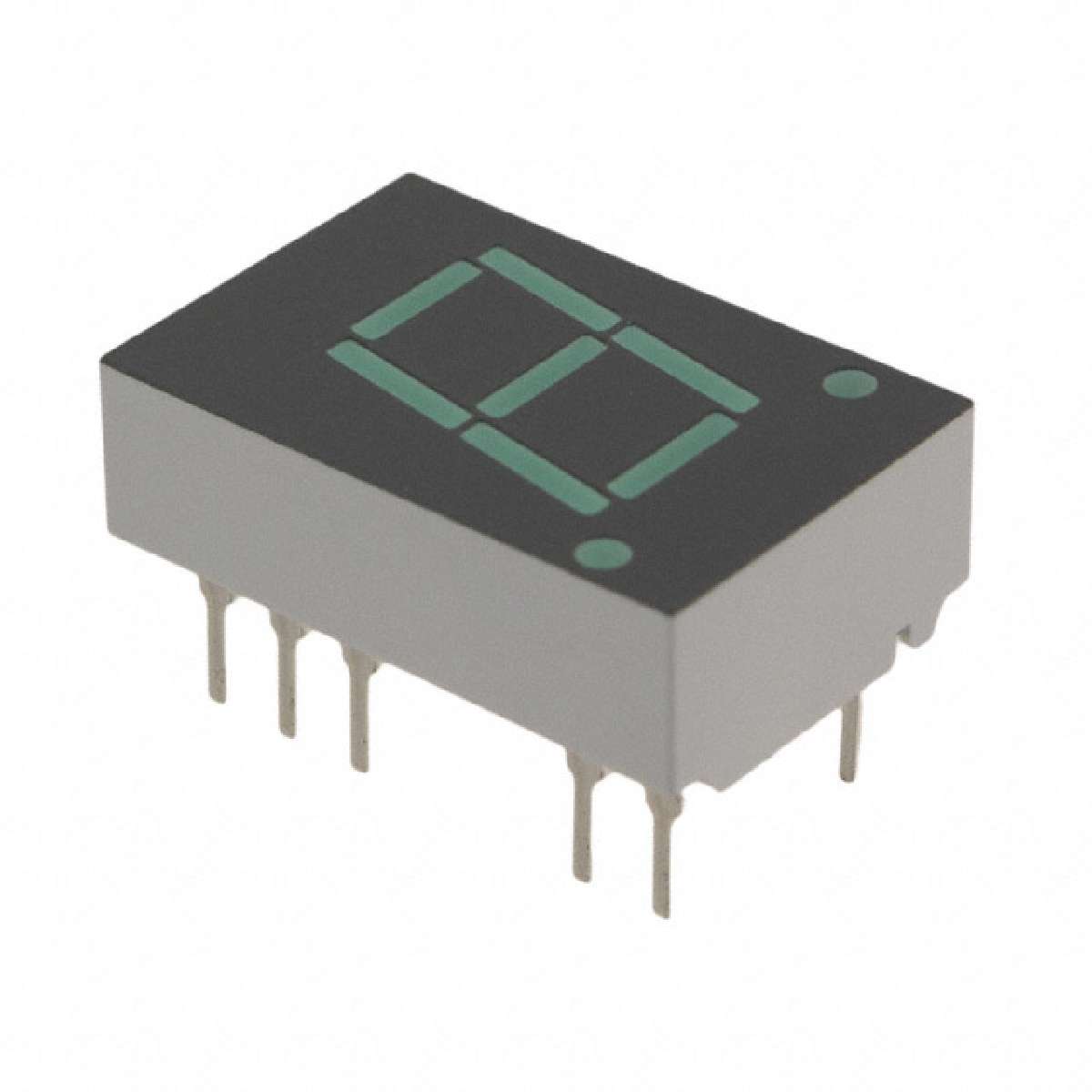

| HDSP-4603 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
LED 7-SEG 10.9MM CC GREEN RHD
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Characters | 1 |
|---|---|
| Package / Case | 14-DIP (0.300", 7.62mm), 10 Leads |
| Standard Package | 200 |
| Color | Green |
| Digit/Alpha Size | 0.43" (11.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Wavelength - Peak | 566nm |
| Common Pin | Common Cathode |
| Power Dissipation (Max) | 105mW |
| Catalog Drawings | 5082, HDSP_12.70 x 19.05 x 10.92 |
| PCN Design/Specification | Alternate Scrambler/Painter 12/Nov/2014 |
| Size / Dimension | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) |
| Display Type | 7-Segment |
| Current - Test | 10mA |
| Family | Display Modules - LED Character and Numeric |
| Millicandela Rating | 4mcd |
