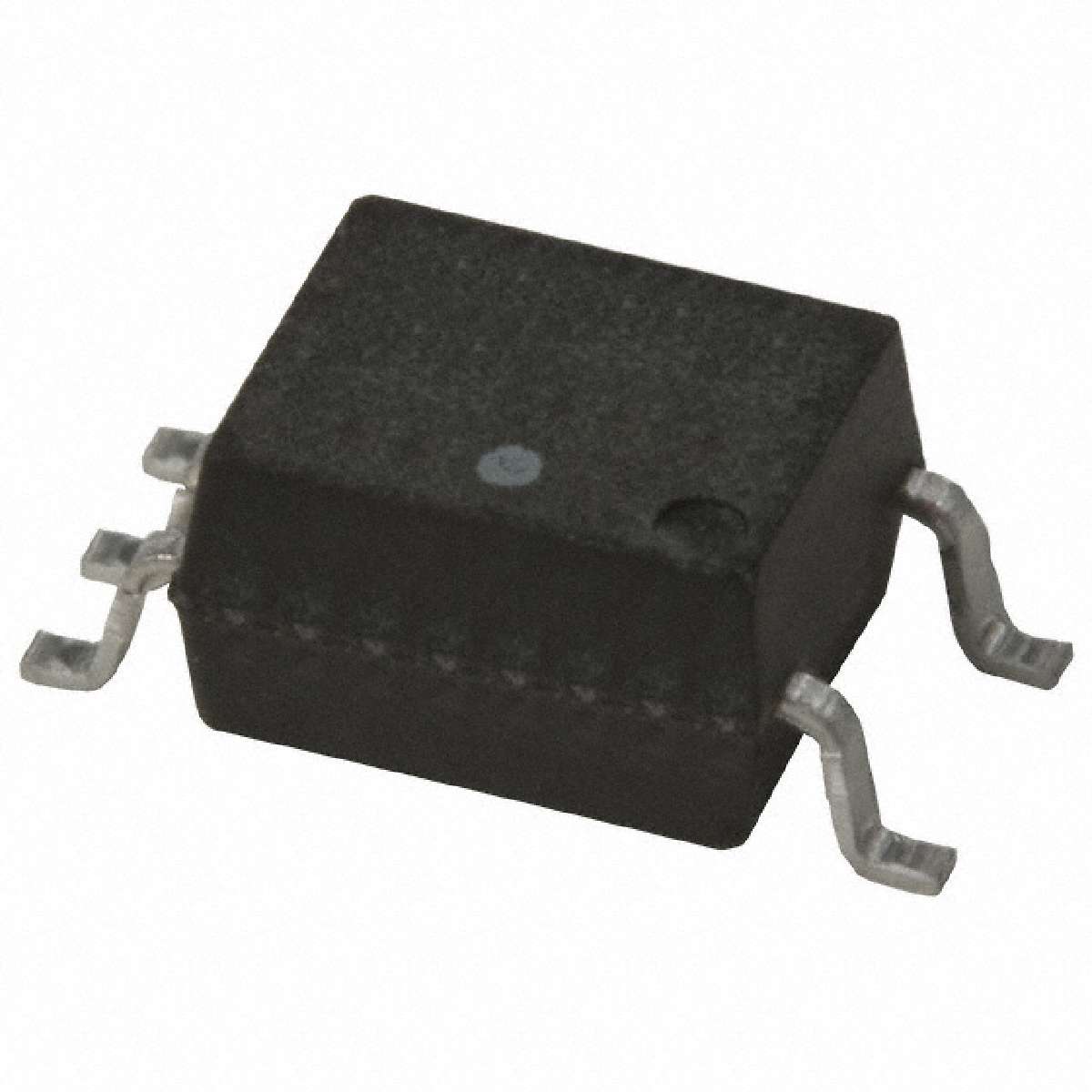

| HCPL-M701-500E | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
OPTOISO 3.75KV DARLINGTON 6SOIC
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 3750Vrms |
|---|---|
| PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 |
| Voltage - Output (Max) | 18V |
| Current - DC Forward (If) (Max) | 20mA |
| Input Type | DC |
| Current - Output / Channel | 60mA |
| Standard Package | 1,500 |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Operating Temperature | -40°C ~ 85°C |
| Current Transfer Ratio (Min) | 300% @ 1.6mA |
| Turn On / Turn Off Time (Typ) | 0.5µs, 1µs |
| Current Transfer Ratio (Max) | 2600% @ 1.6mA |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width) 5 Leads |
| Supplier Device Package | 5-SO |
| Packaging | Tape & Reel (TR) |
| Output Type | Darlington |
| Family | Optoisolators - Transistor, Photovoltaic Output |
