ECA-1CM102B | ||
---|---|---|
|
||
|
||
产品描述:

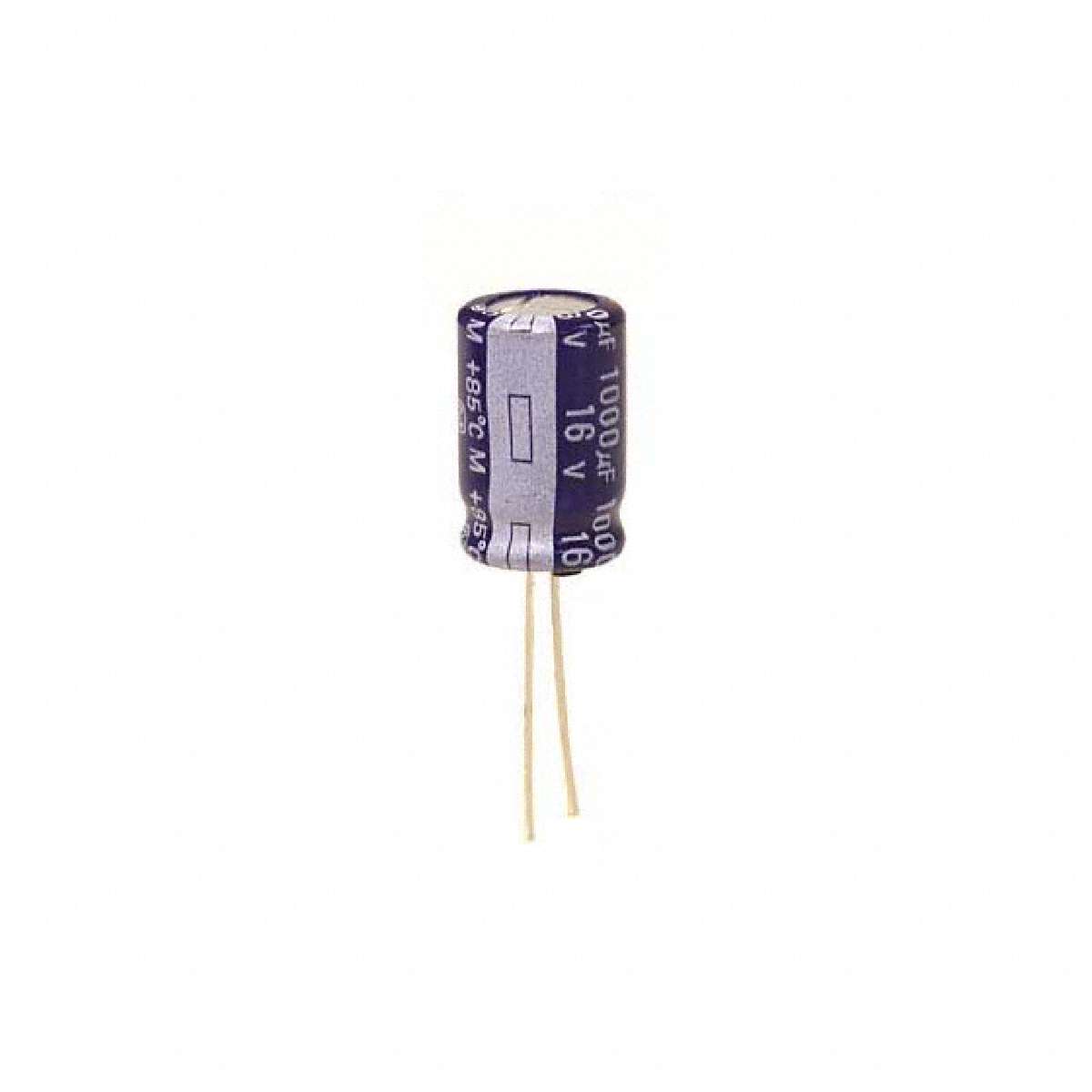

ECA-M Series 16 V 1000 uF Ø 10 x 16 mm LS=5 mm 85 °C Radial Electrolytic
|
||
标准包装:500 | ||
数据手册: -- |
Voltage Rating | 16V |
---|---|
Lead Spacing | 0.197" (5.00mm) |
Size / Dimension | 0.394" Dia (10.00mm) |
Applications | General Purpose |
Packaging | Tape & Box (TB) |
Capacitance | 1000µF |
Ripple Current | 680mA |
Series | M |
Lifetime @ Temp. | 2000 Hrs @ 85°C |
RoHS | Lead free / RoHS Compliant |
Tolerance | ±20% |
Product Training Modules | LED Lighting Components |
Height - Seated (Max) | 0.669" (17.00mm) |
Mounting Type | Through Hole |
Package / Case | Radial, Can |
Catalog Drawings | M Series_10 x 16 x 5 x 0.6 |
Online Catalog | M Series |
Family | Aluminum Capacitors |
Operating Temperature | -40°C ~ 85°C |
