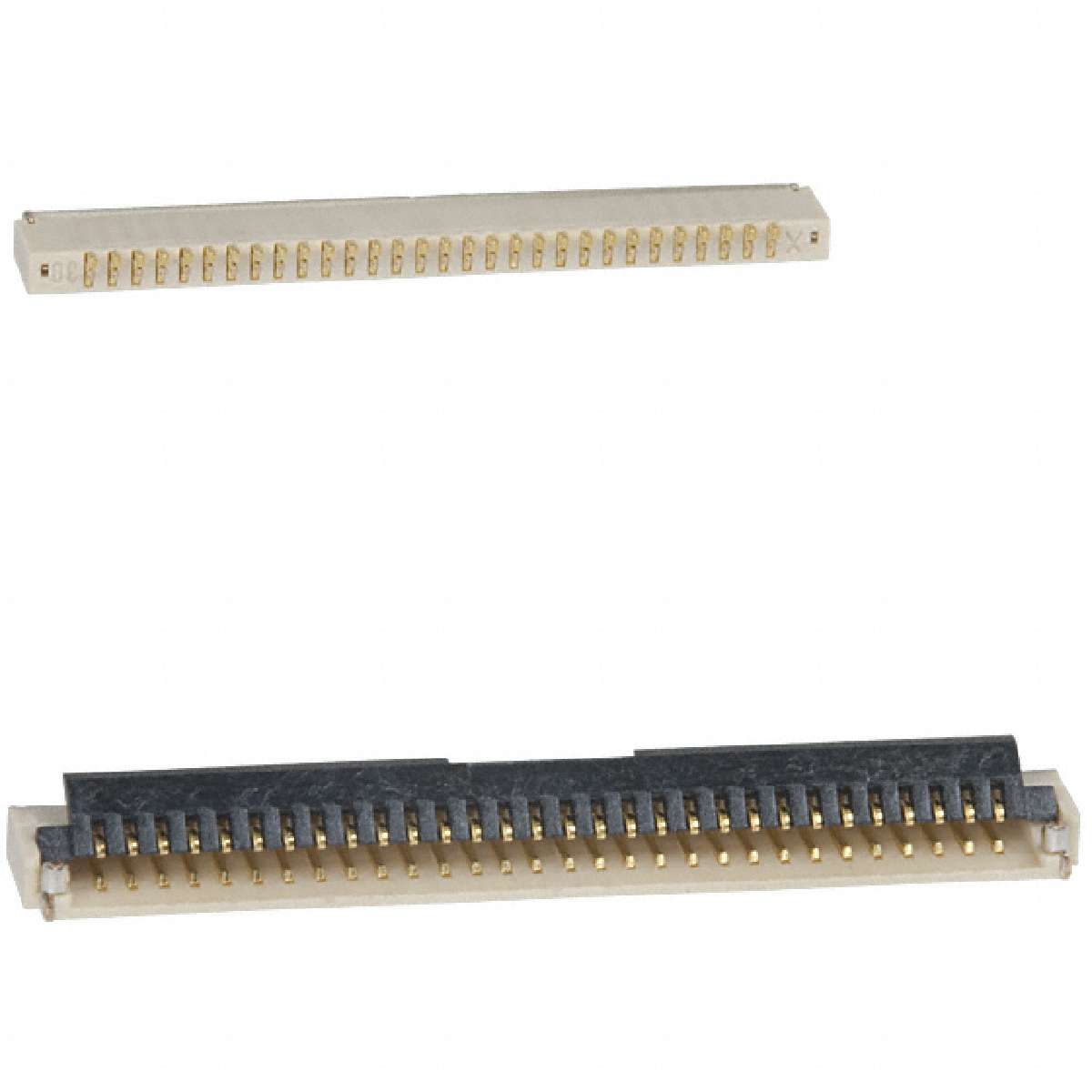

| FH19SC-30S-0.5SH(99) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
CONN FFC BOTTOM 30POS 0.50MM R/A
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 50V |
|---|---|
| FFC, FCB Thickness | 0.30mm |
| Mounting Type | Surface Mount, Right Angle |
| Locking Feature | Flip Lock |
| Actuator Material | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| Termination | Solder |
| Cable End Type | Tapered |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Material | Phosphor Bronze |
| Series | FH19SC |
| Operating Temperature | -55°C ~ 85°C |
| Pitch | 0.020" (0.50mm) |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 V-0 |
| Height Above Board | 0.037" (0.95mm) |
| Flat Flex Type | FFC, FPC |
| Standard Package | 500 |
| Packaging | Tape & Reel (TR) |
| Number of Positions | 30 |
| Family | FFC, FPC (Flat Flexible) Connectors |
| Current Rating | 0.5A |
| 数据手册： |
|---|
