| 74AHC04T14-13 | ||
|---|---|---|
|
|
||
|
||

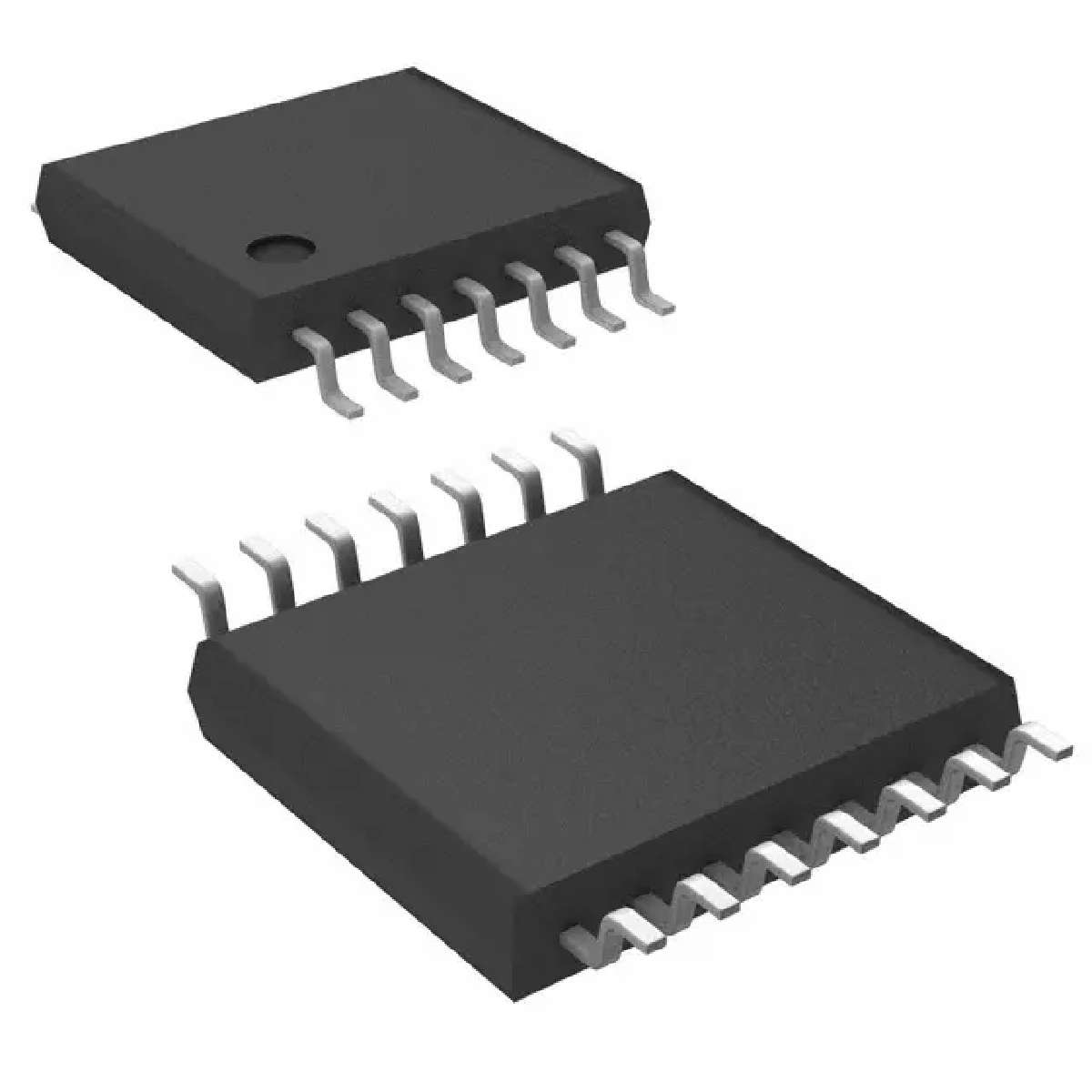

| Product description : 74AHC Series 5.5 V Surface Mount HEX Inverter - TSSOP-14 | ||
| SPQ：2500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
|---|---|
| Voltage - Supply | 2 V ~ 5.5 V |
| Logic Type | Inverter |
| Part Status | Active |
| Manufacturer | Diodes Incorporated |
| Number of Circuits | 6 |
| Number of Inputs | 6 |
| Family | Logic - Gates and Inverters |
| Operating Temperature | -40°C ~ 125°C |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Logic Level - Low | 0.5 V ~ 1.65 V |
| Category | Integrated Circuits (ICs) |
| Logic Level - High | 1.5 V ~ 3.85 V |
| Series | 74AHC |
| Current - Output High, Low | 8mA, 8mA |
| Mounting Type | Surface Mount |
| Current - Quiescent (Max) | 20µA |
| ECCN | EAR99 |
