| FFB1224EHE-F00 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

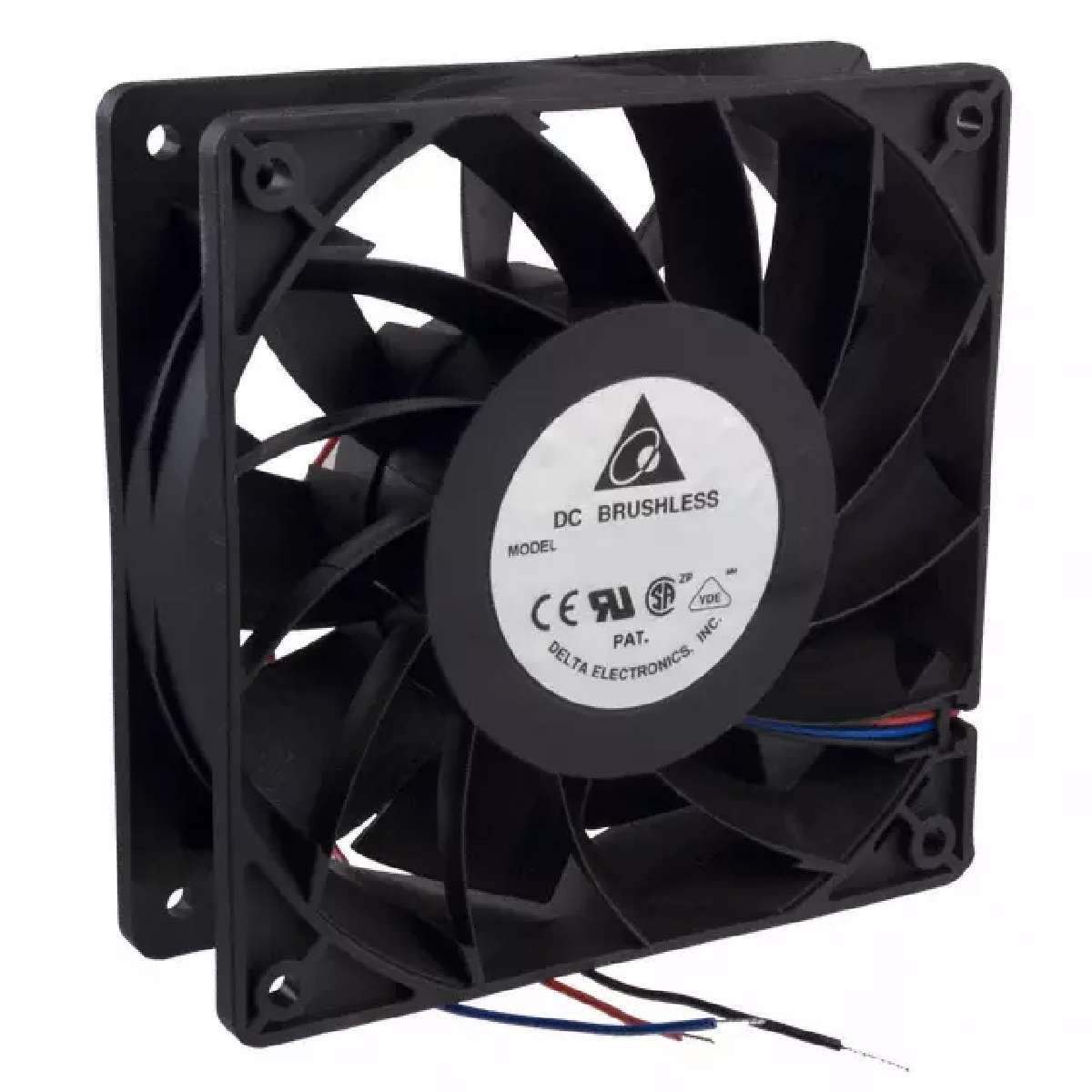

FFB Series 4000 RPM 120 x 120 x 38 mm 190 CFM 24 V Ball Bearing Fan
|
||
| 标准包装：36 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product Training Modules | Fan Options |
|---|---|
| Other Related Documents | Part Number Break-Down and Other Notes |
| Air Flow | 190.0 CFM (5.38m³/min) |
| Power (Watts) | 24.0W |
| Fan Type | Tubeaxial |
| Static Pressure | 0.700 in H2O (174.4 Pa) |
| Standard Package | 36 |
| Voltage Range | 14 ~ 26.4VDC |
| Noise | 59 dB(A) |
| Family | DC Fans |
| RoHS Information | DC Fans RoHS Cert of Compliance |
| ECCN | EAR99 |
| Size / Dimension | Square - 120mm L x 120mm H x 38mm W |
| Material - Frame | Plastic |
| Weight | 0.816 lb (370.13g) |
| Bearing Type | Ball |
| Termination | 3 Wire Leads |
| Material - Blade | Plastic |
| Features | Speed Sensor (Tach) |
| Voltage - Rated | 24VDC |
| Series | FFB |
| RPM | 4000 RPM |
| Current Rating | 1A |
