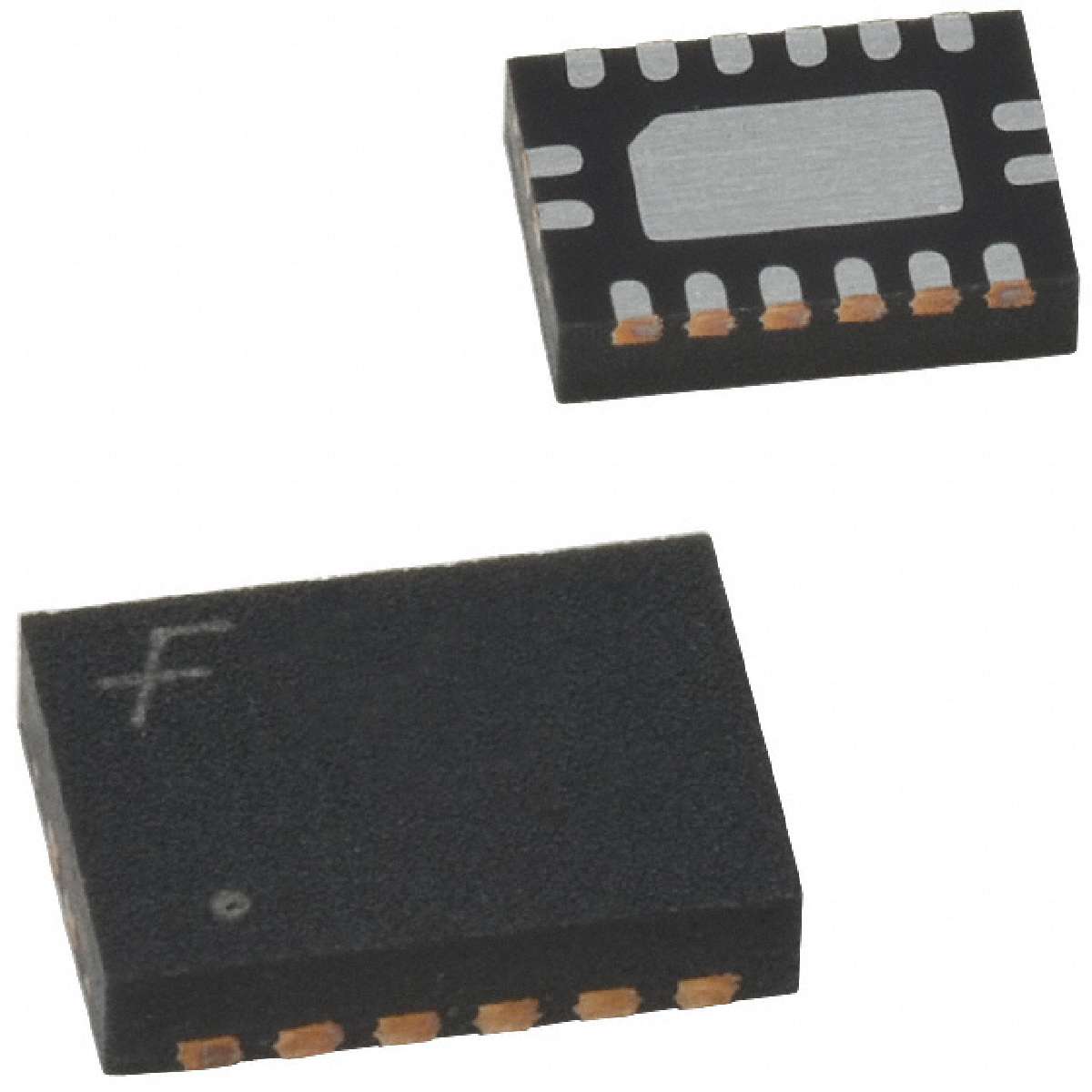

74LCX138BQX

ACTIVE EAR99
Product description : 74LCX Series 3.6 V 24 mA SMT Low Voltage 1-of-8 Decoder/Demultiplexer - DQFN-16
SPQ：3000
Datasheet : 74LCX138BQX.pdf

Width:	2.5 mm
Output Voltage:	- 0.5 V to + 0.5 V
Function:	1 of 8 Decoder/ Demultiplexer with
Minimum Operating Temperature:	- 40 C
Number of Output Lines:	8 Output
Package / Case:	DQFN-16
High Level Output Current:	- 24 mA
Supply Voltage - Max:	3.6 V
Mounting Style:	SMD/SMT
Output Current:	+ 50 mA
Length:	3.5 mm
Operating Supply Voltage:	2 V to 3.6 V
Brand:	Fairchild Semiconductor
RoHS:	Details
Low Level Output Current:	24 mA
Maximum Operating Temperature:	+ 85 C
ECCN	EAR99
Product:	Decoders / Demultiplexers
Packaging:	Reel
Logic Family:	74LC
Technology:	CMOS
Supply Voltage - Min:	2 V
Logic Type:	Decoders/Demultiplexers
Height:	0.75 mm
Unit Weight:	0.004339 oz
Number of Circuits:	Quad
Number of Input Lines:	1 Input
Manufacturer:	Fairchild Semiconductor
Factory Pack Quantity:	3000
Part # Aliases:	74LCX138BQX_NL
Supply Current - Max:	0.01 mA
Product Category:	Encoders, Decoders, Multiplexers & Demultiplexers
Input Voltage:	- 0.5 V to + 7.0 V

Datasheet： 74LCX138BQX.pdf
