F-8X | ||
---|---|---|
|
||
|
||
产品描述:

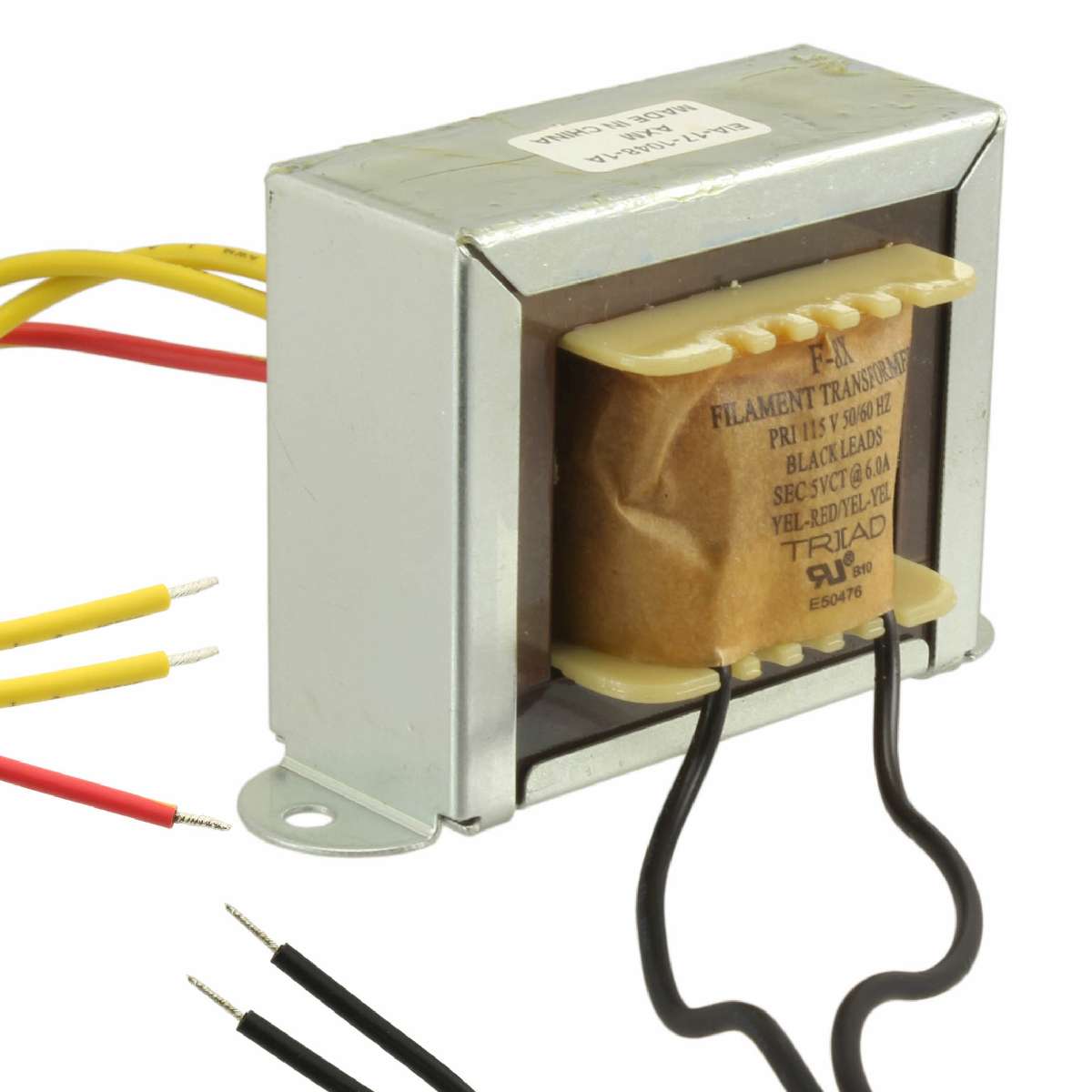

POWER XFMR 5.0Vct@6.0A 115V CHASSIS MOUNT w/LEADS/F-8X REV P
|
||
标准包装:16 | ||
数据手册: |
Voltage - Isolation | 1500Vrms |
---|---|
Voltage - Secondary (Full Load) | 5V |
Type | Laminated Core |
Center Tap | Yes |
Size / Dimension | 95.25mm L x 53.97mm W |
Voltage - Primary | 115V |
Manufacturer | Triad Magnetics |
Secondary Winding(s) | Single |
Mounting Type | Chassis Mount |
Primary Winding(s) | Single |
Power - Max | 30 VA |
Current - Output (Max) | 6A |
Termination Style | Wire Leads |
Part Status | Active |
Category | Transformers |
Height - Seated (Max) | 57.94mm |
Family | Power Transformers |
ECCN | EAR99 |
数据手册: |
---|
