| F-214U | ||
|---|---|---|
|
|
||
|
||

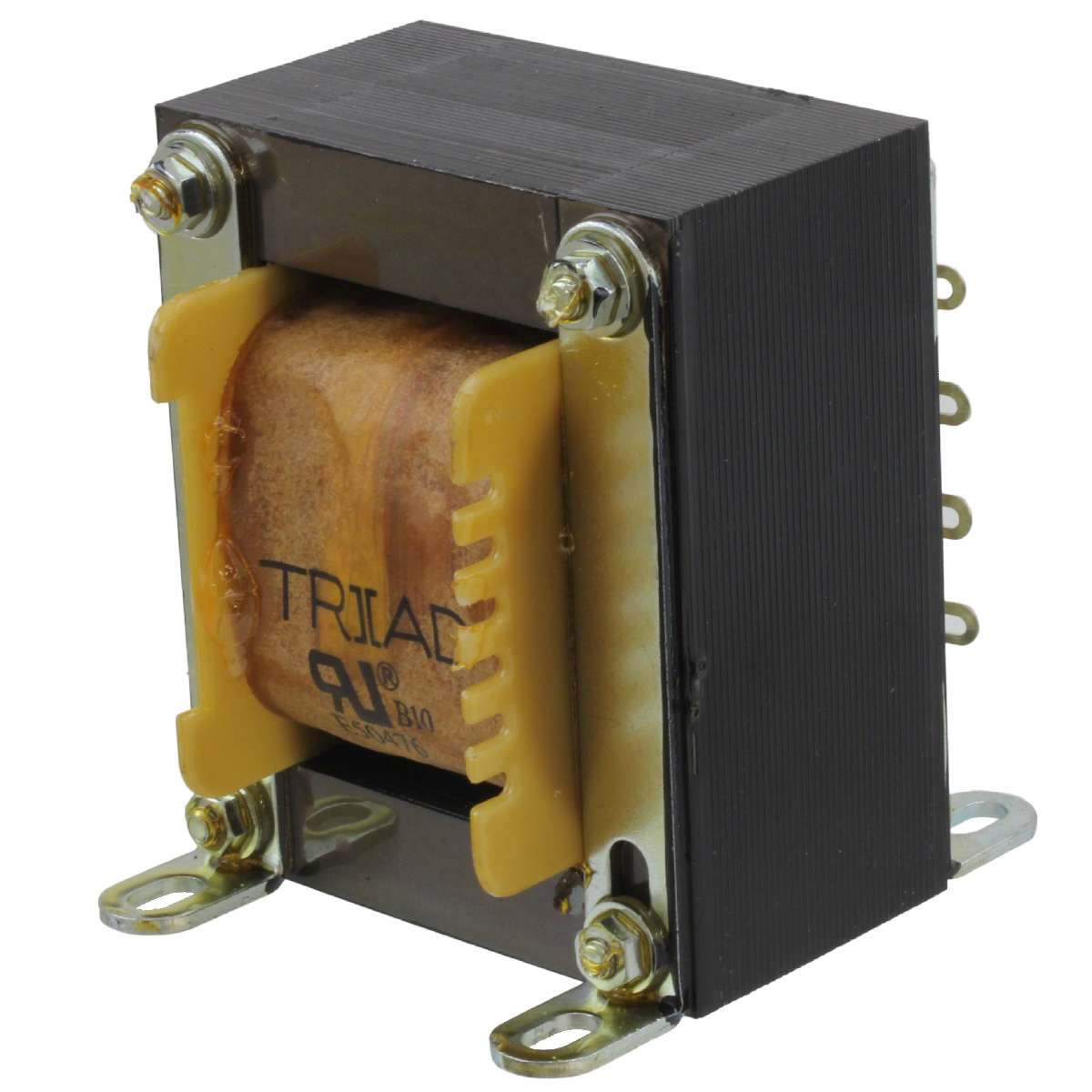

| Product description : POWER XFMR 48.0Vct@2.0A 115/230V CHASSIS MOUNT w/LUGS | ||
| SPQ：8 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 1500Vrms |
|---|---|
| Voltage - Secondary (Full Load) | Parallel 24V, Series 48V |
| Type | Laminated Core |
| Center Tap | No |
| Size / Dimension | 80.95mm L x 71.42mm W |
| Voltage - Primary | 115V, 230V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Dual |
| Mounting Type | Chassis Mount |
| Primary Winding(s) | Single |
| Power - Max | 96 VA |
| Current - Output (Max) | Parallel 4A, Series 2A |
| Termination Style | Solder Lug |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 86.51mm |
| Family | Power Transformers |
| ECCN | EAR99 |
