| 76HPSB10GWRT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

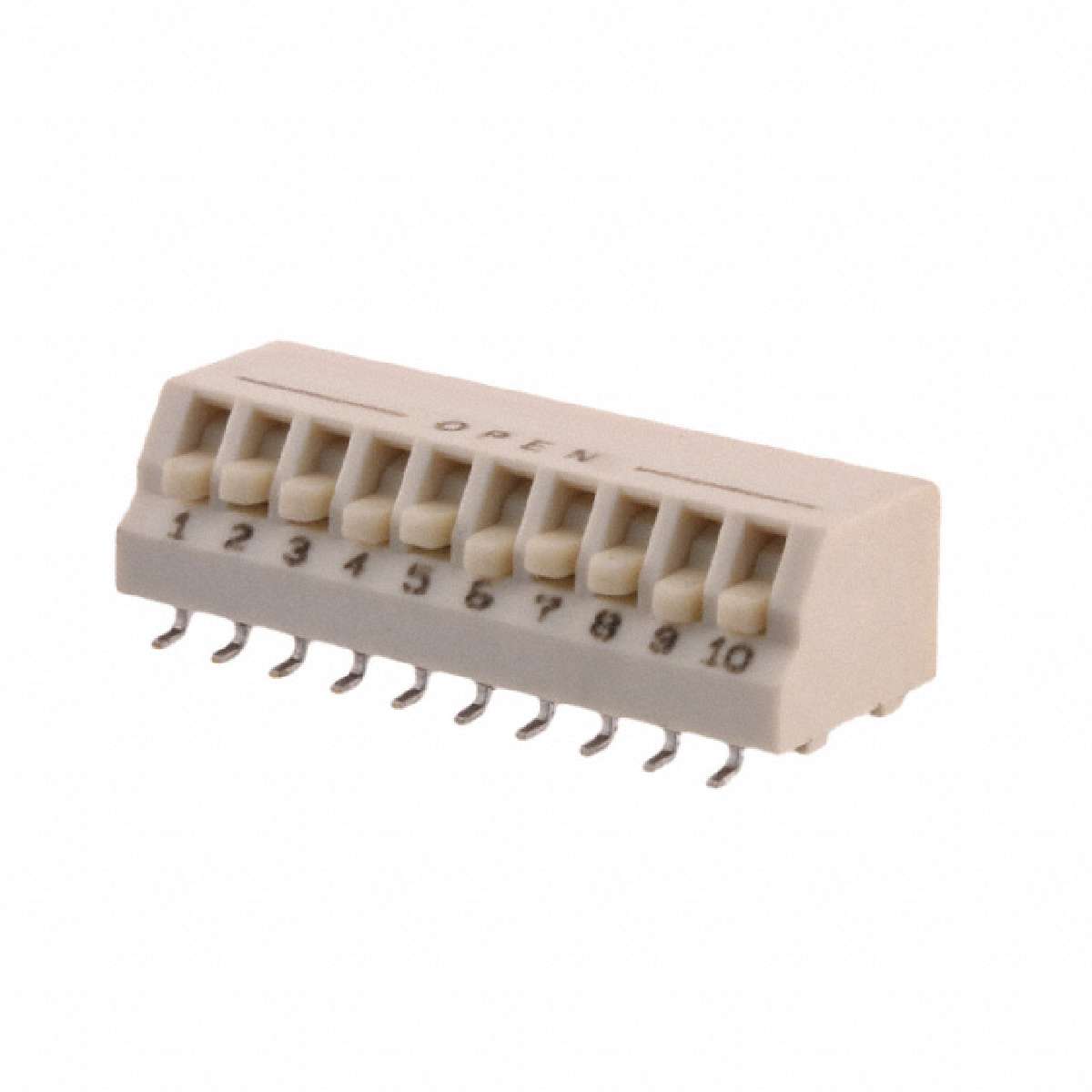

76HP Series SPST 10 Position Gull Wing Right Angle Piano-Dip Switch
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination Style | Gull Wing |
|---|---|
| Voltage Rating | 30VDC |
| Electrical Life | 2,000 Cycles |
| Washable | No |
| Packaging | Cut Tape (CT) |
| Circuit | SPST |
| Part Status | Active |
| Contact Material | Copper Alloy |
| Length | 1.080" (27.43mm) |
| Number of Positions | 10 |
| Family | DIP Switches |
| Current Rating | 150mA |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Body Material | Thermoplastic |
| Manufacturer | Grayhill Inc. |
| Mounting Type | Surface Mount, Right Angle |
| Height Above Board | 0.337" (8.56mm) |
| Actuator Type | Piano |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 2,000 Cycles |
| Series | 76HP |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
